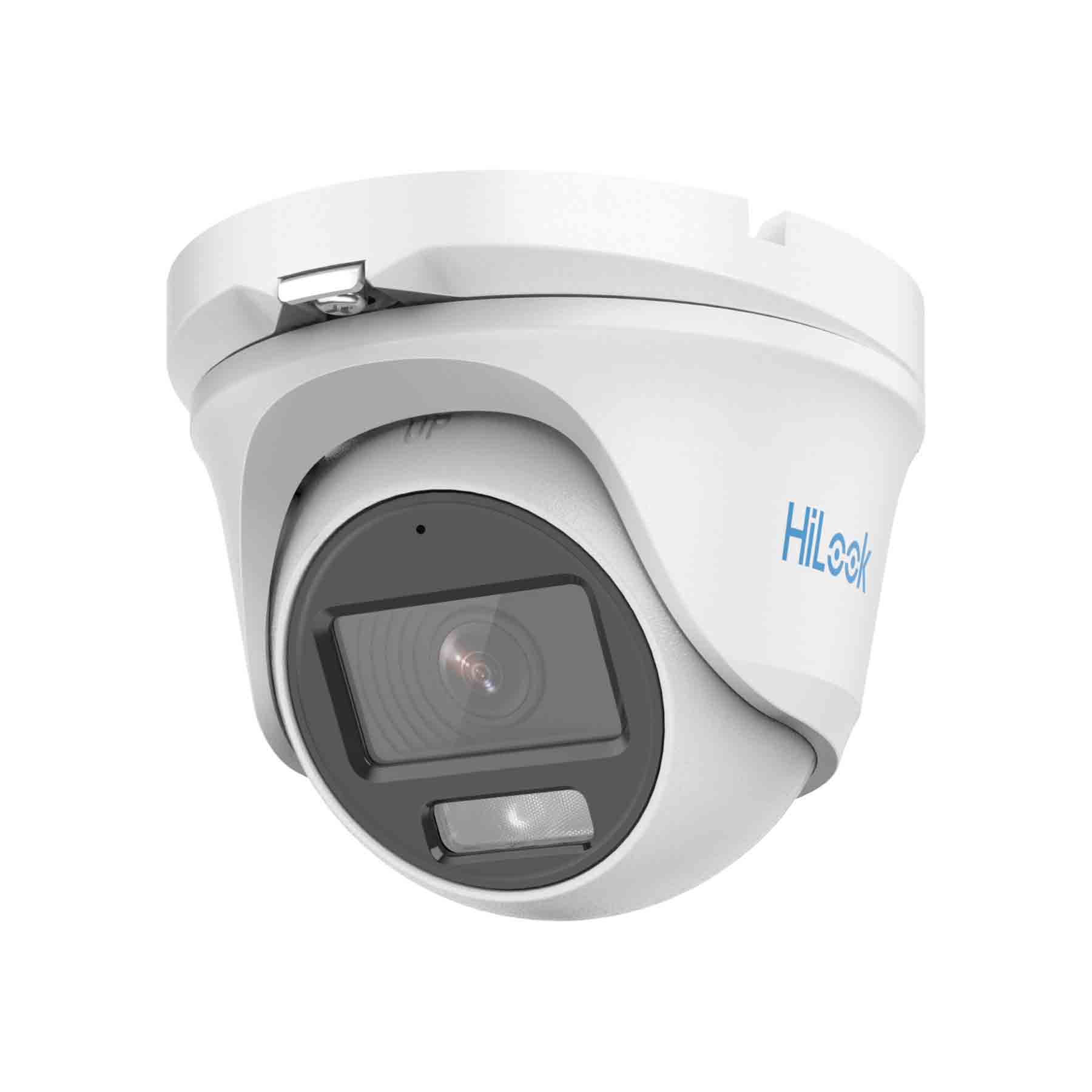

HiLook by Hikvision ColorVu Lite THC-T159-MS 5MP 3K Full Time 24/7 Colour (White Light) Turret Camera with Built in Mic (AoC ONLY)

Product ID THC-T159-MS
0 reviews | Write a review
£44.40
In Stock 0
£44.40
3 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 5MP (3K), 2960 x 1665 resolution
  • 24/7 color imaging with F1.0 aperture
  • High quality audio with audio over coaxial cable
  • 2.8mm fixed lens - FOV: 113°
  • Up to 20m white light distance for bright night imaging
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP66

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor 3K CMOS
Signal System PAL/NTSC
Resolution 2960 (H) × 1665 (V)
Frame Rate TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps
AHD: 4 MP @ 25 fps/30 fps
CVI: 4 MP @ 25 fps/30 fps
CVBS: PAL/NTSC
Min. illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm fixed lens
Horizontal Field of View 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night 24/7 Color Imaging
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
White Light Auto/ Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR,BLC,HLC,Global
Noise Reduction 2D DNR
Language English
Function Brightness, Sharpness, Anti-Banding
Lighting Mode White Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption Max. 2.9 W
Protection Level IP66
Material Metal
White Light Range Up to 20 m

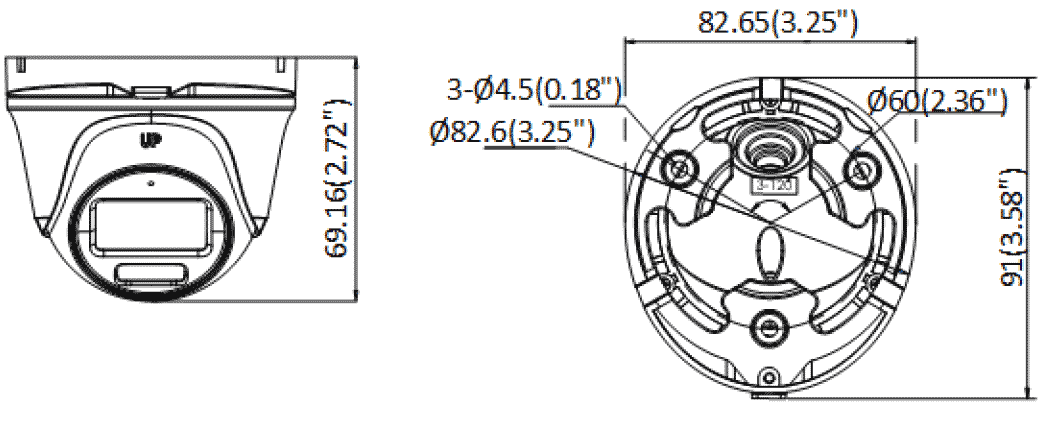

Dimensions Φ 82.65 mm × 91.0 mm × 69.16 mm
Weight Approx. 243g (0.53 lb)
