| Specification |
| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
Digital WDR |
| Angle Adjustment |
Pan: 0° to 360°, tlt: 0° to 75°, rotate: 0° to 360° |
| Lens |
| Focal length |
2.8 mm |
| Aperture |
F1.0 |
| Focus |
Fixed |
| FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° |
| Lens Mount |
M12 |
| Depth of Focus |
2.8 mm: 1.7 m to ∞ |
| Illuminator |
| Smart Supplement Light |
Yes |
| Supplement Light |
White |
| White Light Range |
Up to 30 m |
| Compression Standard |
| Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
BaseLine Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host |
Up to 32 users; 3 levels: Administrator, Operator and User |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
Client |
HiLookVision PC Client, HiLookVision App |
| Web Browser |
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Enhancement |
BLC/3D DNR/HLC |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Interface |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) |
| Basic Event |
Motion detection, exception (illegal login) |
| General |
| Linkage Method |
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger
capture
*Note: External device is required. |
| Web Client Language |
English |
| General Function |
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Software Reset |
Reset via web browser and client software |
| Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Consumption |
12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5 W |
| Protection Level |
Ingression protection: IP67 (IEC 60529-2013) |
| Material |
Main body: metal; enclosure: plastic |

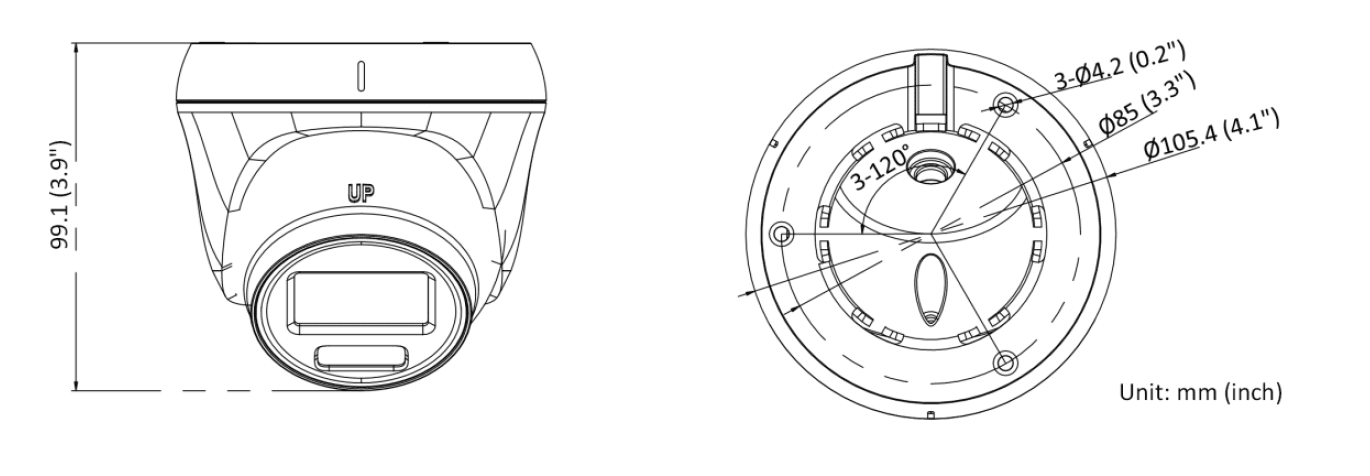

| Dimension |
Ø105.4 × 99.1 mm |
| Weight |
Approx. 340 g (0.7 lb.) |
