| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max. Resolution |
3840 x 2160 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON),0 Lux with light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
|---|
| Lens Type |
Fixed focal lens, 2.8mm |
| Focal Length & FOV |
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F2.0 |
| DORI |
| DORI |
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m |
| Illuminator |
| Supplement Light Type |
IR, White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850nm |
| Video |
| Main Stream |
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32Kbps to 16Mbps |
| H.264 Type |
Baseline Profile,Main Profile,High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region Of Interest (ROI) |
1 fixed region(s) for main stream |
| Audio |
| Audio Type |
Mono sound |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address) |
| Client |
iVMS-4200, HiLookVision |
| Web Browser |
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC,HLC,3D DNR |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB (not included) |
| Built in microphone |
Yes |
| Built-in Speaker |
Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB. |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
| General |
| Power |
12 VDC ± 25%, 0.66 A, max. 8.0 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material |
Metal & Plastic |

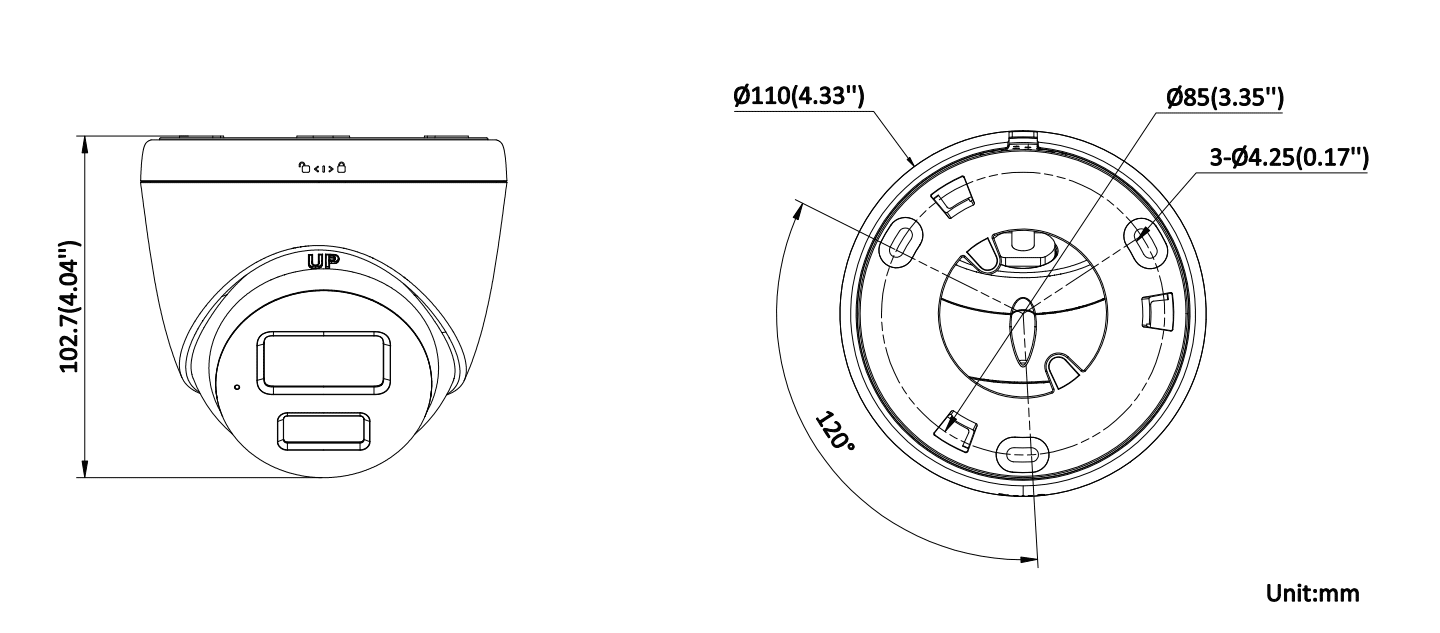

| Dimension |
Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
Approx. 360 g (0.8 lb.) |
| With Package Weight |
Approx. 551 g (1.2 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukranian |
| General Function |
Heartbeat, anti-banding, mirror, password protection, password reset by email |
| Approval |
| EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7 |
| Safety |
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP67: IEC 60529-2013 |
