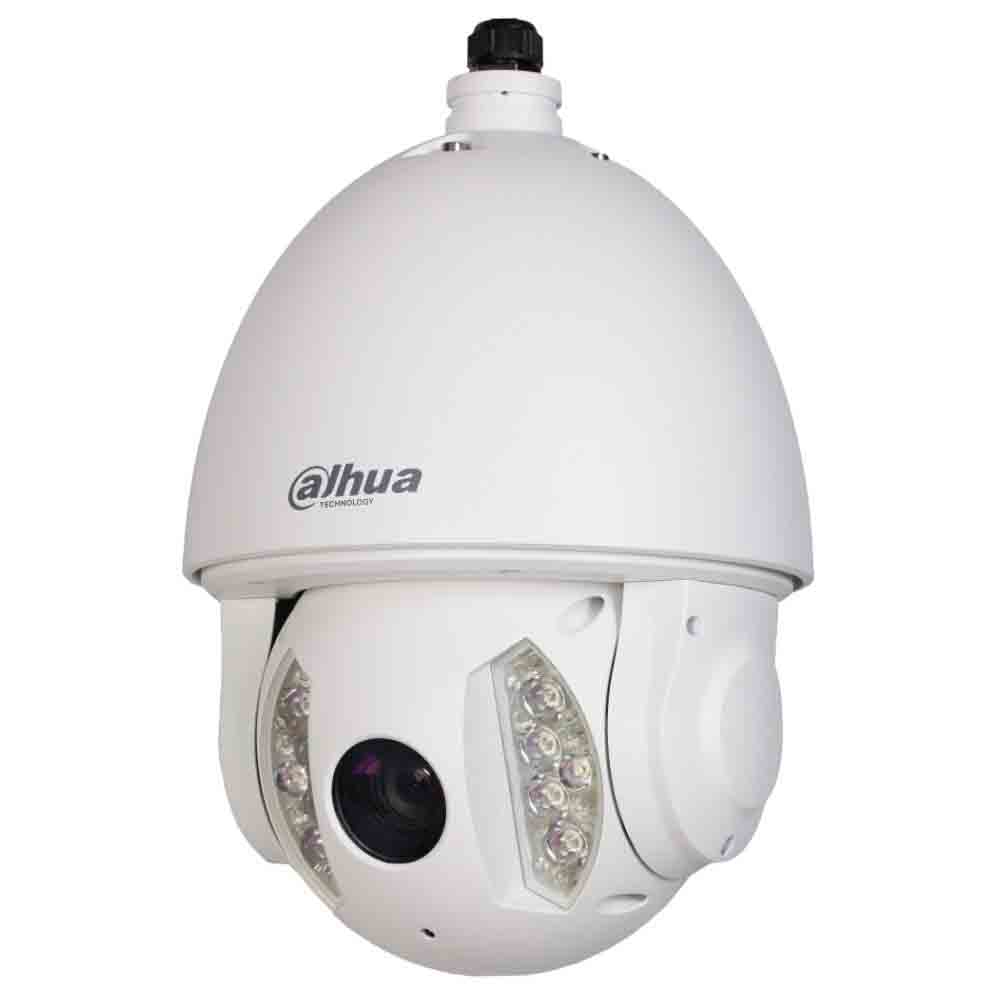

SD6A230I-HC Dahua HD-CVI 1080P 30X Pan Tilt & Zoom Camera with 150M Night Vision
Product Code SD6A230I-HC

SD6A230I-HC Dahua HD-CVI 1080P 30X Pan Tilt & Zoom Camera with 150M Night Vision

Login for Price
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 30x optical zoom
  • Max. 25fps @1080P(1920x1080) & 50fps @720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Control over coaxial cable, long distance real-time transmission
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IR Distance up to 150m
  • IP66, OSD
  • Includes PFB303W wall bracket & PSU

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
Scanning System Progressive
Electronic Shutter 1/1s~1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)
S/N Ratio More than 55dB
Resolution 25fps@1080P, 25/50fps@720P
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.3mm~129mm (30x Optical zoom)
Max Aperture F1.6~ F5.0
Focus Control Auto / Manual
Angle of View H: 65.1° ~ 2.34°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 150m
Audio
Interface 1 channel In
Auxiliary Interface
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC24V/3A (±10%)
Power Consumption 15.2W, 38.2W (IR on, Heater on)
Working Environment -40ºC ~ 70ºC / Less than 90% RH
Ingress Protection IP66
Vandal Resistance n/a

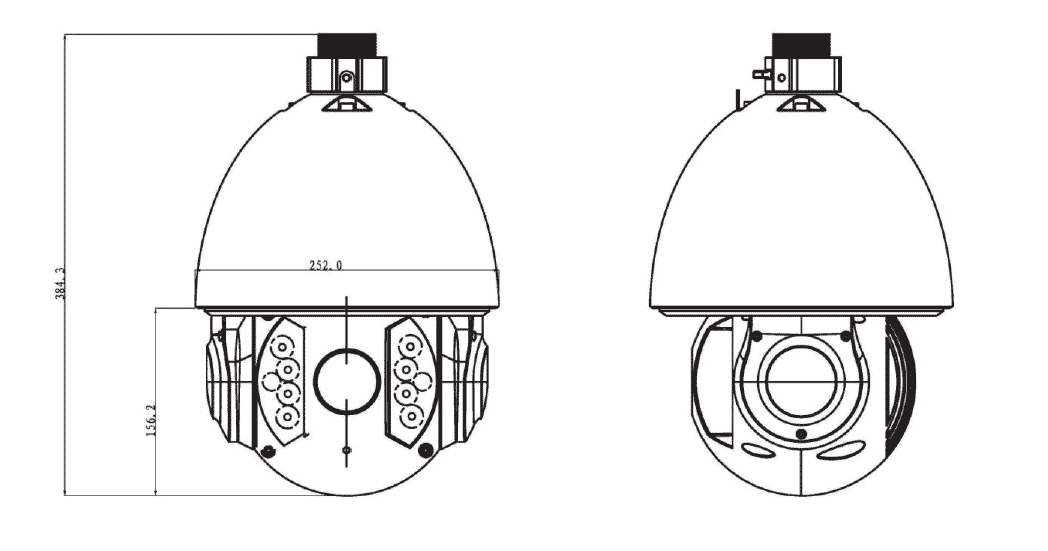

Dimensions Φ252(mm) x 384.3 (mm)
Weight 6.75kg
