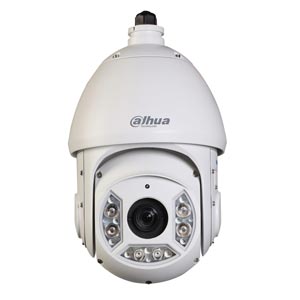

SD6C230T-HN Dahua 1080P 30X Zoom PTZ IP Camera with up to 100m Night Vision
Product Code SD6C230T-HN

SD6C230T-HN Dahua 1080P 30X Zoom PTZ IP Camera with up to 100m Night Vision

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

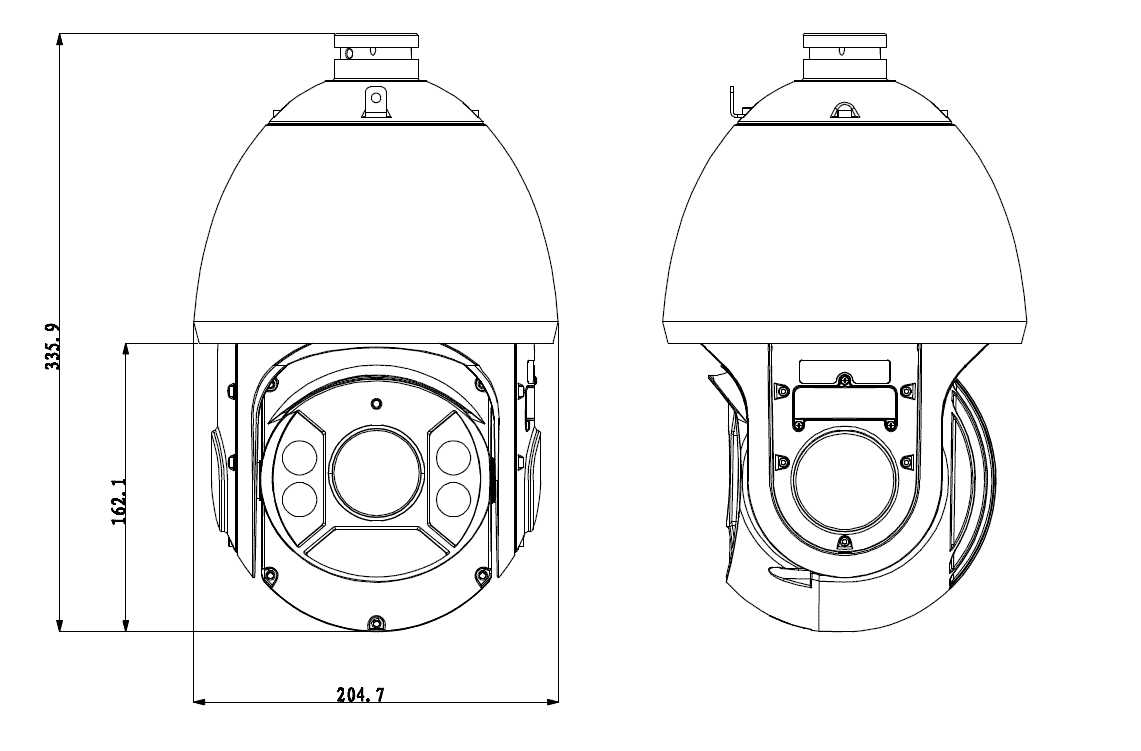

  • Diagram

Key Features

  • 30x optical zoom
  • Support Triple-streams encoding
  • Max. 25fps @ 1080P(1920x1080) & 50fps @ 720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66
  • IR Distance up to 100m
  • Includes PFB303W wall bracket & PSU

Download

Manufacturers Spec Sheet (PDF)

Need a Bracket:

You can download the Dahua Bracket Guide here.

Image Sensor 1/2.8” CMOS
Effective Pixels 1920(H) x 1080(V)
Scanning System Progressive
Electronic Shutter Speed 1/1~1/30,000s
Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio more than 50dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.5mm ~ 135mm (30x Optical zoom)
Max Aperture F1.6~ F4.4
Focus Control Auto / Manual
Angle of View H: 67.8° ~ 2.77°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 100m (2 near IR LED+ 4 far IR LED)
Video
Compression H.264H / H.264B / H.264 / MJPEG
Resolution 1080P(1920 x 1080) / 720P(1280 x 720) / D1(704 x 576) / CIF(352 x 288)
Frame Rate - Main Stream 1080P(1 ~ 25fps)/ 720P (1 ~ 50fps)
Frame Rate - Sub Stream 1 D1/CIF(1 ~ 25fps)
Frame Rate - Sub Stream 2 720P/D1/CIF(1 ~ 25fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Network Function IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 128GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC 24V/3A
Power Consumption 10.5W, 26W (IR on, Heater on)
Working Environment -40ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66
Dimension Φ204.7(mm) x 359.9(mm)
Weight 5kg
