DS-2CE16D8T-AIT3Z Hikvision HD-TVI Ultra Low Light 1080P Motorised Zoom Bullet Camera with 40M EXIR Night Vision
Product ID DS-2CE16D8T-AIT3Z

DS-2CE16D8T-AIT3Z Hikvision HD-TVI Ultra Low Light 1080P Motorised Zoom Bullet Camera with 40M EXIR Night Vision

Trade Only Item
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec

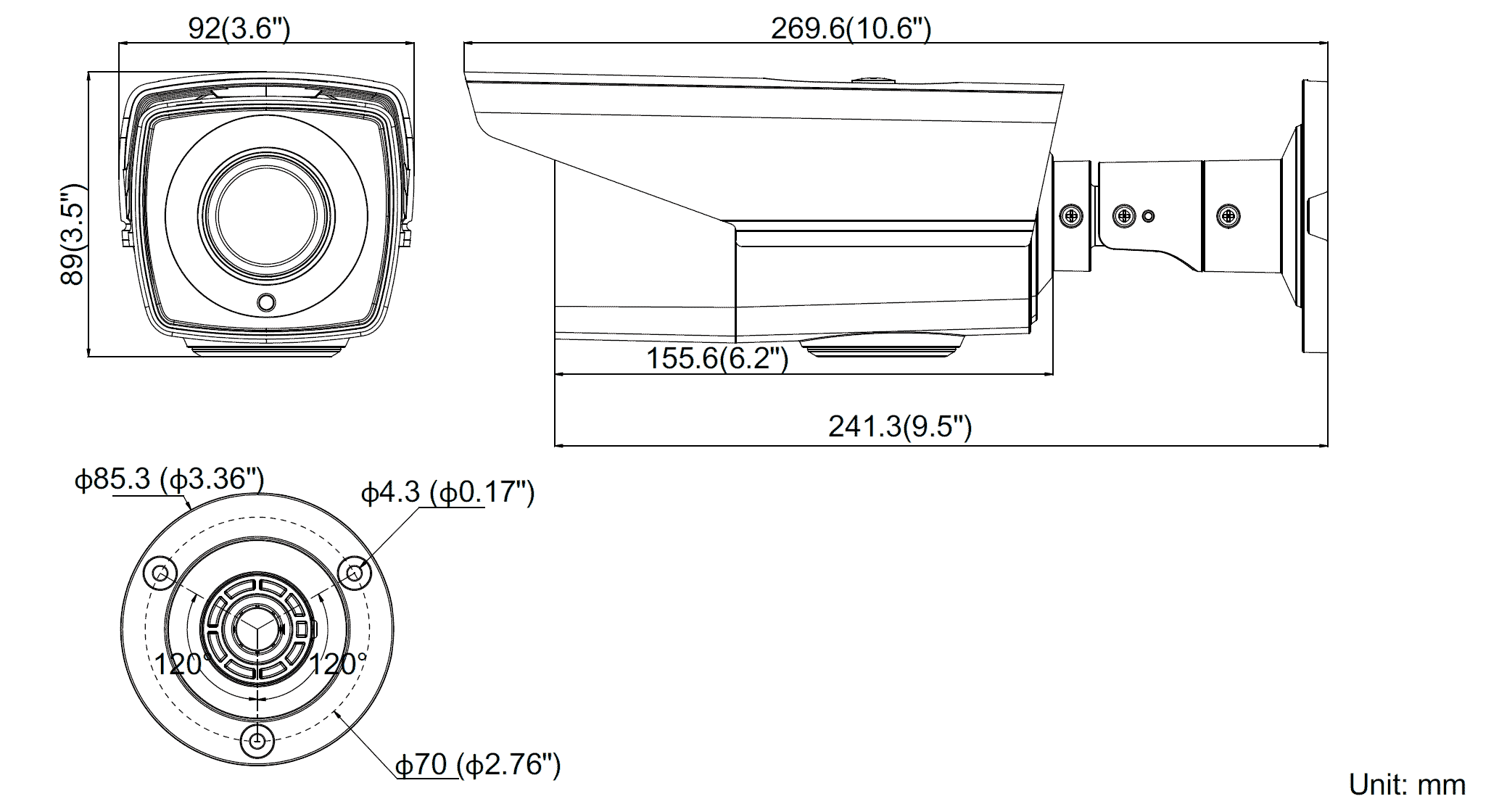

  • Diagram

Key Features

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • 2.8-12mm motorized vari-focal lens
  • True Day/Night, OSD Menu, Smart IR
  • True WDR, up to 120dB
  • EXIR 2.0, up to 40m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1920(H) x 1080(V)
Min. Illumination Color: 0.005 Lux @ (F1.8 AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens Motorized VF lens; 2.8 - 12 mm
angel of view: 32.1°-103°
Lens Mount φ14
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Synchronization Internal synchronization
Menu
Auto White Balance Auto/MWB
BLC Support
AGC Support
Language English / Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC / 24V
Power Consumption Max. 9W
Weather Proof Ratings IP67
IR Range up to 40m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimensions 92mm x 89mm x 269.6mm
Weight Approx. 900g
