DS-2CE19U1T-IT3ZF Hikvision HD TVI 8MP (4k UHD) Motorised Zoom Bullet Camera with 80M EXIR Night Vision

Product ID DS-2CE19U1T-IT3ZF

0 reviews | Write a review

Trade Only Item

DS-2CE19U1T-IT3ZF Hikvision HD TVI 8MP (4k UHD) Motorised Zoom Bullet Camera with 80M EXIR Night Vision

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

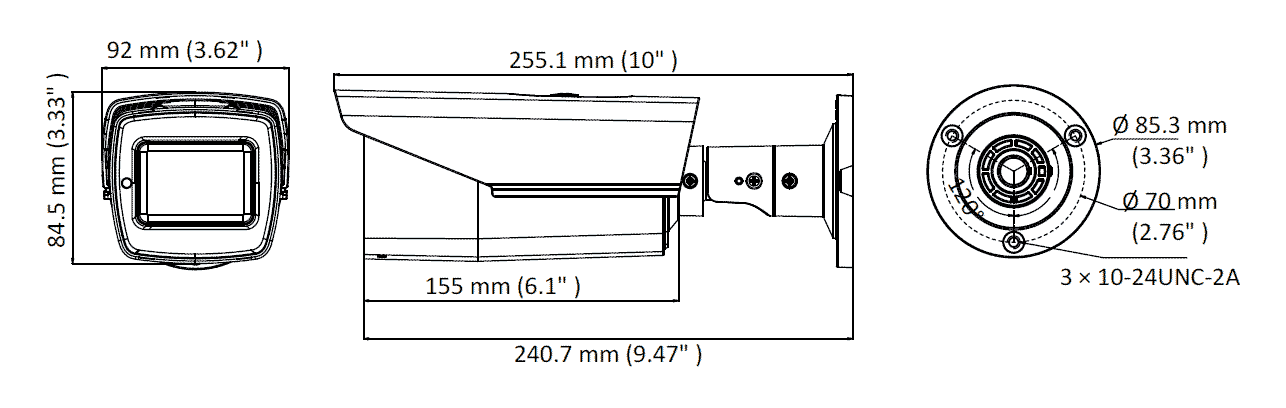

Diagram

Key Features

8.29 Megapixel high-performance CMOS
8MP / 4K UHD (3840 × 2160) resolution
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
2.7 mm to 13.5 mm motorized vari-focal lens - FOV 108.1° to 45.6°
Auto Focus
EXIR 2.0, smart IR, up to 80m IR distance
IP67 weatherproof
Up the Coax(HIKVISION-C)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

The DS-2CE19U1T-IT3ZF is a Hikvision 4K (8MP) motorised zoom bullet camera for HD-TVI (coax) CCTV systems.

The 2.7 to 13.5mm lens zooms and focuses itself, so you can set it from a wide 108 degree view to a closer 45 degree view from the recorder, without going up a ladder. EXIR infrared night vision reaches up to 80m.

It works on TVI, AHD, CVI or analogue recorders and is weatherproof (IP67). It needs a recorder that can record 8MP, such as the Hikvision HTHI range.

Camera
Image Sensor	8.29 MP high performance CMOS
Effective Pixels	3840 (H) x 2160 (V)
Video Frame Rate	TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N
Min. Illumination	Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/12.5 s to 1/10,000 s
Lens	2.7 mm to 13.5 mm motorized vari-focal lens - Angle of View: 108.1° to 45.6°
Lens Mount	Ø14
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Synchronization	Internal synchronization
DWDR (digital wide dynamic range)	105dB
Menu
AGC	Yes
D/N Mode	Auto / Color / B/W
Auto White Balance	Auto/Manual
BLC	Support
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR, HLC
Interface
HD Video Output	1 Analog HD output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C - 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC (9 VDC to 15 VDC) *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 8.6W
Weather Proof Ratings	IP67
IR Range	up to 80m
Communication	Up the coax, Protocol: HIKVISION-C (TVI)
Dimensions	Ø 84.5 mm × 92 mm × 255.1 mm
Weight	Approx. 695g
