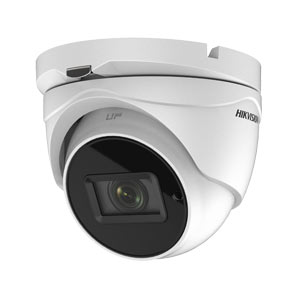

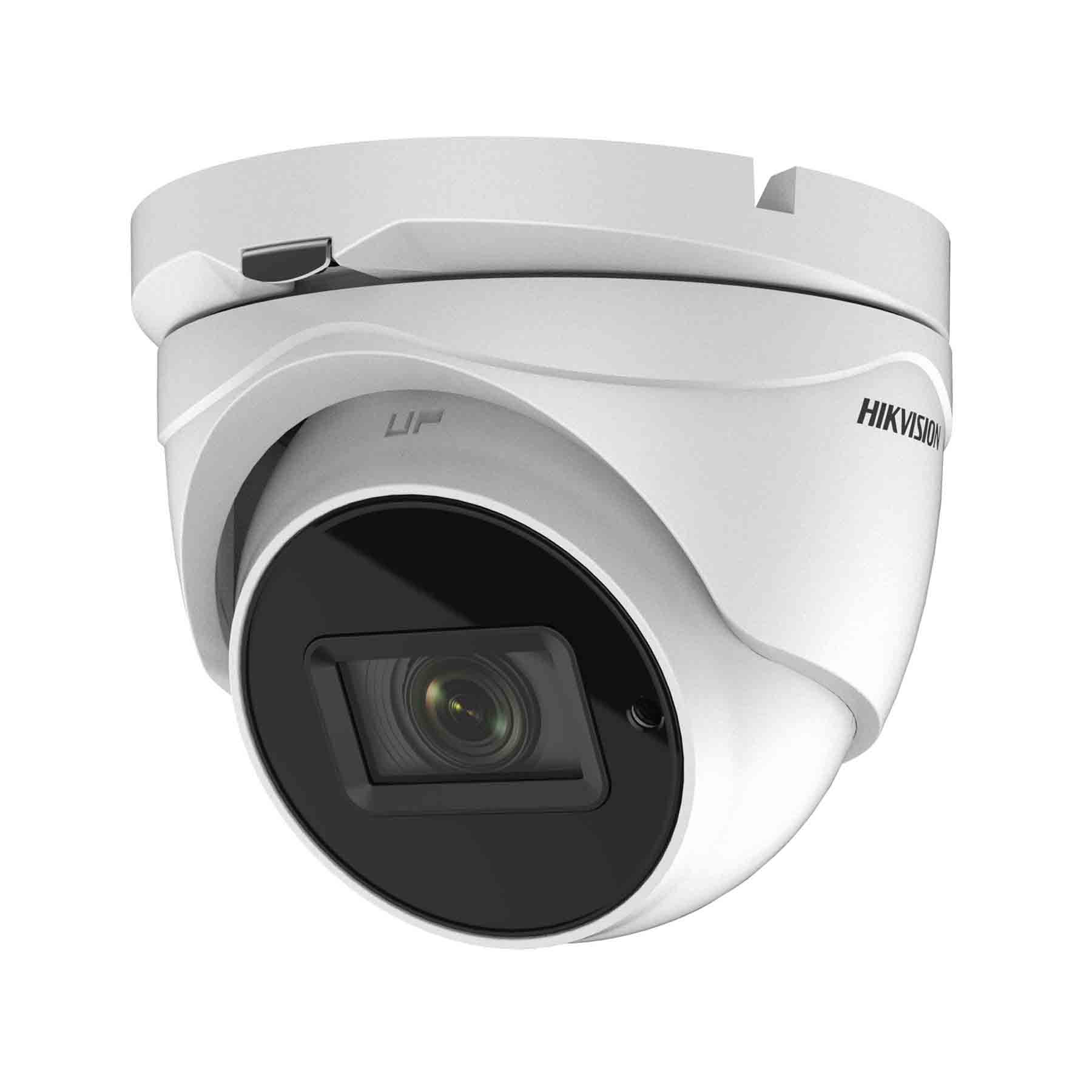

DS-2CE79U1T-IT3ZF Hikvision HD-TVI 8MP (4k UHD) Motorised Zoom Turret Camera with 60M EXIR Night Vision
Product ID DS-2CE79U1T-IT3ZF

DS-2CE79U1T-IT3ZF Hikvision HD-TVI 8MP (4k UHD) Motorised Zoom Turret Camera with 60M EXIR Night Vision

Trade Only Item
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec

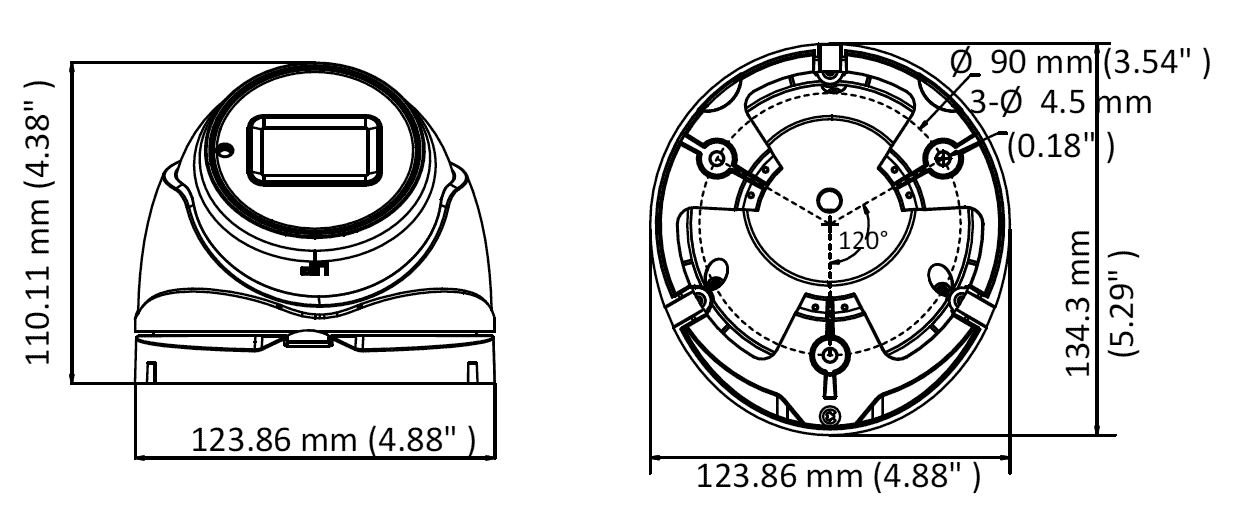

  • Diagram

Key Features

  • 8.29 Megapixel high-performance CMOS
  • 8MP / 4K UHD (3840 × 2160) resolution
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • 2.7 mm to 13.5 mm motorized vari-focal lens - FOV 108.1° to 45.6°
  • Auto Focus
  • EXIR 2.0, smart IR, up to 60m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI recorders that must be capable of recording 8MP resolution only like the "HTHI" range.

Camera
Image Sensor 8.29 MP high performance CMOS
Effective Pixels 3840 (H) x 2160 (V)
Video Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/12.5 s to 1/10,000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens - Angle of View: 108.1° to 45.6°
Lens Mount Φ 14
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Synchronization Internal synchronization
DWDR (digital wide dynamic range) 105dB
Menu
AGC Yes
D/N Mode Auto / Color / B/W
Auto White Balance Auto/Manual
BLC Support
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR, HLC
Interface
HD Video Output 1 Analog HD output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC (9 VDC to 15 VDC)
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 8.6W
Weather Proof Ratings IP67
IR Range up to 60m
Communication Up the coax, Protocol: HIKVISION-C (TVI)
Dimensions Φ 134.3 mm × 123.86 mm × 110.24 mm
Weight Approx. 580g
