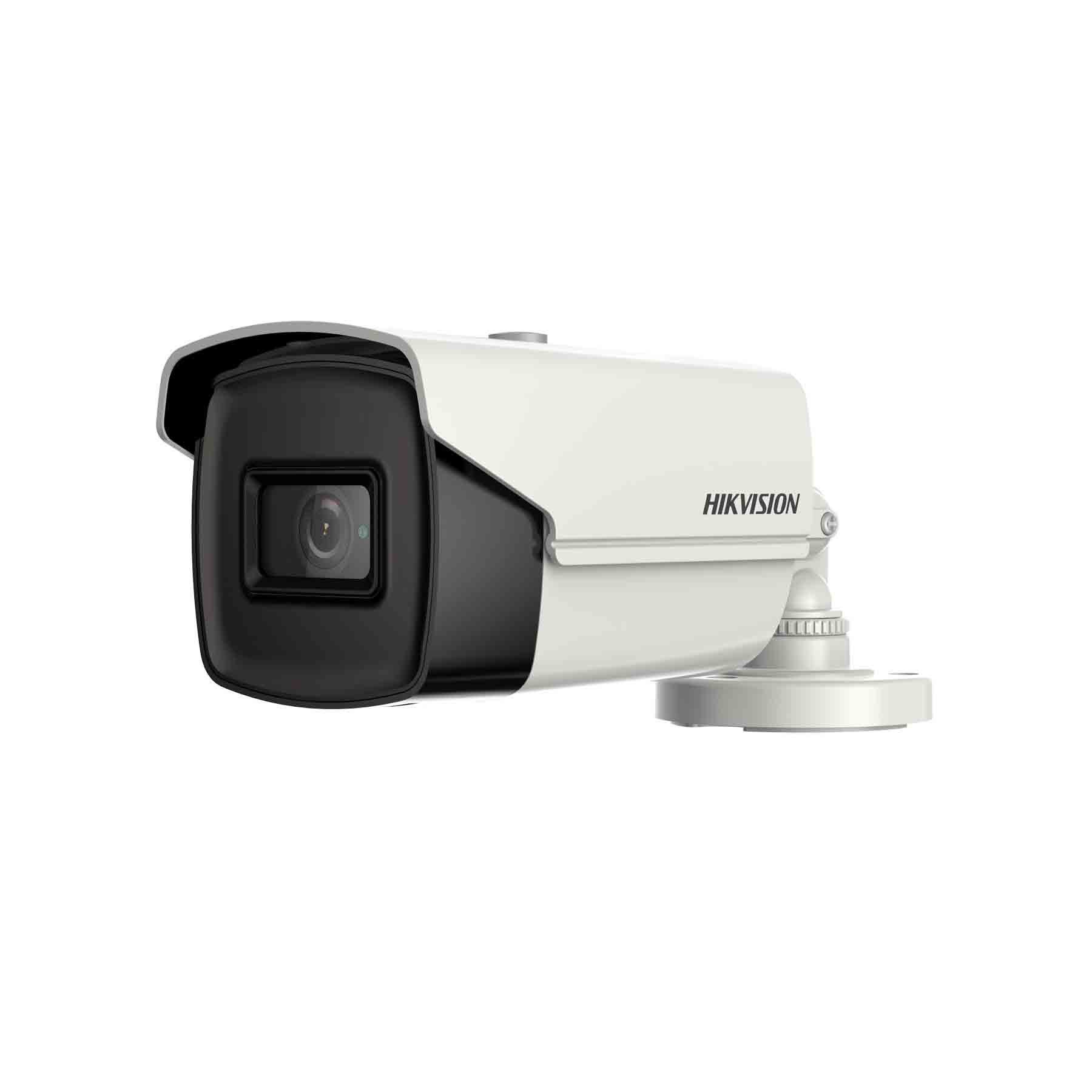

DS-2CE16U1T-IT3F Hikvision HD TVI 8MP (4k UHD) Bullet Camera with 60M EXIR Night Vision

Product ID DS-2CE16U1T-IT3F

0 reviews | Write a review

Trade Only Item

DS-2CE16U1T-IT3F Hikvision HD TVI 8MP (4k UHD) Bullet Camera with 60M EXIR Night Vision

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Diagram

Key Features

8.29 Megapixel high-performance CMOS
8MP / 4K UHD (3840 × 2160) resolution
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
2.8mm fixed lens - FOV 102.2°
EXIR 2.0, smart IR, up to 60m IR distance
IP67 weatherproof
Up the Coax(HIKVISION-C)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

The DS-2CE16U1T-IT3F is a Hikvision 4K (8MP) infrared bullet camera for HD-TVI (coax) CCTV systems.

4K gives four times the detail of 1080p, and the 2.8mm lens gives a wide 102 degree view. EXIR infrared night vision reaches up to 60m.

It works on TVI, AHD, CVI or analogue recorders and is weatherproof (IP67). Settings can be changed from the recorder over the coax cable. It needs a recorder that can record 8MP, such as the Hikvision HTHI range.

Camera
Image Sensor	8.29 MP high performance CMOS
Effective Pixels	3840 (H) x 2160 (V)
Video Frame Rate	TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N
Min. Illumination	Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/12.5 s to 1/10,000 s
Lens	2.8mm - Angle of View: 102.20°
Lens Mount	M16
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Synchronization	Internal synchronization
DWDR (digital wide dynamic range)	105dB
Menu
AGC	Yes
D/N Mode	Auto / Color / B/W
Auto White Balance	Auto/Manual
BLC	Support
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR, HLC
Interface
HD Video Output	1 Analog HD output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C - 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC
Power Consumption	Max. 5.3W
Weather Proof Ratings	IP67
IR Range	up to 60m
Communication	Up the coax, Protocol: HIKVISION-C (TVI)

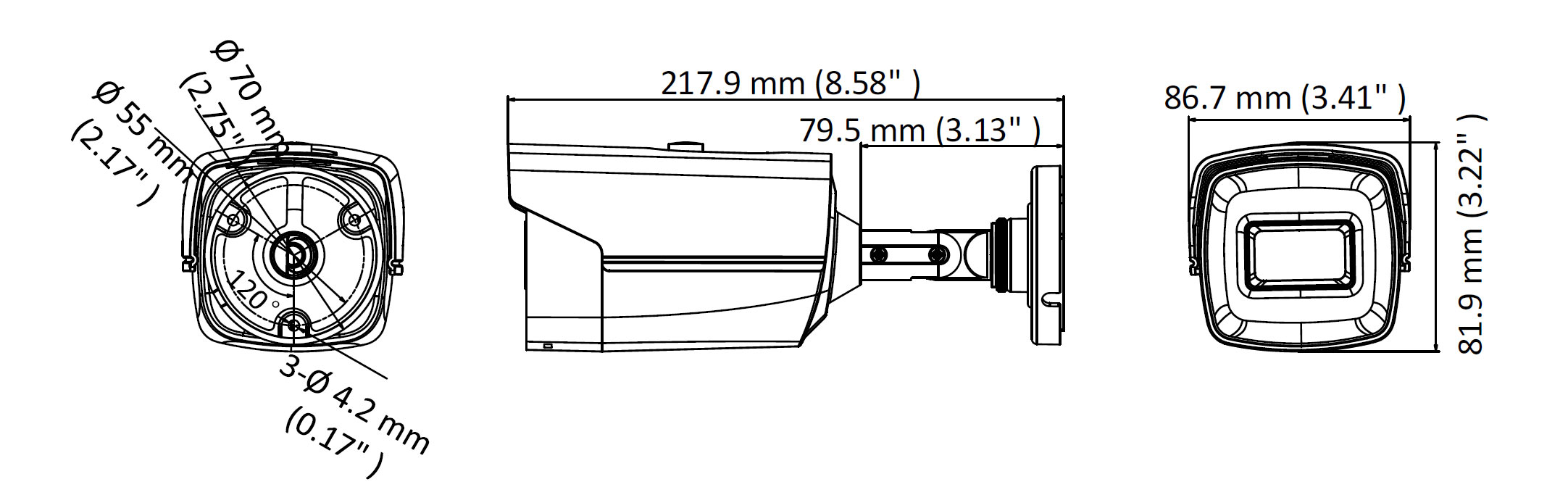

Dimensions	81.9 mm x 86.7 mm x 217.9 mm
Weight	Approx. 435g
