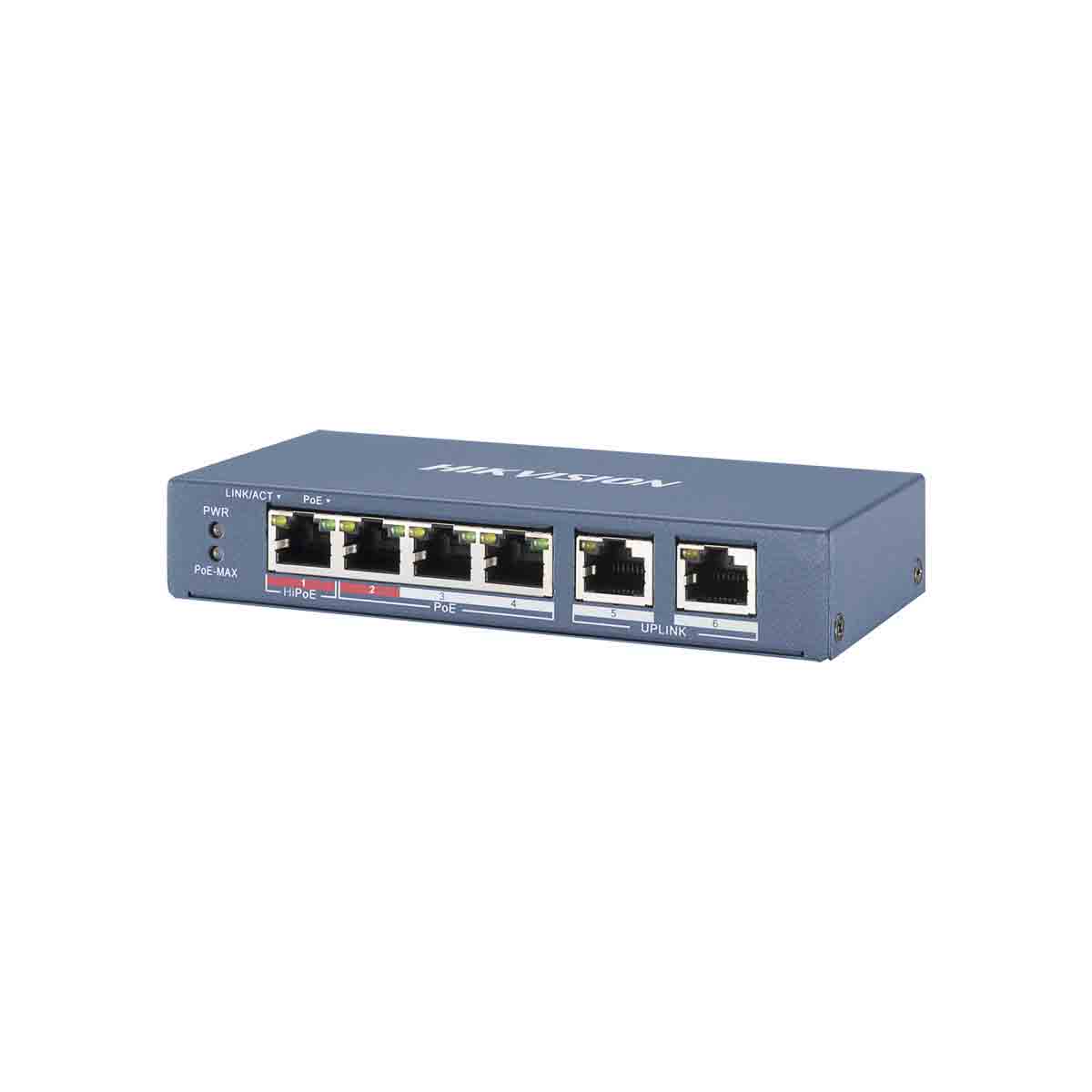

DS-3E0106HP-E Hikvision 4 Ports 100Mbps Unmanaged PoE Switch with 2 x Uplink
Product ID DS-3E0106HP-E

DS-3E0106HP-E Hikvision 4 Ports 100Mbps Unmanaged PoE Switch with 2 x Uplink

Trade Only Item
0 reviews | Write a review

  • Summary
  • Full Spec

Description

DS-3E0106HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and support extend mode with long-range access up to 250 m. The prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. Meanwhile, the 2 × 10/100 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.

Key Features

  • Up to 250m transmission achievable at reduced mbps rate
  • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power
  • IEEE 802.3at/af standard for PoE ports
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
  • 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
  • Provides up to 30 watts per PoE port
  • PoE power budget 60W
  • 6 kV surge protection for PoE ports
  • Plug-and-play installation
  • 1.2 Gbps switching fabric
  • 768 Kbits RAM Data Buffer
  • 1K MAC address entries

Download

Manufacturers Spec Sheet (PDF)

Ports
Port number 1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
High priority port Ports 1 to 2
Ports for long-distance transmission Ports 1 to 4
Switching Capacity 1.2Gbps
Packet forwarding rate 0.893Mpps
Forwarding Mode Store-and-forward
MAC Address Table 2k
PoE Standard Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
Max. port power/td> Port 1: 60 W
Ports 2 to 4: 30 W
PoE Power Budget 60W
Power Supply 48 VDC, 1.35 A
Power Consumption Max. 65W
Surge Protection 4KV
Working Conditions 0 °C – 40 °C; Humidity 5-95% (non-condensing)
Dimensions 145 mm x 25.6 mm x 68.45 mm
Weight Approx. 240g
