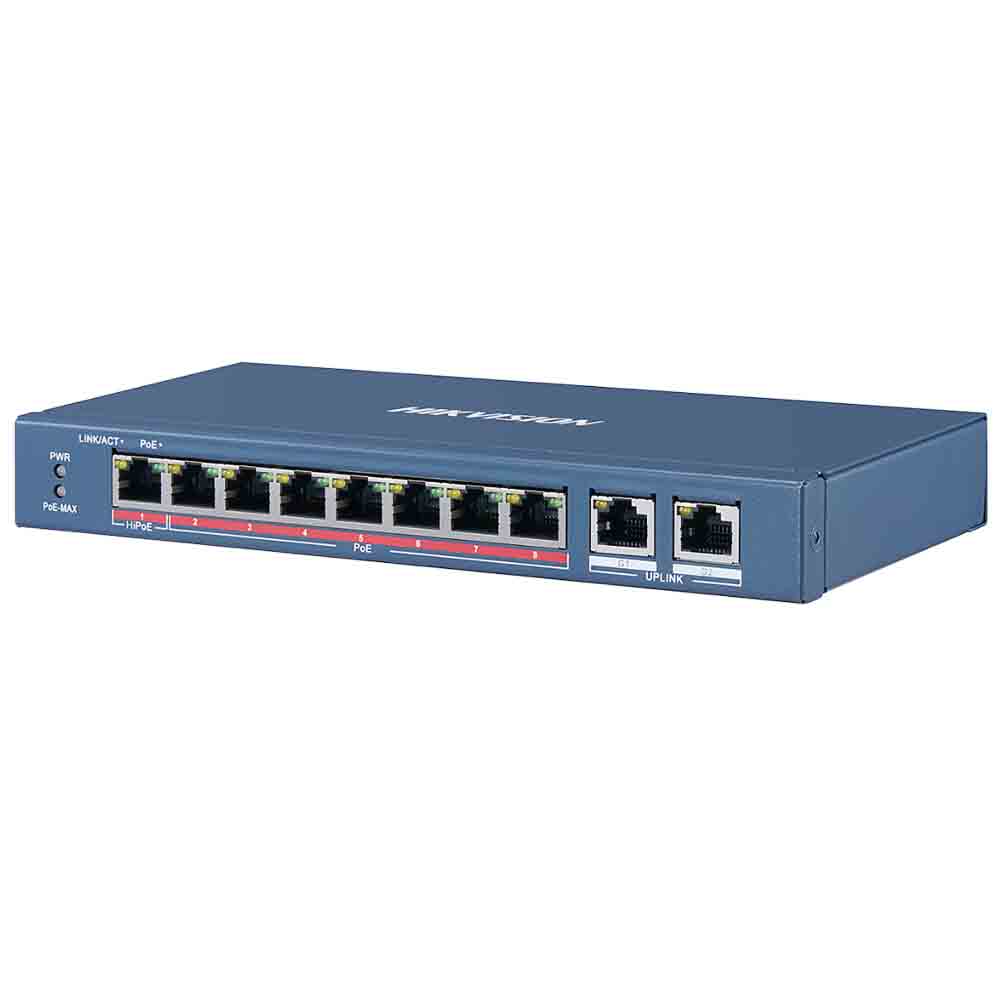

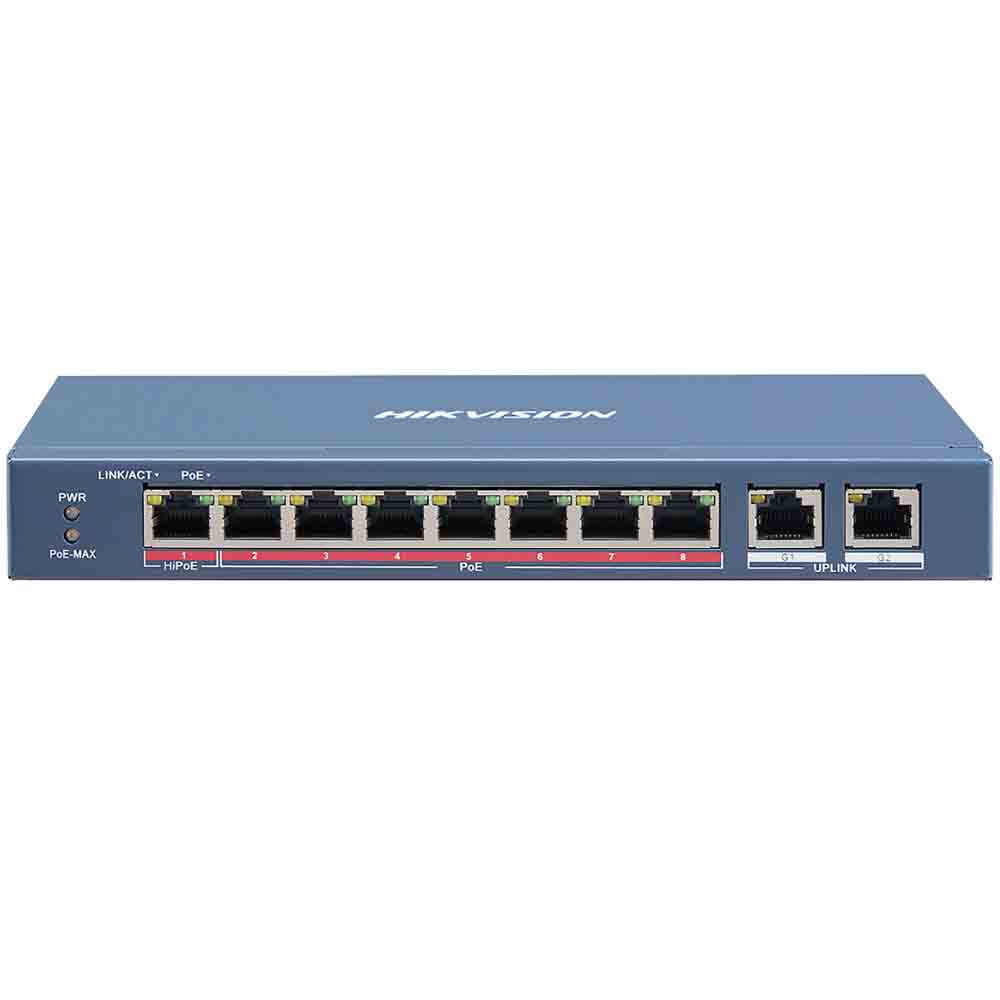

Hikvision DS-3E0310HP-E 8-Port 100Mbps Unmanaged PoE Switch with 2 x Uplink

Product ID DS-3E0310HP-E

0 reviews | Write a review

Trade Only Item

Hikvision DS-3E0310HP-E 8-Port 100Mbps Unmanaged PoE Switch with 2 x Uplink

Hikvision DS-3E0310HP-E 8-Port 100Mbps Unmanaged PoE Switch with 2 x Uplink #1

Hikvision DS-3E0310HP-E 8-Port 100Mbps Unmanaged PoE Switch with 2 x Uplink #2

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

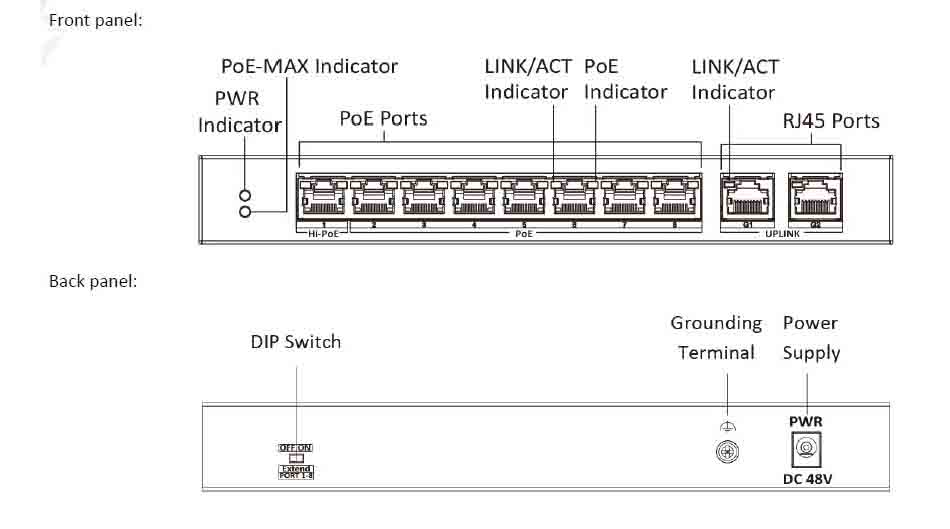

Diagram

Summary

DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 × 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.

Key Features

Intelligent PoE Management
Up to 300 m Long Range PoE Transmission
IEEE 802.3bt Standard Hi-PoE, Max. 90 W for One Port
4/8-Core Adaptive Power Supply with Less Power Loss
6KV Surge Protection to Improve Reliability in Harsh Environment

Download

Manufacturers Spec Sheet (PDF)

Network parameters
Port number	1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default); Extend mode
Ports for long-distance transmission	Ports 1 to 8
MAC address table	16 K
Switching capacity	5.6 Gbps
Packet forwarding rate	4.166 Mpps
Internal cache	4 Mbits
PoE power supply
PoE standard	Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin	Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port	Ports 1 to 8
Max. port power	Port 1: 60 W Ports 2 to 8: 30 W
PoE power budget	110 W
Max. power consumption	120 W
General
Shell	Metal material, fan-free design
Gross weight	1.22 kg (2.69 lb)
Net weight	0.55 kg (1.21 lb)

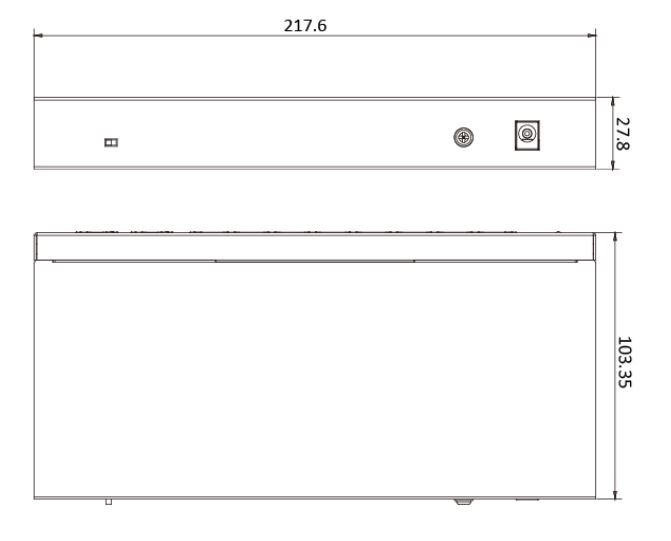

Dimension (L × H × D)	217.6 mm × 27.8 mm × 103.35 mm (8.6” × 1.1” × 4.1”)
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 VDC, 2.5 A
Power consumption in idle	10 W
