About the DS-2SE4C425MWG-E-14F0

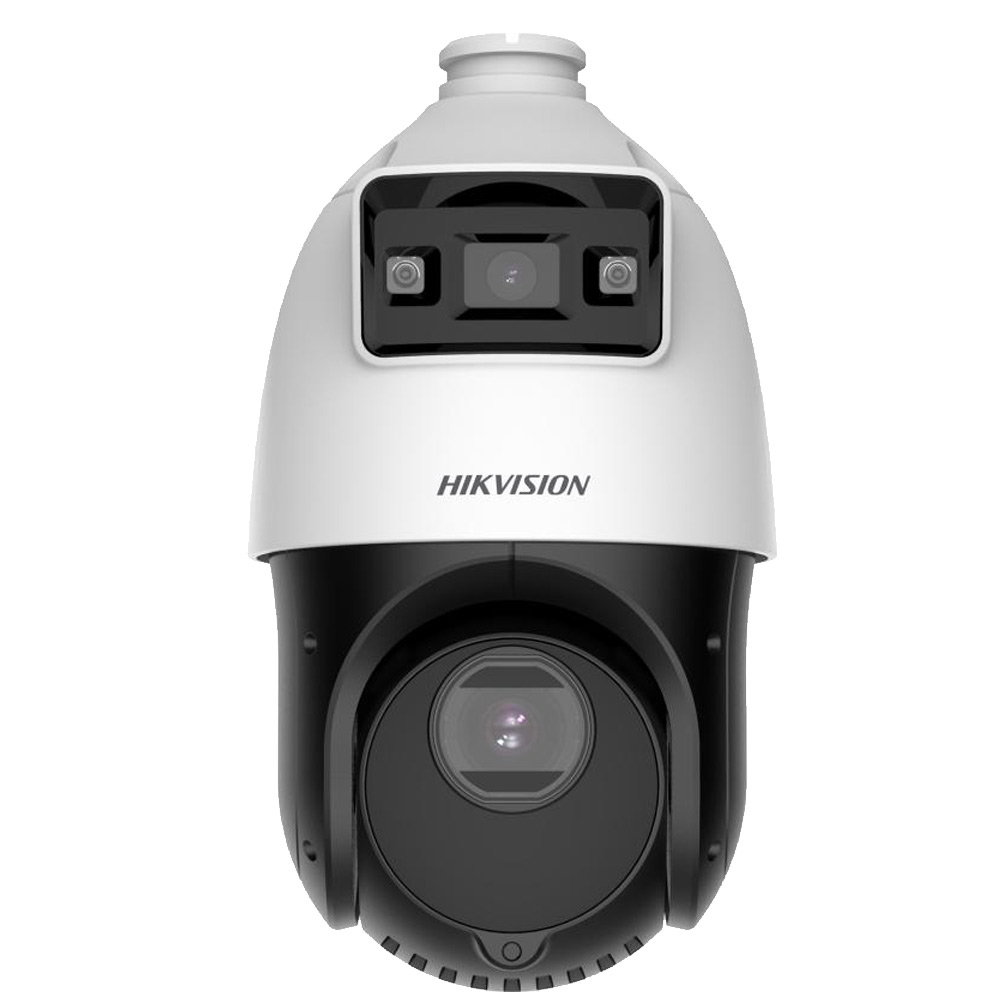

The Hikvision DS-2SE4C425MWG-E-14F0 is a 4 megapixel TandemVu Pro Series outdoor network speed dome PTZ camera, integrating two independent imaging channels into a single housing to provide simultaneous wide-area overview and detailed zoomed-in surveillance. The TandemVu design addresses one of the fundamental limitations of conventional PTZ cameras: the loss of situational awareness when panning, tilting or zooming. With a fixed bullet channel and a full PTZ channel operating in parallel, operators retain a broad contextual view at all times, regardless of where the PTZ channel is currently directed.
The bullet channel uses a 1/3" progressive scan CMOS sensor with a 2.8mm fixed focal lens at F1.0 aperture, delivering a horizontal field of view of 96.1° and minimum illumination of 0.0005 Lux. Powered by ColorVu technology with up to 30 metres of white light illumination, it provides full-colour 24/7 imagery across the wide-angle scene, maintaining colour detail even in very low-light conditions. Both channels deliver 4MP resolution at 2560 x 1440.
The PTZ channel uses a 1/2.8" progressive scan CMOS sensor with a 25x optical zoom lens spanning 4.8mm to 120mm focal length at maximum aperture F1.6, enabling detailed monitoring from wide-angle through to long-range telephoto. DarkFighter technology achieves minimum colour illumination of 0.005 Lux, with smart IR illumination providing up to 100 metres of night vision coverage. 16x digital zoom extends reach further when required. PTZ movement covers 360° endless pan and -15° to 90° tilt with auto-flip, at speeds configurable up to 80°/s with 80°/s preset recall speed. Up to 300 presets, 8 patrols and 4 pattern scans can be programmed for automated site monitoring.
Deep learning AcuSense analytics deliver human and vehicle target classification for both channels, focusing alarm events on genuine security threats and reducing false activations from environmental sources. Face capture supports simultaneous detection of up to five faces. Perimeter protection events cover line crossing, intrusion, region entrance and region exiting, with configurable linkage actions including PTZ tracking.
The camera is rated IP66 for outdoor weather resistance and includes an integral heater for reliable operation from -30°C to 65°C. Power is via 12VDC or PoE+ (IEEE 802.3at), with maximum consumption of 24W. On-board microSD storage supports up to 256GB for local recording. The camera weighs approximately 2.4kg and is ONVIF Profile S, G and T compliant.
DS-2SE4C425MWG-E-14F0 Key Features
- TandemVu dual-sensor design, simultaneous wide-angle bullet channel and 25x PTZ channel in one housing
- Bullet channel: 1/3" CMOS, 2.8mm F1.0 fixed lens, 96.1° H-FOV, ColorVu 24/7 colour, 30m white light, 0.0005 Lux
- PTZ channel: 1/2.8" CMOS, 4.8-120mm 25x optical zoom, F1.6, DarkFighter, 100m IR, 0.005 Lux colour
- Both channels: 4MP resolution, 2560 x 1440, 25fps
- 360° endless pan, -15° to 90° tilt with auto-flip, 80°/s preset speed
- 300 presets, 8 patrols, 4 pattern scans, scheduled tasks
- AcuSense deep learning, human and vehicle classification, perimeter protection
- Face capture, up to 5 faces simultaneously
- WDR, HLC, BLC, 3D DNR, defog, regional exposure and focus
- IP66 weatherproof, integral heater, operating temperature -30°C to 65°C
- On-board microSD storage up to 256GB
- PoE+ (IEEE 802.3at) or 12VDC powered, max 24W
- ONVIF Profile S, G, T compatible
Download
Manufacturers Spec Sheet (PDF)
