About the DS-2CD2347G3-LIS2UY-SL-B

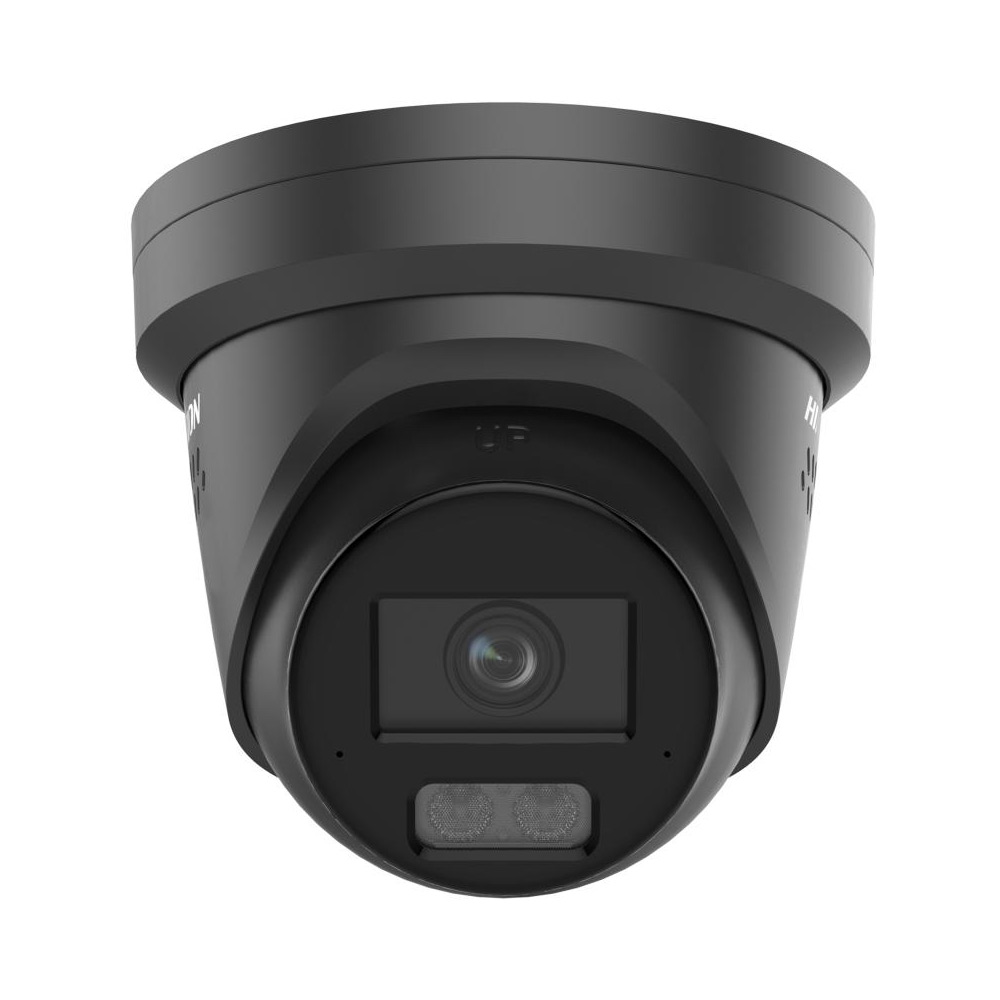

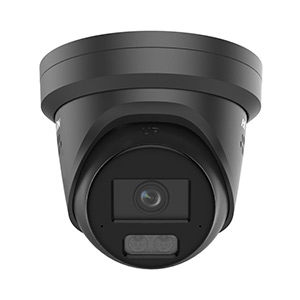

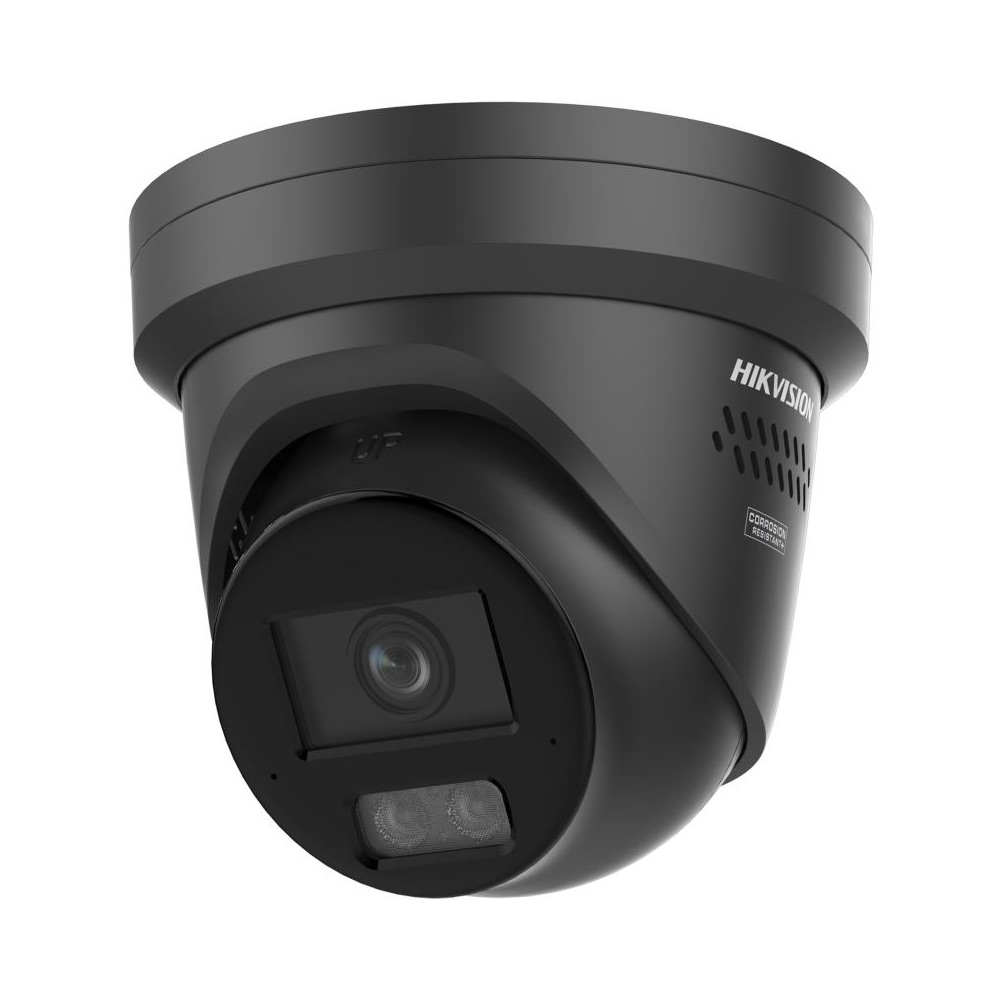

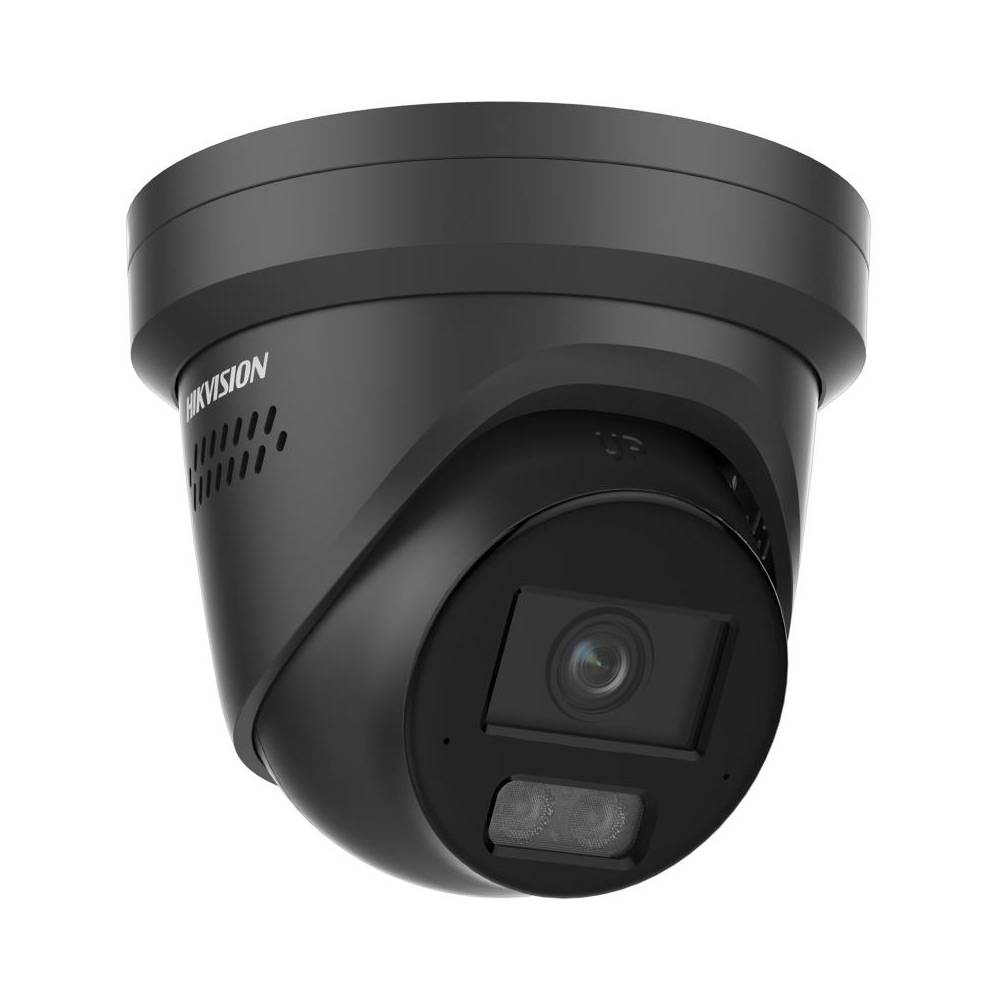

The Hikvision DS-2CD2347G3-LIS2UY-SL-B is the black-housing version of the 4 megapixel Smart Hybrid Light ColorVu 3.0 active deterrence fixed turret network camera. Combining 24/7 full-colour imaging with an integrated white strobe light and audible alarm, it offers the same comprehensive deterrence and analytics capability as the standard white model in a discreet dark finish suited to installations where the camera housing should blend into the environment.
The 1/1.8" progressive scan CMOS sensor with F1.0 aperture lens and HikAI-ISP noise reduction delivers a maximum resolution of 2688 x 1520 with minimum colour illumination of 0.0001 Lux. ColorVu 3.0 ensures rich full-colour footage is maintained throughout the night, providing consistently useful evidence-quality imagery. The Smart Hybrid Light system supports three configurable illumination modes using both white light and IR illuminators, with effective range up to 30 metres.
When a deep learning perimeter protection event is detected, the active deterrence system immediately triggers the white strobe light and activates the audible alarm, issuing a clear warning to any intruder within the camera's field of view. Built-in two-way audio via the arrayed dual-microphone and speaker allows operators to issue live verbal challenges remotely, further reinforcing the deterrence response. This combination of visual, audible and verbal deterrence makes the camera a highly effective tool for proactive security management.
Deep learning perimeter protection covers line crossing, intrusion, region entrance and region exiting with human and vehicle classification to minimise false alarms. Audio and alarm interfaces (1 in, 1 out each) support external device integration. The black housing carries IP67 and NEMA 4X anti-corrosion ratings for reliable outdoor performance. On-board microSD storage supports up to 512GB, and power is delivered via PoE 802.3at (Class 4, max 17W) or 12VDC.
DS-2CD2347G3-LIS2UY-SL-B Key Features
- 4 megapixel resolution, 1/1.8" progressive scan CMOS sensor, max resolution 2688 x 1520, black housing
- 2.8mm fixed focal lens, F1.0 aperture, horizontal FOV 111.1 degrees
- ColorVu 3.0 technology, 24/7 full-colour imaging, minimum illumination 0.0001 Lux (colour)
- Active deterrence, built-in white strobe light and audible alarm to warn intruders
- Smart Hybrid Light, white light and IR illuminators, up to 30m range, 3 configurable lighting modes
- Built-in two-way audio, arrayed dual-microphone and speaker
- HikAI-ISP for advanced noise reduction and superior image quality
- Deep learning perimeter protection, line crossing, intrusion, region entrance and exiting, human and vehicle classification
- Audio interface (1 in, 1 out) and alarm interface (1 in, 1 out)
- Scene-adaptive wide dynamic range (WDR)
- NEMA 4X anti-corrosion rated, IP67 weatherproof, all-metal housing
- On-board microSD card slot, up to 512GB, ANR support
- DORI (2.8mm): Detect 61m, Observe 24m, Recognise 12m, Identify 6m
- PoE (IEEE 802.3at Class 4, max 17W) or 12VDC powered
- ONVIF Profile S, G, T compatible
Download
Manufacturers Spec Sheet (PDF)
