About the DS-7616NXI-K2-16P

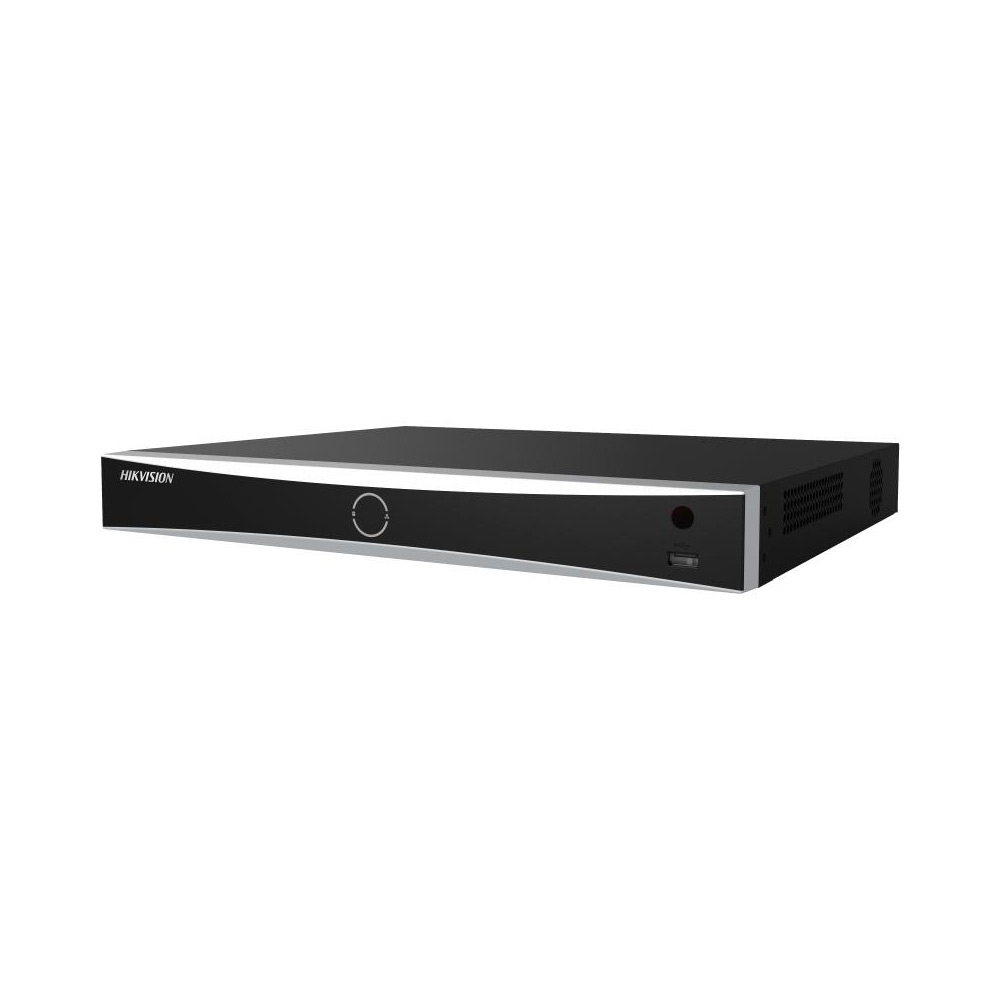

The Hikvision DS-7616NXI-K2-16P is a 16-channel AcuSense 4K Network Video Recorder with 16 built-in PoE ports and dual HDD bays, designed for mid-to-large professional IP camera installations that demand expanded camera capacity, on-board deep learning analytics and high-density local storage. As the 16-channel step-up from the 8-channel K1 series, it doubles both the camera inputs and PoE ports, increases incoming bandwidth to 160 Mbps, adds a second SATA bay for up to 20TB of on-board storage, and benefits from the enhanced (D) deep learning processor for significantly improved decoding and analytics performance.
Sixteen independent 10/100 Mbps PoE interfaces provide plug-and-play camera connectivity across the full channel count, with each port supporting IEEE 802.3af and 802.3at standards. No external PoE switch is required, simplifying installation and reducing rack or cabinet space. All 16 channels accept IP cameras up to 12MP resolution, with 160 Mbps incoming and 160 Mbps outgoing bandwidth ensuring smooth simultaneous recording and remote access across every channel. H.265+, H.265, H.264+ and H.264 compression are fully supported, with H.265+ cutting storage requirements by up to 75% versus H.264.
This NVR Supports the full AcuSense deep learning analytics engine. AI by Device capabilities include perimeter protection on 2 channels at up to 4MP for human and vehicle classification, Motion Detection 2.0 across all 16 channels, and facial recognition supporting 1-channel video stream analytics at 8MP or 4-channel face picture comparison. Up to 16 face picture libraries can be maintained, with a total capacity of 20,000 images. AI by Camera extends analytics to all channels when paired with AcuSense-capable cameras, including perimeter intrusion, line crossing, region entrance and exit, as well as ANPR and VCA event types. Smart search and smart playback dramatically reduce event review time by allowing targeted retrieval by object type rather than manual timeline scrubbing.
The enhanced decoding engine supports 2-ch at 12MP, 3-ch at 8MP, 6-ch at 4MP or 12-ch at 1080p simultaneously with AI active, and up to 2-ch at 12MP, 4-ch at 8MP, 8-ch at 4MP or 16-ch at 1080p with AI off. Video output is via independent 4K HDMI (up to 3840x2160/30Hz) and 1080p VGA, supporting 16-channel synchronous playback. Two SATA interfaces each support a single HDD of up to 10TB, giving a maximum on-board storage capacity of 20TB. Two USB 2.0 ports provide local backup and mouse connectivity, and TLS stream encryption protects remote access over the network.
Housed in a 1U chassis measuring 385 x 315 x 52mm and weighing under 3kg without a drive, the DS-7616NXI-K2-16P-D accepts a wide-range 100-240VAC power supply and consumes under 15W without HDDs and PoE disabled. Its combination of 16-channel capacity, dual storage bays, full AcuSense analytics and 16 integrated PoE ports makes it the natural choice for installers specifying a self-contained, analytics-enabled NVR solution for retail, commercial, industrial and multi-site environments.
