CORE+ 10 Camera 12MP Dual Light PoE Kit with HiLook by Hikvision Pro Series 16ch NVR (2 Way Audio) in Black

About the CORE+ 12MP 10-Camera IP CCTV Kit (Black)

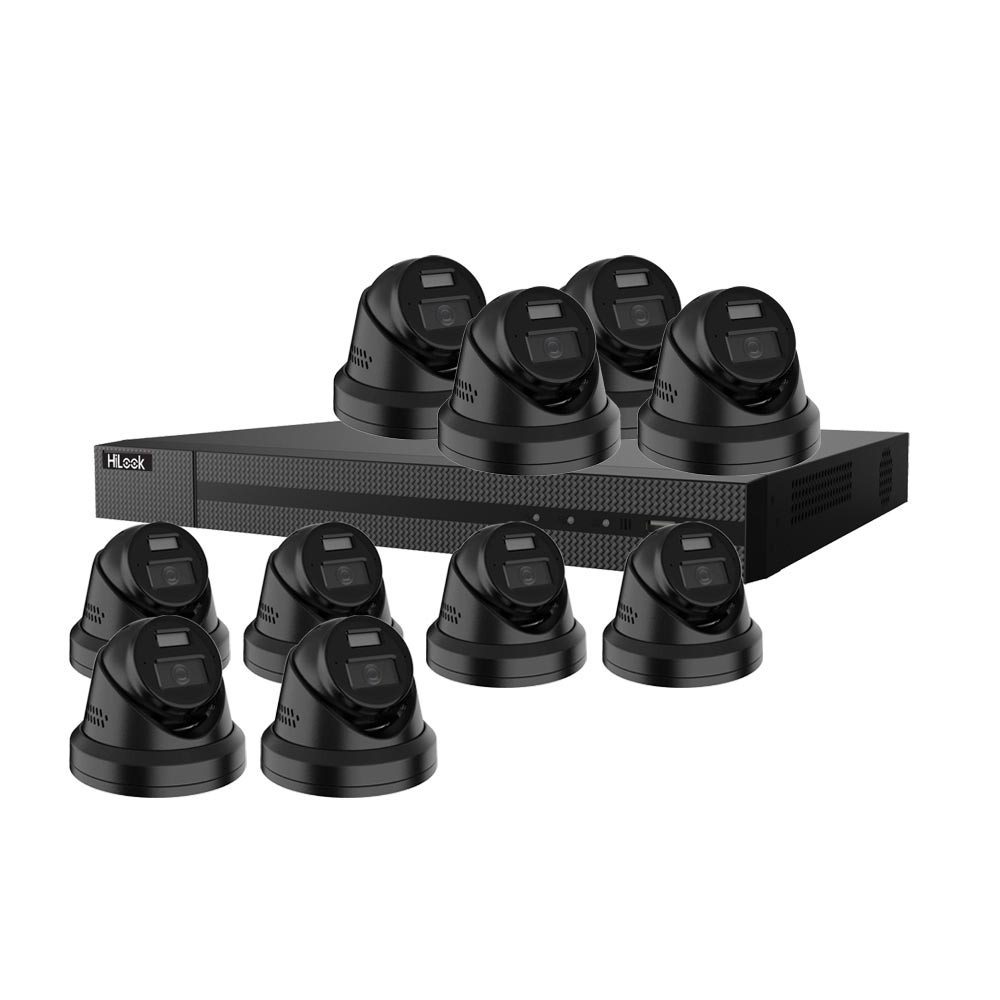

Ten CORE+ IPC-2120B-HT 12 megapixel turret cameras in matte black, paired with the HiLook Pro Series HL-NVR-216MH-K-16P 16-channel PoE NVR. At this scale, the black finish is not simply an aesthetic option: it is a specification choice that affects how the system sits within its environment. Ten cameras visible across a building or site need to look intentional and considered, not bolted-on. The IPC-2120B-HT in matte black achieves that on dark architectural surfaces, modern cladding, black UPVC, and commercial facades where a uniformly dark camera line reads as part of the design rather than an afterthought.

The HL-NVR-216MH-K-16P provides 16 channels with 160 Mbps incoming bandwidth and a 200 W PoE budget, easily handling ten cameras at 12MP with capacity to spare. Six PoE ports remain unused for future expansion. The NVR's two SATA bays each support up to 16 TB, and the advanced analytics platform includes facial recognition with up to 20,000 face images, Motion Detection 2.0, and Perimeter Protection running both at device level and camera level. For a commercial customer who needs to be able to search footage intelligently, filter by event type, or identify known individuals across a multi-camera system, this combination of NVR analytics and 12MP camera resolution provides a genuinely professional toolset.

Ten cameras at 4096 x 3072 pixels each, covering a 113-degree horizontal field of view from each position, give thorough coverage across a large site. At this resolution, every camera position contributes identification-quality imagery rather than simply providing area coverage. Registration plates, facial features, and clothing are captured clearly across the full field of view, which means a single well-placed camera is doing the work that might otherwise require two or three cameras at lower resolution with narrower lenses to achieve equivalent detail at the same range. For commercial customers who want to reduce total camera count while maximising evidence value, the 12MP platform makes that argument clearly.

Smart Dual Light in each IPC-2120B-HT provides invisible infrared illumination to 30 metres and white light deterrence on detection. The black housing at night is completely inconspicuous in the infrared mode; when the white light fires on detection, the sudden illumination from an otherwise invisible camera position has a more pronounced deterrent effect than a camera that was visibly lit all along. Motion Detection 2.0 ensures that white light activations are driven by human and vehicle detections rather than general movement, keeping the deterrent response meaningful rather than continuous. The NVR's Perimeter Protection adds virtual boundary monitoring across the camera coverage areas for additional intruder detection capability.

Ten built-in microphones and ten 95 dB speakers provide interactive audio coverage across the entire monitored site. From the Hik-Connect app, a single operator can monitor and communicate at any of the ten camera positions in real time. For a security team managing a large commercial premises after hours, for facilities managers covering multiple access zones remotely, or for any site where physical presence at every monitored point is impractical, this level of audio coverage fundamentally changes the capability of the surveillance system beyond passive recording.

Each IPC-2120B-HT has IP67 weatherproofing in a metal housing, a microSD slot for up to 512 GB of on-board backup recording, and operates from -30 to 60 degrees Celsius. PoE (IEEE 802.3af) per camera. CORE+ IPC-2120B-HT cameras are confirmed compatible with HiLook Pro Series NVRs and are exclusively available from JMC Secure.

Camera Features

• 12MP resolution (4096 x 3072) in a discreet matte black housing, ideal for low-profile installations
• 2.8 mm fixed lens, horizontal FOV 113° for wide-area coverage from a single camera
• Smart Dual Light with automatic IR and white light switching for 24/7 colour or infrared night vision up to 30 m
• Built-in two-way audio with microphone and 95 dB speaker for live interaction and deterrence via app
• Motion Detection 2.0 with human and vehicle classification to reduce false alarms
• 120 dB WDR with BLC, HLC and 3D DNR for mixed lighting and backlit scenes
• H.265+ compression to reduce storage and bandwidth demands
• MicroSD slot supporting up to 512 GB for on-board backup recording
• IP67 weatherproof metal housing for indoor and outdoor installation
• PoE (802.3af) and DC 12V powered, single-cable installation

Camera Spec

Manufacturers Spec Sheet (PDF)

NVR Features

• 16-channel NVR with 16 built-in PoE ports for true plug-and-play camera connection, with 6 spare ports for expansion
• Supports up to 12MP recording resolution per channel
• 160 Mbps incoming bandwidth for large multi-camera 4K deployments
• Intelligent analytics including facial recognition, Motion Detection 2.0 and Perimeter Protection
• H.265+/H.265/H.264+/H.264 video compression for efficient storage
• Independent HDMI (4K) and VGA outputs for simultaneous dual-screen monitoring
• 16-channel simultaneous playback
• 2 x SATA interfaces supporting up to 16 TB per HDD
• Alarm I/O (4 in/1 out) for integration with external devices
• IEEE 802.3af/at PoE, up to 200 W total; Gigabit LAN; ONVIF support

NVR Spec

Manufacturers Spec Sheet (PDF)
