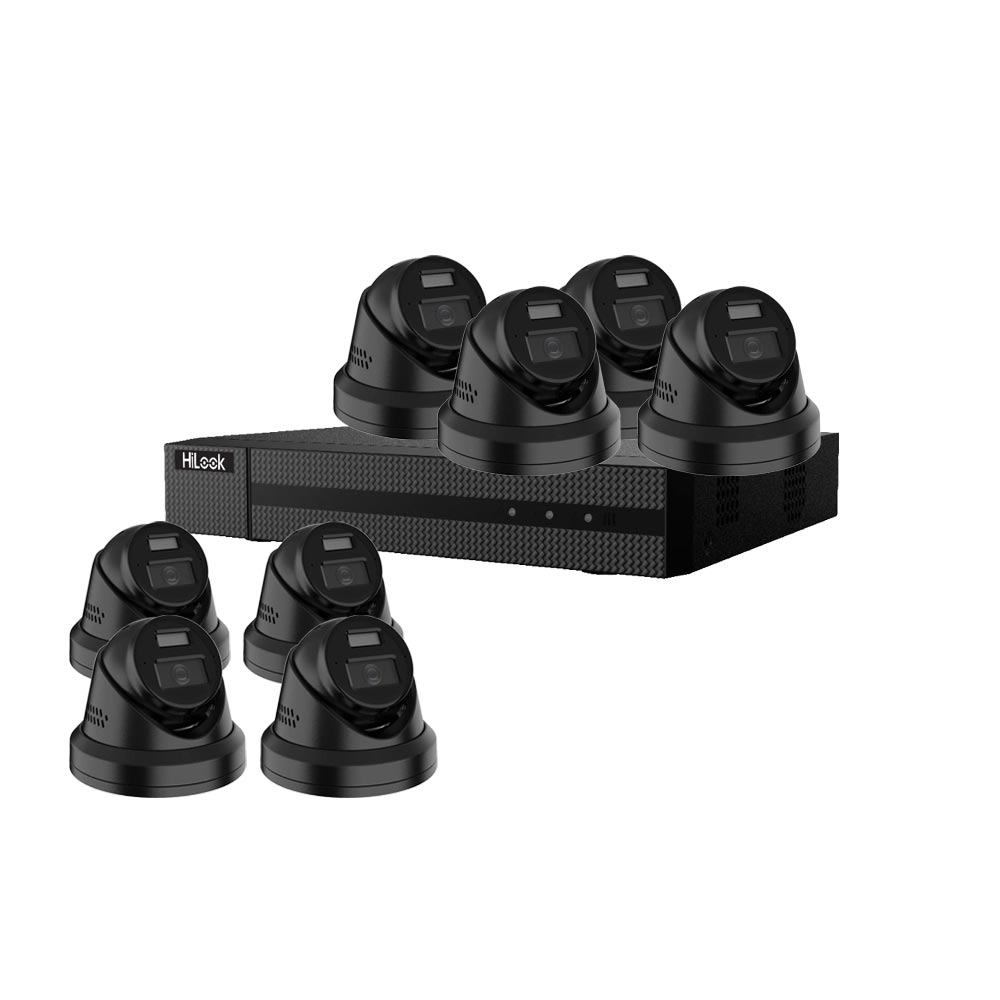

CORE+ 8 Camera 12MP Dual Light PoE Kit with HiLook by Hikvision Pro Series 8ch NVR (2 Way Audio) in Black

About the CORE+ 12MP 8-Camera IP CCTV Kit (Black)

This fully populated black-finish kit pairs eight CORE+ IPC-2120B-HT 12 megapixel turret cameras with the HiLook Pro Series HL-NVR-108MH-K-8P 8-channel PoE NVR. Every PoE port on the recorder is in use, giving you a complete, high-resolution system covering the full perimeter and key internal points of a larger property, commercial site, or multi-zone installation. The consistent matte black finish across all eight cameras creates a professional, cohesive appearance that suits contemporary architecture and customers for whom the visual impact of the cameras on the building matters as much as their technical capability.

Eight IPC-2120B-HT cameras at 12 megapixels each represents a formidable total surveillance capability. The 2.8 mm lens provides a 113-degree horizontal field of view per camera, and at 4096 x 3072 pixels each, identification-quality detail is available across every camera position in the system. A large commercial premises with a car park, yard, perimeter gates, loading dock, and main and secondary entrances can cover all of those zones within the eight-camera deployment. At this resolution, a single camera covering a car park entrance can both monitor the general area and capture the registration plate of every vehicle entering or leaving without needing a separate ANPR-specific camera for the purpose.

The HL-NVR-108MH-K-8P manages all eight channels with 80 Mbps incoming bandwidth and H.265+ compression, keeping storage demands in check at high resolution. A single hard drive up to 16 TB provides long recording retention, and the independent HDMI (4K) and VGA outputs allow two separate monitoring screens to be driven at the same time. Eight-channel simultaneous playback means a full system review can be conducted across all cameras at once, without needing to select individual channels. The Hik-Connect app provides remote access to all eight cameras for live view, event playback, and push notifications.

Smart Dual Light in each camera provides day-to-night transitions without any manual intervention. Infrared illumination operates silently and invisibly up to 30 metres, while white light activates on detection for colour night imagery and a visible deterrent response. Running eight cameras with Motion Detection 2.0 human and vehicle classification means the event log remains meaningful at scale: instead of receiving alerts from all eight cameras continuously through the night, the system filters to notify on actual people and vehicles, making it practical to monitor an 8-camera system from a smartphone without being overwhelmed.

Eight built-in microphones and eight 95 dB speakers across the system provide full two-way audio coverage at every camera position. For a business operating across a large site, this means an on-duty manager or security operator can address any external area from the Hik-Connect app without being physically present. For a commercial landlord or facilities manager responsible for a large property, the ability to speak to and listen at eight independent locations represents a meaningful increase in operational capability over a passive recording-only system.

Each camera has IP67 weatherproofing in a metal housing, a microSD slot for up to 512 GB of on-board backup recording, and operates from -30 to 60 degrees Celsius. PoE (IEEE 802.3af) powers each camera over its data cable. CORE+ IPC-2120B-HT cameras are confirmed compatible with HiLook Pro Series NVRs and are exclusively available from JMC Secure.

Camera Features

• 12MP resolution (4096 x 3072) in a discreet matte black housing, ideal for low-profile installations
• 2.8 mm fixed lens, horizontal FOV 113° for wide-area coverage from a single camera
• Smart Dual Light with automatic IR and white light switching for 24/7 colour or infrared night vision up to 30 m
• Built-in two-way audio with microphone and 95 dB speaker for live interaction and deterrence via app
• Motion Detection 2.0 with human and vehicle classification to reduce false alarms
• 120 dB WDR with BLC, HLC and 3D DNR for mixed lighting and backlit scenes
• H.265+ compression to reduce storage and bandwidth demands
• MicroSD slot supporting up to 512 GB for on-board backup recording
• IP67 weatherproof metal housing for indoor and outdoor installation
• PoE (802.3af) and DC 12V powered, single-cable installation

Camera Spec

Manufacturers Spec Sheet (PDF)

NVR Features

• 8-channel NVR with 8 built-in PoE ports for true plug-and-play camera connection
• Supports up to 12MP recording resolution per channel
• 80 Mbps incoming bandwidth for smooth multi-camera 4K operation
• H.265+/H.265/H.264+/H.264 video compression for efficient storage
• Independent HDMI (4K) and VGA outputs for simultaneous dual-screen monitoring
• 8-channel simultaneous playback
• 1 SATA interface supporting up to 16 TB HDD
• Remote app access via Hik-Connect for live view, playback, and alerts
• ONVIF compatible for integration with third-party cameras and systems

NVR Spec

Manufacturers Spec Sheet (PDF)
