About the CORE+ 12MP 16-Camera IP CCTV Kit (White)

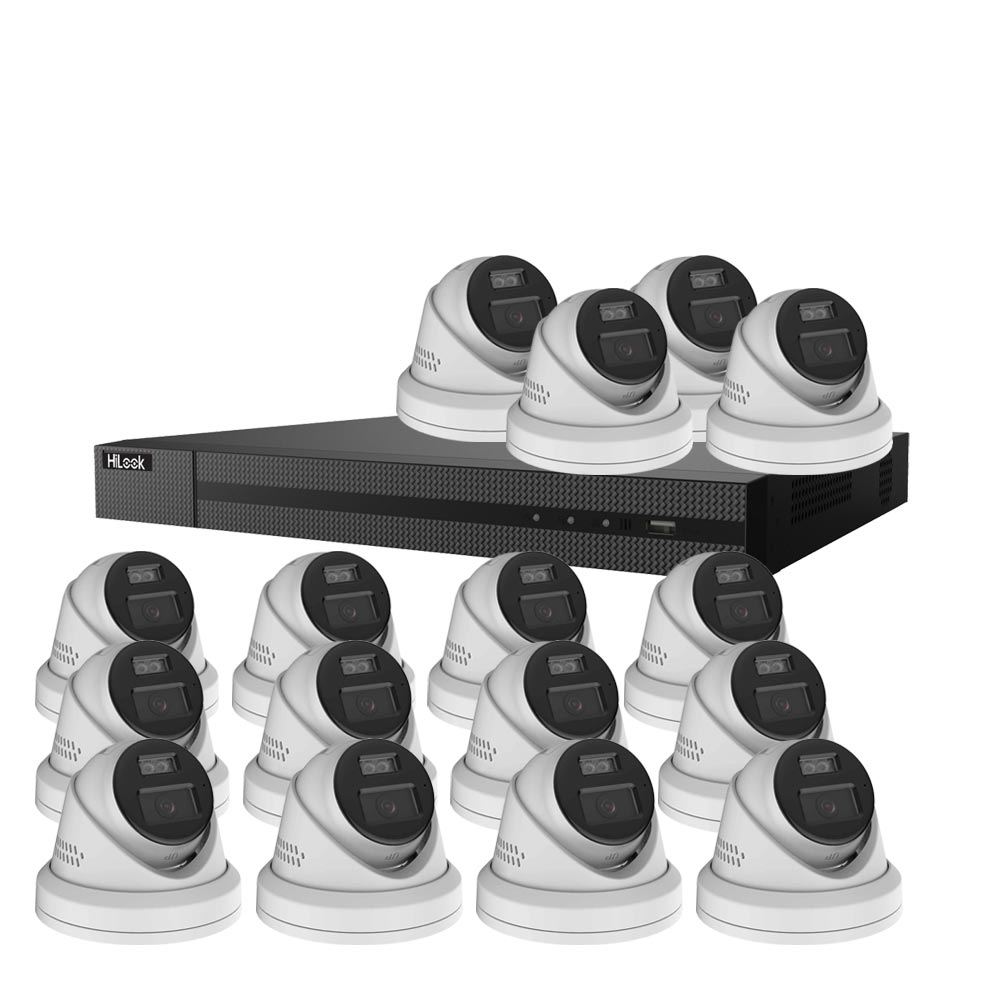

Sixteen CORE+ IPC-2120W-HT 12 megapixel turret cameras with the HiLook Pro Series HL-NVR-216MH-K-16P 16-channel PoE NVR. This is the largest kit in the CORE+ range, a fully populated 16-camera system providing total site coverage for larger commercial, industrial, educational, or multi-building installations. Every port on the NVR is in use, every camera is the same model, and the complete system operates as a unified platform across all sixteen positions from a single recorder. At this scale, the combination of 12 megapixel resolution across sixteen cameras, the NVR's advanced analytics, and the Hik-Connect remote access platform represents a professional surveillance deployment available in a pre-matched kit format.
The HL-NVR-216MH-K-16P is a capable recorder designed for exactly this kind of deployment. With 160 Mbps incoming bandwidth across all sixteen channels, independent HDMI (4K) and VGA outputs, two SATA bays supporting up to 16 TB each, and a 200 W PoE power budget, it handles sixteen 12MP cameras under H.265+ compression without constraint. Decoding capability of 2 channels at 12MP or 4 channels at 8MP in AI mode, with higher throughput in standard mode, means playback and live monitoring remain responsive. The NVR's intelligent analytics platform covers facial recognition with up to 20,000 face images, Motion Detection 2.0 with human and vehicle classification, and Perimeter Protection for virtual zone monitoring, all running across the full sixteen-channel system. Alarm I/O (4 in/1 out) allows integration with external devices such as sirens, access control, or additional security hardware.
Sixteen cameras at 4096 x 3072 pixels each covering 113-degree horizontal fields of view provides comprehensive coverage of a large site with identification-quality imagery across every position. A logistics or distribution site can cover yard perimeters, loading docks, goods-in areas, HGV access routes, staff entrances, and secure storage zones. A school or college campus can monitor all building entrances, car parks, pedestrian routes, sports areas, and boundary fencing. A retail complex can cover shopfronts, internal concourse areas, service yards, and car parks. In each case the resolution of each camera means that footage from any position in the system is usable as evidence without requiring supplementary cameras for detail capture at specific points.
Smart Dual Light across all sixteen cameras provides 24/7 infrared and white light coverage at every position simultaneously. Motion Detection 2.0 in each camera ensures that alerts from sixteen positions remain actionable rather than overwhelming. The NVR's Perimeter Protection extends this with boundary and zone monitoring at device level, adding a detection layer that operates independently of camera-level motion events. Running this level of intelligence across a fully populated 16-camera system means a security operator or site manager receives meaningful, targeted notifications rather than a continuous stream of raw motion alerts from every camera across the site.
All sixteen cameras include built-in two-way audio, providing site-wide interactive coverage. Sixteen microphones recording continuously alongside video and sixteen speakers available for live voice communication from the Hik-Connect app means that no monitored point on the site is beyond reach of an operator. For large sites with shift-based security, remote management, or after-hours monitoring, the ability to address any of sixteen locations from a single app is a significant operational capability that a recording-only system simply cannot provide.
Each IPC-2120W-HT has IP67 weatherproofing in a metal housing, a microSD slot for up to 512 GB of on-board backup recording, and operates from -30 to 60 degrees Celsius. PoE power via IEEE 802.3af per camera, one cable per position. CORE+ cameras are confirmed compatible with HiLook Pro Series NVRs and are exclusively available from JMC Secure.
