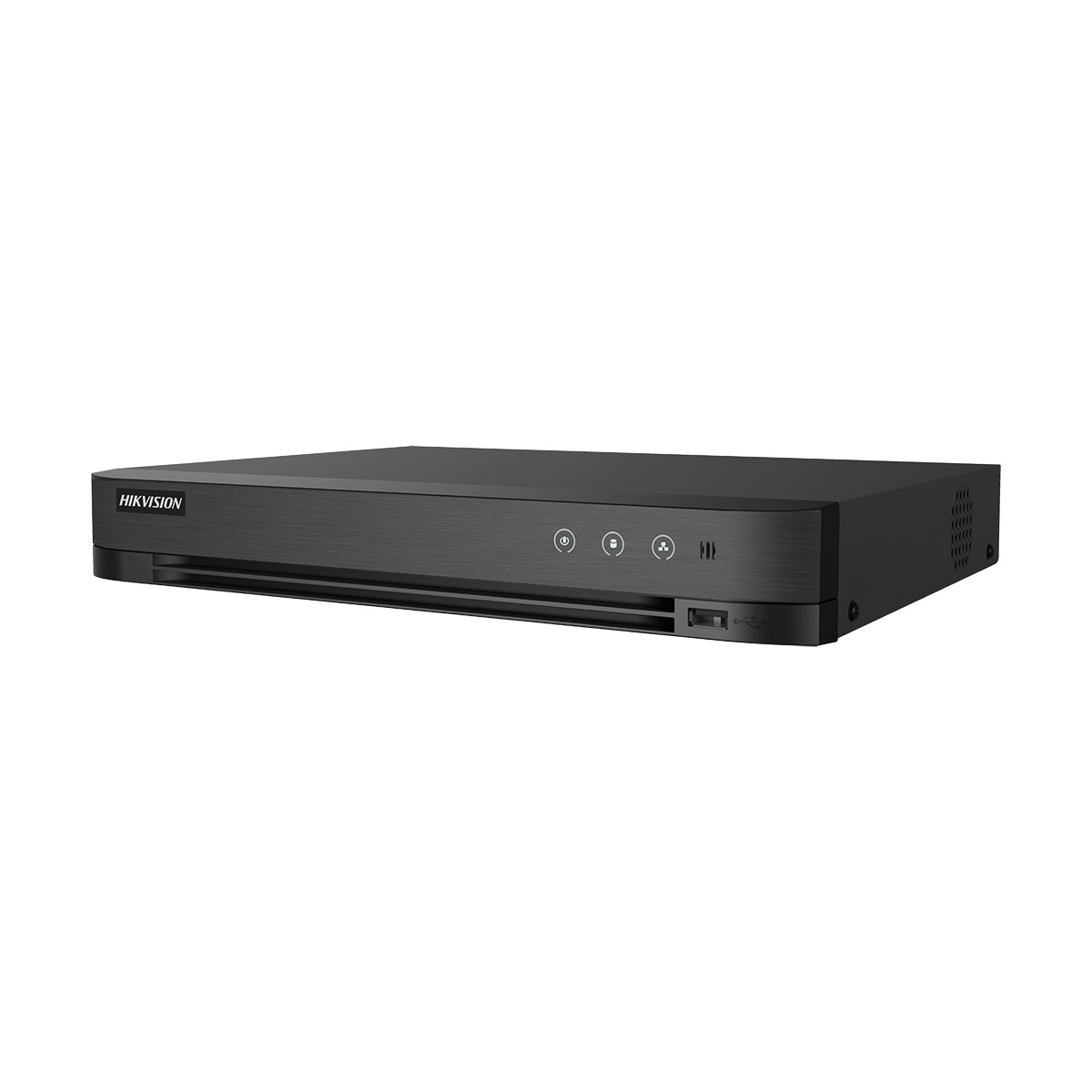

iDS-7204HQHI-M1-XT Hikvision 4 Channel 1080P HD TVI AcuSense DVR

Product ID iDS-7204HQHI-M1-XT

Trade Only Item

iDS-7204HQHI-M1-XT Hikvision 4 Channel 1080P HD TVI AcuSense DVR

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Dimensions

About the iDS-7204HQHI-M1-XT

The iDS-7204HQHI-M1-XT is a Hikvision 4 channel AcuSense DVR for HD-TVI (coax) CCTV systems, recording up to 1080p.

AcuSense filters out alerts caused by rain, leaves and animals, so you're only alerted to people and vehicles.

It works with TVI, AHD, CVI and analogue cameras, and can take IP cameras too. The hard drive isn't included. It works with the free Hik-Connect app.

iDS-7204HQHI-M1-XT Key Features

4-channel 1080p 1U AcuSense Turbo HD DVR, 1x SATA bay up to 10TB
Deep learning Motion Detection 2.0 all 4 analogue channels, human and vehicle classification
Perimeter Protection up to 2-ch (advanced model), Facial Recognition 1-ch, AcuSearch smart playback
5-in-1 signal input adaptively: HDTVI/AHD/CVI/CVBS, with IP camera support also available
HDTVI recording up to 3K/5MP Lite@12fps, 1080p@15fps (25/30fps in 1080p Lite mode), H.265 Pro+ compression
HDMI and simultaneous VGA output, both up to 1920x1080/60Hz
Hik-Connect, ONVIF, 10/100 Mbps Ethernet, Wi-Fi dongle via USB
12VDC 1.5A, max 18W, 319x236x48mm, under 1.16kg

Download

Manufacturers Spec Sheet (PDF)

Smart Functions
Facial Recognition	1-ch face picture comparison alarm, up to 16 face picture libraries
Perimeter Protection	Up to 2-ch human/vehicle analysis (advanced model)
Motion Detection 2.0	All analogue channels, deep learning human/vehicle classification
AcuSearch	2-ch smart playback
Video and Audio
Analogue Video Input	4-ch BNC (1.0 Vp-p, 75 Ohm), coaxitron connection supported
IP Video Input	2-ch (up to 6-ch), up to 6MP
HDTVI Input	3K@25/20fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
AHD Input	5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
HDCVI Input	3K@25fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
CVBS Input	PAL/NTSC
HDMI Output	1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, simultaneous with VGA
VGA Output	1-ch, 1920x1080/60Hz, simultaneous with HDMI
CVBS Output	1-ch BNC, PAL: 704x576, NTSC: 704x480
Audio Input	1-ch RCA (up to 4-ch optional), 4-ch via coaxial cable
Audio Output	1-ch RCA
Two-Way Audio	1-ch RCA
Synchronous Playback	4-ch
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	3K Lite/5MP Lite/4MP Lite/1080p/720p/VGA/WD1/4CIF/CIF
Frame Rate	Main: 3K/5MP Lite@12fps, 4MP Lite/1080p@15fps, 720p/WD1/CIF@20fps. Sub: WD1/4CIF@12fps, CIF@25/30fps
Video Bitrate	32 Kbps to 6 Mbps
Network
Total Bandwidth	72 Mbps
Network Interface	1x RJ45 10/100 Mbps self-adaptive Ethernet
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Remote Connections	32
Wi-Fi	Via USB Wi-Fi dongle
Interfaces and General
SATA	1x SATA, up to 10TB per disk
USB	Front: 1x USB 2.0, Rear: 1x USB 2.0
Serial	RS-485 (half-duplex)
Alarm In/Out	N/A (optional)
Power Supply	12VDC, 1.5A
Max Consumption	18W
Working Temperature	-10°C to 55°C

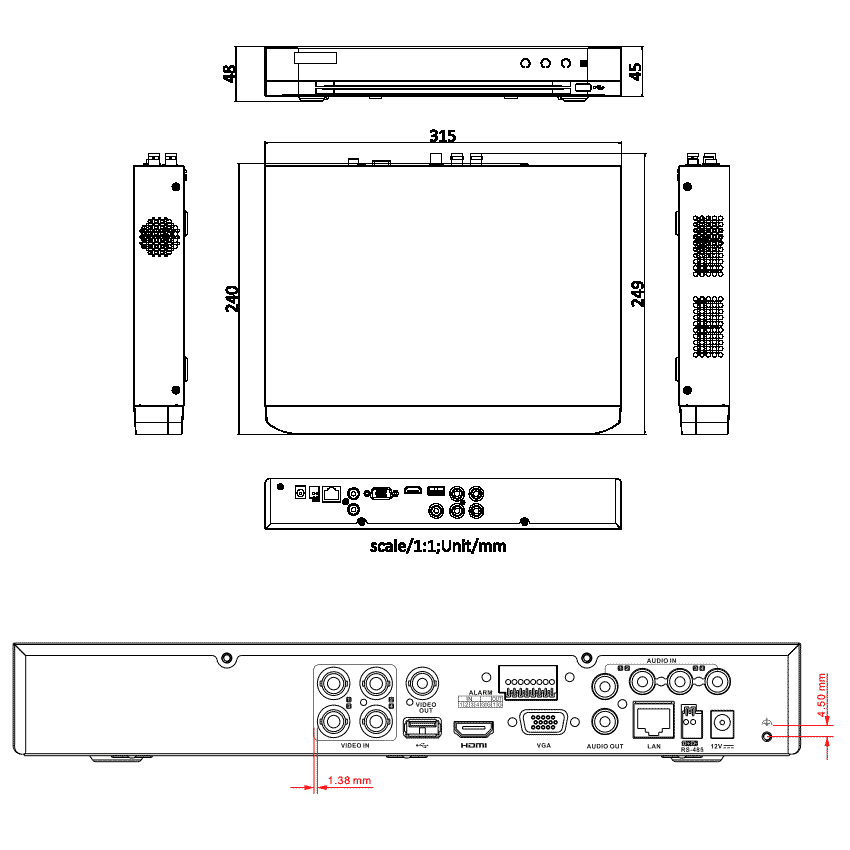

Dimensions (W x D x H)	319 x 236 x 48mm
Weight	Under 1.16kg
