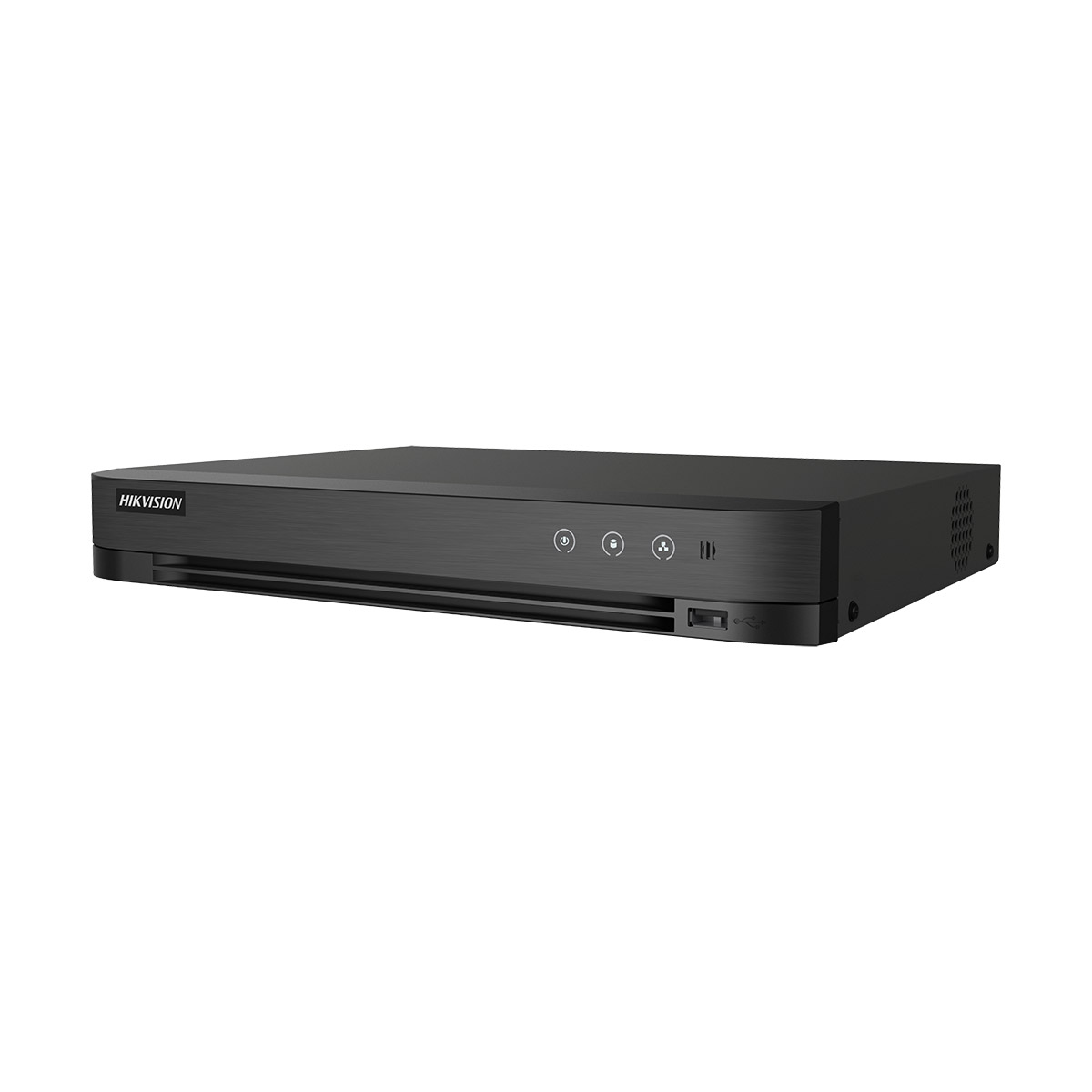

iDS-7204HUHI-M1/XT Hikvision 4 Channel TVI 5MP AcuSense DVR (AoC)

Product ID iDS-7204HUHI-M1-XT

Trade Only Item

iDS-7204HUHI-M1/XT Hikvision 4 Channel TVI 5MP AcuSense DVR (AoC)

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Dimensions

About the iDS-7204HUHI-M1-XT

The Hikvision iDS-7204HUHI-M1/XT is a 4-channel, 5MP AcuSense Turbo HD DVR built around Hikvision's deep learning engine. It combines analogue HD recording with AI-powered smart detection, making it a significant step up from conventional motion-detection DVRs while keeping the simplicity of a coaxial cable infrastructure.

AcuSense technology provides deep learning-based Motion Detection 2.0 across all 4 analogue channels, classifying moving targets as human or vehicle and discarding irrelevant motion triggers such as swaying foliage or passing headlights. Perimeter Protection (line crossing, intrusion detection) is available on up to 4 channels in the advanced model, and facial recognition supports up to 2 channels with face picture comparison and search against up to 16 stored face picture libraries. AcuSearch intelligent playback allows quick retrieval of footage by target type rather than scrubbing through hours of recording.

The DVR accepts 4 analogue inputs via BNC, with 5-in-1 signal compatibility across HDTVI, AHD, CVI, CVBS and IP. HDTVI encoding reaches up to 4K/8MP at 8fps on channel 1, and 3K/5MP at 12fps across all channels, with H.265 Pro+ compression dramatically reducing storage consumption versus older H.264 systems. Up to 6 IP cameras can be connected simultaneously (expandable to 8 in enhanced IP mode), each up to 8MP, giving installers the flexibility to blend analogue and IP cameras on the same recorder.

Output is via HDMI at up to 2K (2560x1440) and simultaneous VGA, both at 1080p/60Hz. A single SATA bay supports up to 12TB, and the unit connects over a 10/100 Mbps Ethernet interface with support for Hik-Connect remote access, DDNS, ONVIF and the full range of Hikvision network protocols. USB ports are provided front and rear for mouse, backup and Wi-Fi dongle support. Powered by 12VDC at 1.5A, the unit measures 319x235x48mm and weighs under 1.16kg.

iDS-7204HUHI-M1-XT Key Features

4-channel 5MP 1U AcuSense Turbo HD DVR, 1x SATA bay (up to 12TB)
Deep learning Motion Detection 2.0 on all 4 analogue channels, human and vehicle classification
Perimeter Protection up to 4-ch (advanced model), Facial Recognition up to 2-ch, AcuSearch smart playback
5-in-1 signal input: HDTVI/AHD/CVI/CVBS/IP, up to 6-ch IP cameras (up to 8-ch enhanced mode)
HDTVI encoding up to 8MP@8fps (ch1), 3K/5MP@12fps all channels, H.265 Pro+ compression
HDMI output up to 2K (2560x1440), simultaneous VGA output
Hik-Connect remote access, ONVIF, 10/100 Mbps Ethernet, Wi-Fi dongle support via USB
12VDC 1.5A, max 10W (without HDD), 319x235x48mm, under 1.16kg

Download

Manufacturers Spec Sheet (PDF)

Smart Functions
Facial Recognition	Up to 2-ch face picture comparison alarm (HD analog camera), up to 16 face picture libraries
Perimeter Protection	Up to 4-ch human/vehicle analysis (advanced model)
Motion Detection 2.0	All analogue channels, deep learning human/vehicle classification
AcuSearch	4-ch smart playback by target type
Video and Audio
Analogue Video Input	4-ch, BNC (1.0 Vp-p, 75 Ohm), coaxitron connection supported
IP Video Input	2-ch standard (up to 6-ch, or up to 8-ch enhanced mode), each up to 8MP
HDTVI Input	8MP@8/12fps (ch1 only), 3K@25/20fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
AHD Input	5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
HDCVI Input	8MP@12/15fps, 3K@25fps, 5MP@20fps, 4MP@25/30fps, 1080p/720p@25/30fps
CVBS Input	PAL/NTSC
HDMI Output	1-ch, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, simultaneous with VGA
VGA Output	1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, simultaneous with HDMI
CVBS Output	1-ch, BNC, PAL: 704x576, NTSC: 704x480
Audio Input	1-ch RCA (2.0 Vp-p, 1 KOhm), 4-ch via coaxial cable
Audio Output	1-ch RCA (Linear, 1 KOhm)
Two-Way Audio	1-ch RCA (using first audio input)
Synchronous Playback	4-ch
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main: 8MP@8fps (ch1), 3K@12fps, 5MP@12fps, 4MP@15fps, 1080p/720p@25fps(P)/30fps(N). Sub: WD1/4CIF/CIF@25/30fps
Video Bitrate	32 Kbps to 10 Mbps
Audio Compression	G.711u, 64 Kbps
Network
Total Bandwidth	96 Mbps
Network Interface	1x RJ45 10/100 Mbps self-adaptive Ethernet
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Remote Connections	32
Wi-Fi	Via USB Wi-Fi dongle
Interfaces and General
SATA	1x SATA, up to 12TB per disk
USB	Front: 1x USB 2.0, Rear: 1x USB 3.0
Serial	RS-485 (half-duplex)
Alarm In/Out	N/A (optional)
Power Supply	12VDC, 1.5A
Max Consumption	10W (without HDD)
Working Temperature	-10°C to 55°C
Working Humidity	10% to 90%

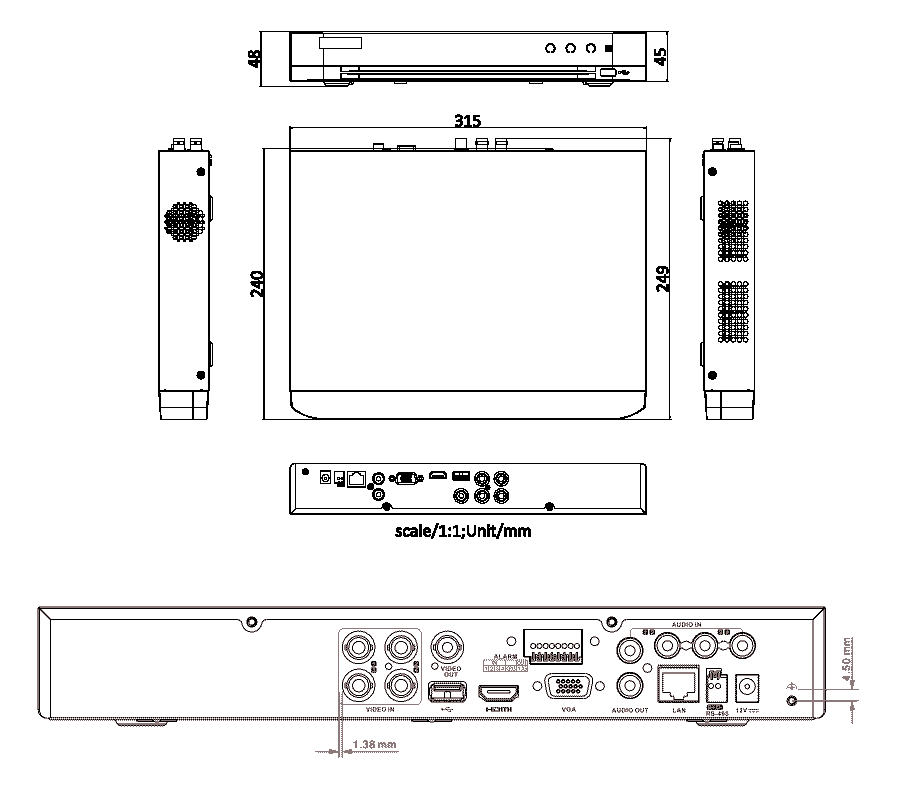

Dimensions (W x D x H)	319 x 235 x 48mm
Weight	Under 1.16kg
