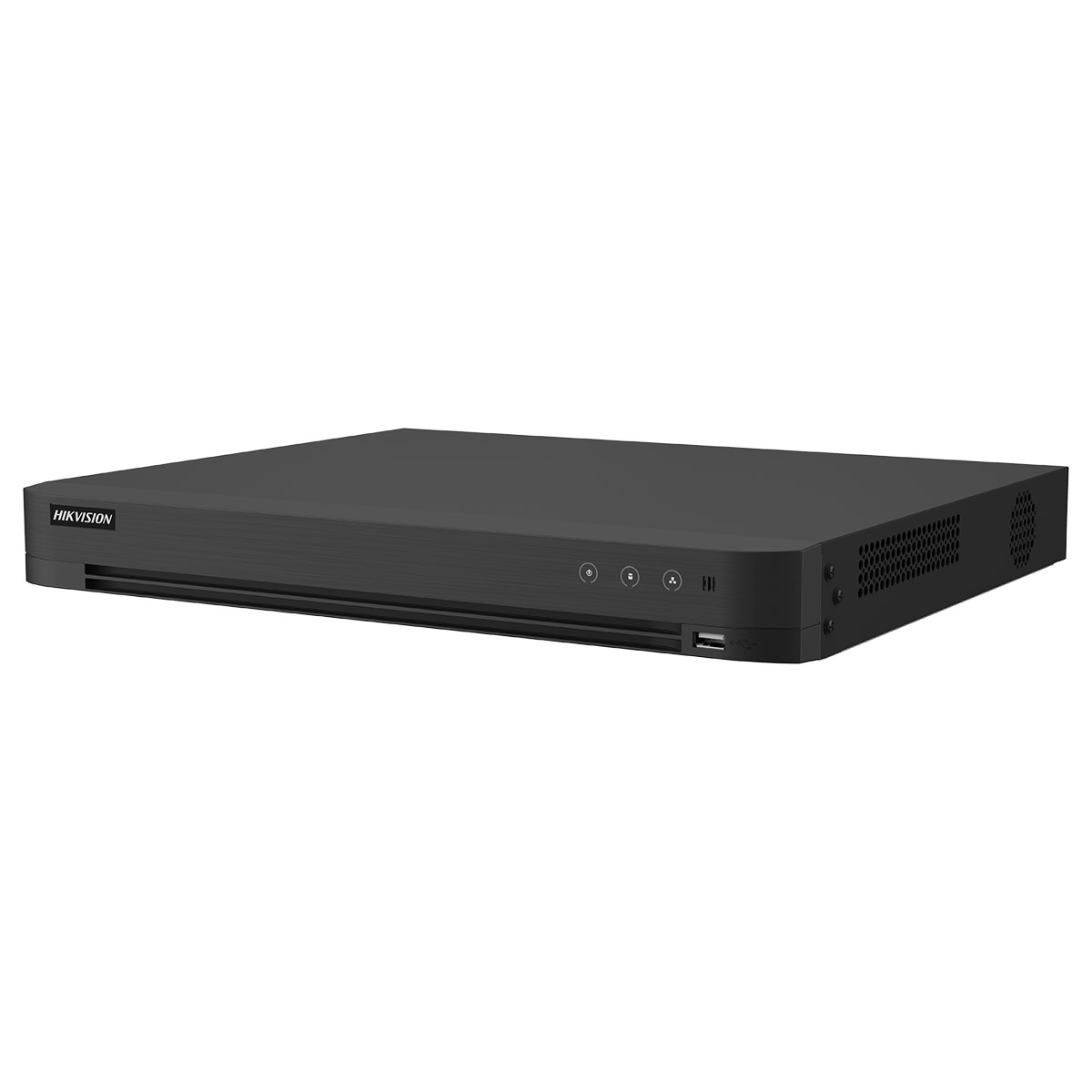

About the iDS-7208HUHI-M2-PXT
The Hikvision iDS-7208HUHI-M2/PXT is an 8-channel 8MP AcuSense Turbo HD DVR with Power over Coaxial (PoC) support and two SATA bays, combining the ability to power PoC cameras directly over coaxial cable with significantly expanded on-site storage capacity. It is the 8-channel PoC option for larger analogue HD installations requiring both convenient PoC camera cabling and extended recording retention.
PoC support across all BNC inputs allows compatible Hikvision cameras to be powered without separate power cables at each camera position, reducing installation time and simplifying cable management - particularly valuable on commercial sites, in ceilings, or in existing conduit routes where adding a second cable is difficult. Two SATA bays allow up to 12TB per drive, giving up to 24TB total on-site storage for extended recording retention periods.
AcuSense deep learning delivers Motion Detection 2.0 across all 8 analogue channels, Perimeter Protection on up to 8 channels in the advanced model, and Facial Recognition on up to 4 channels with searchable face picture libraries. Up to 16 IP cameras can be mixed with the 8 analogue inputs (each up to 8MP). HDTVI encoding reaches 8MP at 8fps and 3K/5MP at 12fps, with H.265 Pro+ compression. 4K HDMI output, Gigabit Ethernet, Hik-Connect remote access and ONVIF/ISUP protocol support are standard.

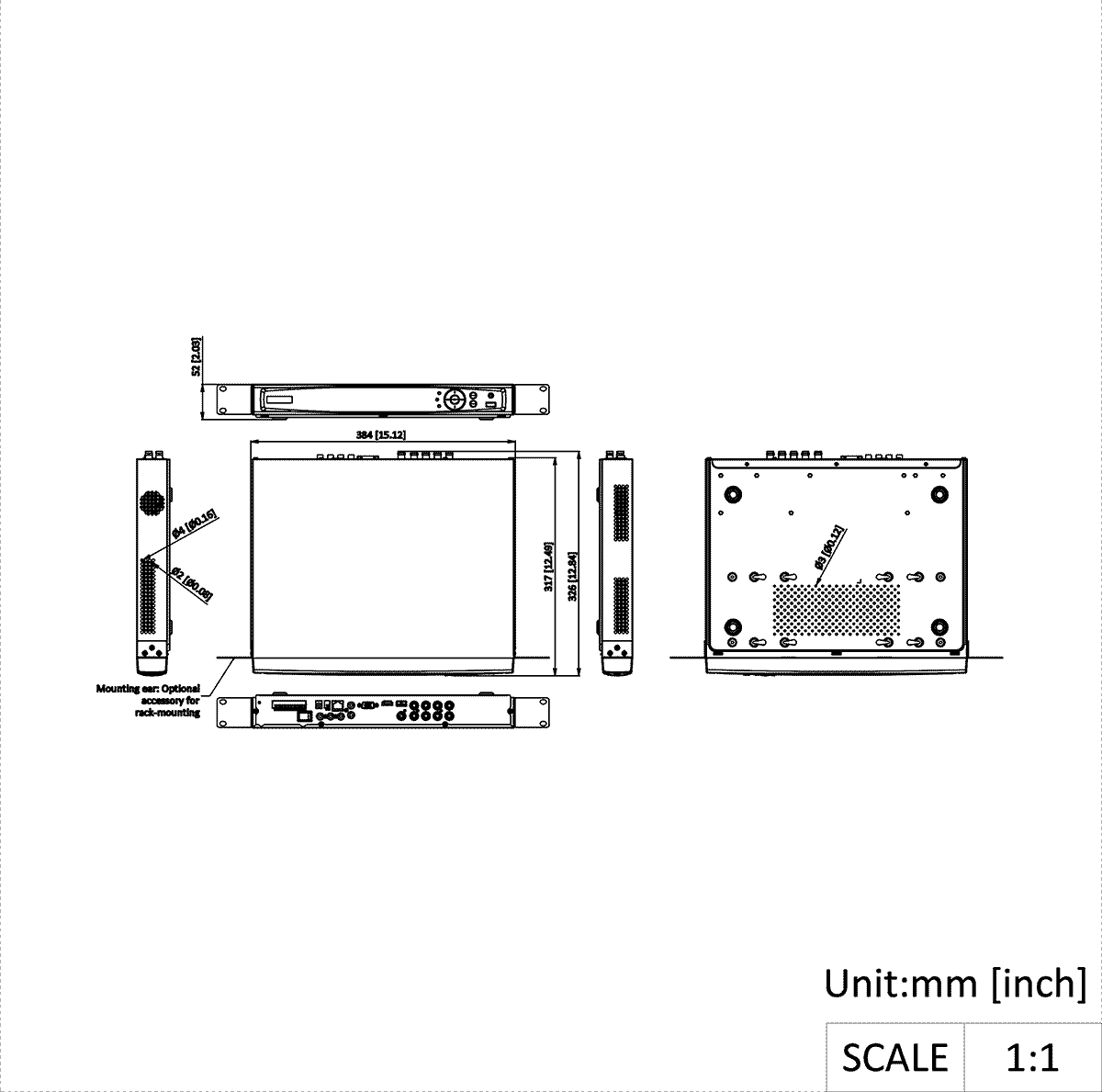

Powered by 12VDC, dimensions 385x315x52mm (wider chassis to accommodate 2 SATA bays and PoC circuitry), weight under 2.1kg.
iDS-7208HUHI-M2-PXT Key Features
- 8-channel 8MP 1U AcuSense Turbo HD DVR with Power over Coaxial (PoC) and 2x SATA bays (up to 24TB total)
- PoC support all BNC inputs, powers compatible Hikvision PoC cameras over coaxial cable
- Deep learning Motion Detection 2.0 all 8 analogue channels, Perimeter Protection up to 8-ch (advanced model)
- Facial Recognition up to 4-ch, AcuSearch smart playback, up to 16 face picture libraries
- 5-in-1 signal input: HDTVI/AHD/CVI/CVBS/IP, up to 16-ch IP cameras each up to 8MP
- HDTVI encoding up to 8MP@8fps, 3K/5MP@12fps, H.265 Pro+ compression
- 4K HDMI output (3840x2160/30Hz), simultaneous VGA, Gigabit Ethernet, Hik-Connect, ONVIF, ISUP
- 12VDC, 385x315x52mm, under 2.1kg
Download
Manufacturers Spec Sheet (PDF)
