| Video / Audio Input |
| Audio Input |
4ch |
| Video compression |
H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI Video Input |
8CH; BNC interface (1.0Vp-p, 75 Ω) |
| Supported Camera Types |
Support HDTVI input: 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Supports Hikvision PoC camera
Note: Do not unplug or plug the PoC camera if it is powered by the external power supply |
| Audio compression |
G.711u |
| Audio input |
4ch RCA (2.0 Vp-p, 1 KΩ) |
| Video / Audio Output |
| CVBS output |
1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576 |
| HDMI / VGA output |
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording resolution |
5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate |
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate |
32 Kbps - 6 Mbps |
| Stream type |
Video, Video & Audio |
| Audio output |
1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate |
64 Kbps |
| Dual-stream |
Support |
| Synchronous playback |
8ch |
| Network Management |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS,ONVIF |
| Hard Disk |
| SATA |
2 SATA interface |
| Capacity |
Up to 8 TB capacity for each disk |

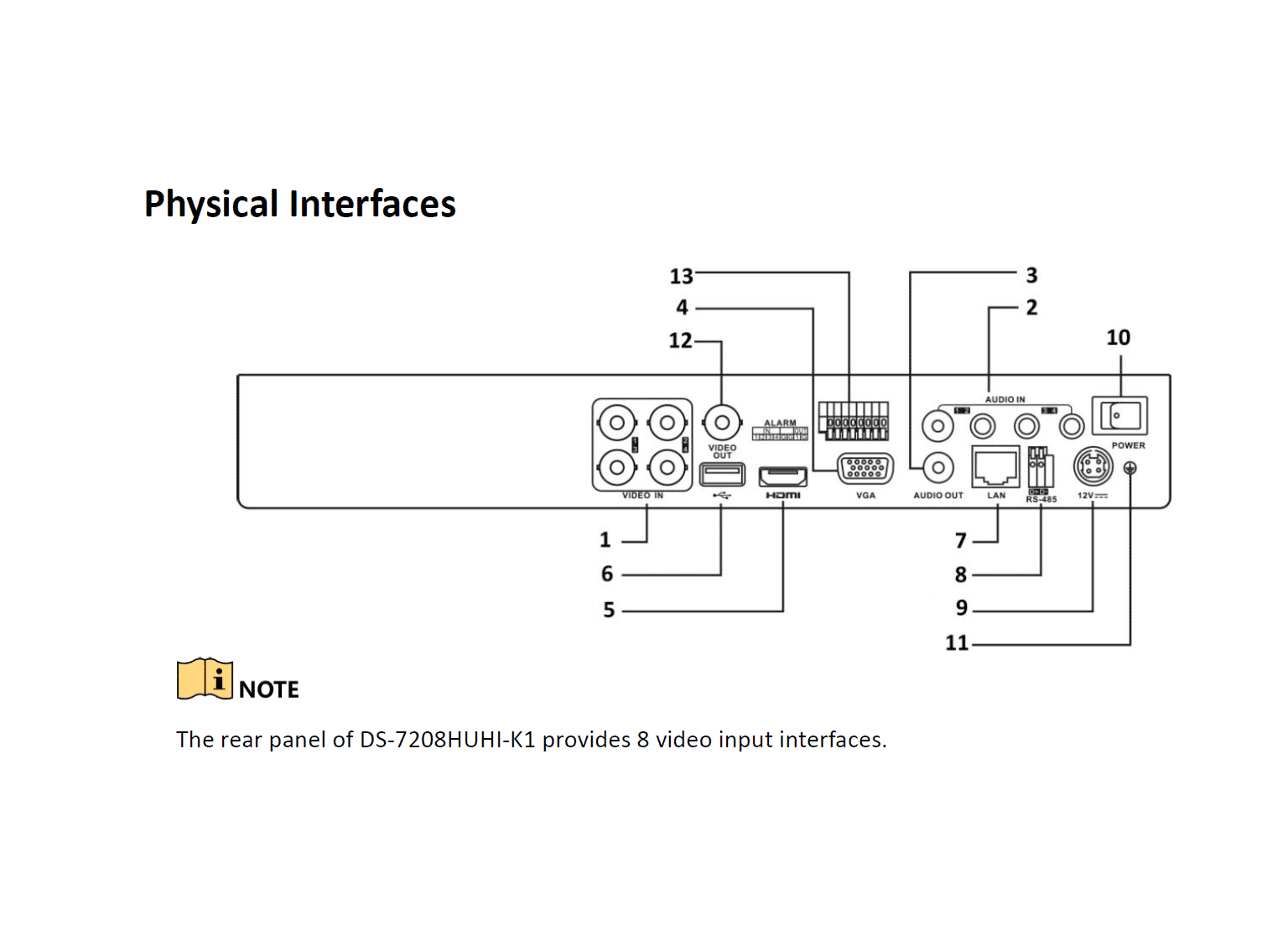

| External Interface |
| Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
| USB interface |
1 x USB 2.0, 1 x USB 3.0 |
| Serial interface |
1; standard RS-485 serial interface, half-duplex |
| Alarm Input |
8 |
| Alarm Output |
4 |
| General |
| Power supply |
48v DC |
| Consumption |
Max 60W |
| Working temperature |
-10 °C ~ +55 °C |
| Working humidity |
10% ~ 90% |
| Dimensions (W x H x D) |
380 × 320 × 48 mm |
| Weight |
Approx. 2Kg |
