About the iDS-7216HUHI-M2-XT
The Hikvision iDS-7216HUHI-M2/XT is a 16-channel 8MP AcuSense Turbo HD DVR with two SATA bays, designed for larger analogue HD installations requiring high channel capacity, AI-powered smart detection and substantial on-site storage. It provides the full AcuSense deep learning suite across all 16 analogue channels.
Motion Detection 2.0 operates on all 16 analogue channels simultaneously, classifying targets as human or vehicle and reducing false alarms caused by irrelevant environmental movement. Perimeter Protection is available on up to 8 channels in the advanced model, and Facial Recognition with face picture comparison, search and capture is supported on up to 4 channels against up to 16 stored face picture libraries. AcuSearch smart playback supports up to 8 channels simultaneously for rapid event retrieval.
HDTVI encoding reaches 8MP at 8fps, 3K/5MP at 12fps, 4MP at 15fps and full 1080p/720p at 25/30fps. HDMI output supports 4K (3840x2160) at 30Hz with simultaneous VGA. Two SATA bays accept up to 12TB each for up to 24TB total capacity. Gigabit Ethernet, 256 Mbps total bandwidth, and up to 128 remote connections are supported, alongside Hik-Connect, ONVIF and ISUP.

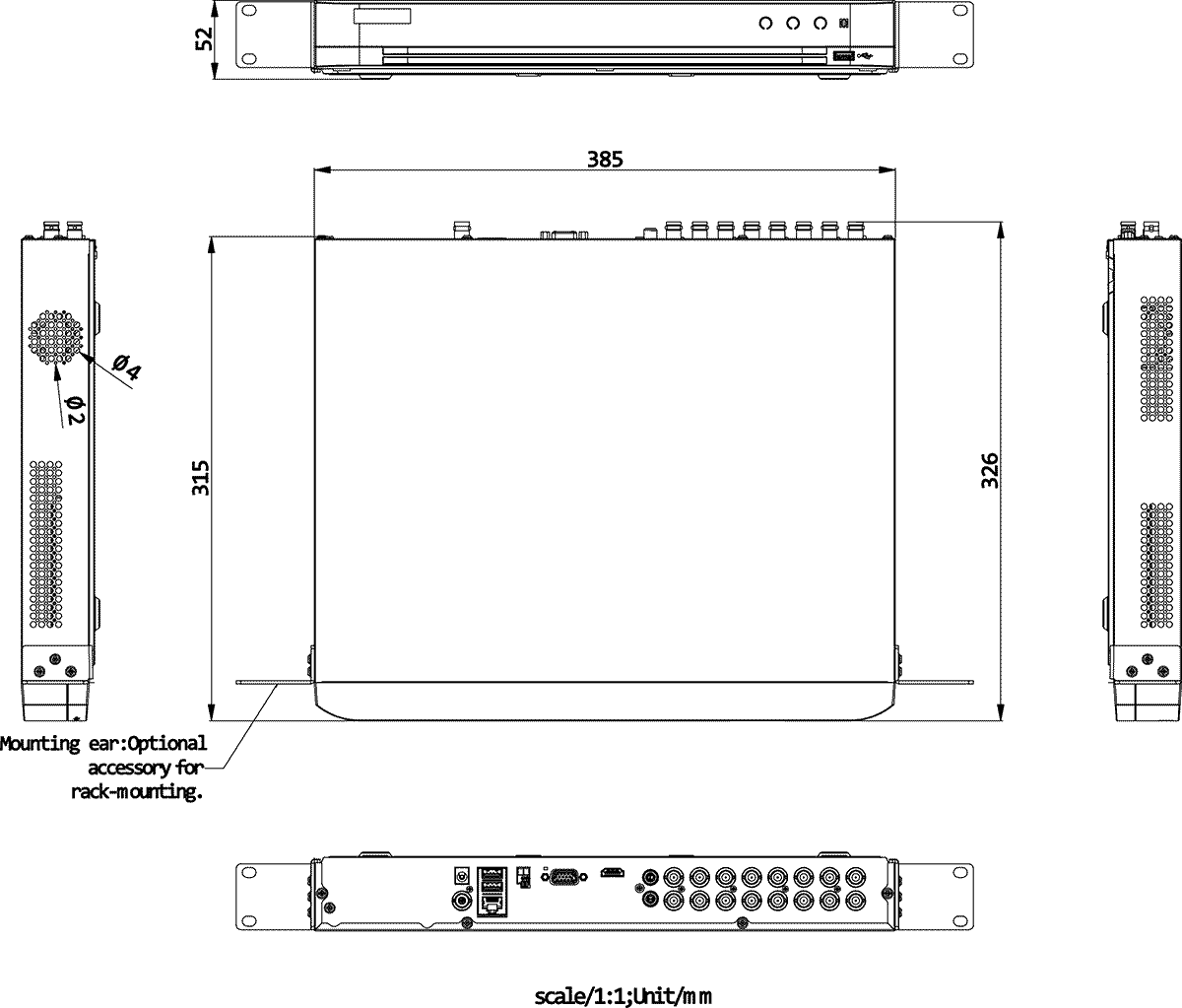

Powered by 12VDC 5A, maximum 60W. Dimensions 385x315x52mm, weight under 2.1kg.
The DVR will also accept IP cameras alongside the analogue inputs if needed, useful for occasional one-off additions, though for an IP-only or IP-heavy install we'd recommend a dedicated NVR for better performance and feature support.
iDS-7216HUHI-M2-XT Key Features
- 16-channel 8MP 1U AcuSense Turbo HD DVR, 2x SATA bays (up to 24TB total)
- Deep learning Motion Detection 2.0 all 16 analogue channels, human and vehicle classification
- Perimeter Protection up to 8-ch (advanced model), Facial Recognition up to 4-ch, AcuSearch up to 8-ch smart playback
- 5-in-1 signal input adaptively: HDTVI/AHD/CVI/CVBS, with IP camera support also available
- HDTVI encoding up to 8MP@8fps, 3K/5MP@12fps, 4MP@15fps, H.265 Pro+ compression
- 4K HDMI output (3840x2160/30Hz), simultaneous VGA, up to 24-ch 1080p@30fps decoding
- Gigabit Ethernet, 256 Mbps bandwidth, 128 remote connections, Hik-Connect, ONVIF, ISUP
- 12VDC 5A, max 60W, 385x315x52mm, under 2.1kg
