DS-7216HUHI-K2/P Hikvision 16 Channel 5MP / 1080P HD-TVI Hybrid DVR with CVBS (PoC)

Product ID DS-7216HUHI-K2-P

0 reviews | Write a review

Trade Only Item

DS-7216HUHI-K2/P Hikvision 16 Channel 5MP / 1080P HD-TVI Hybrid DVR with CVBS (PoC)

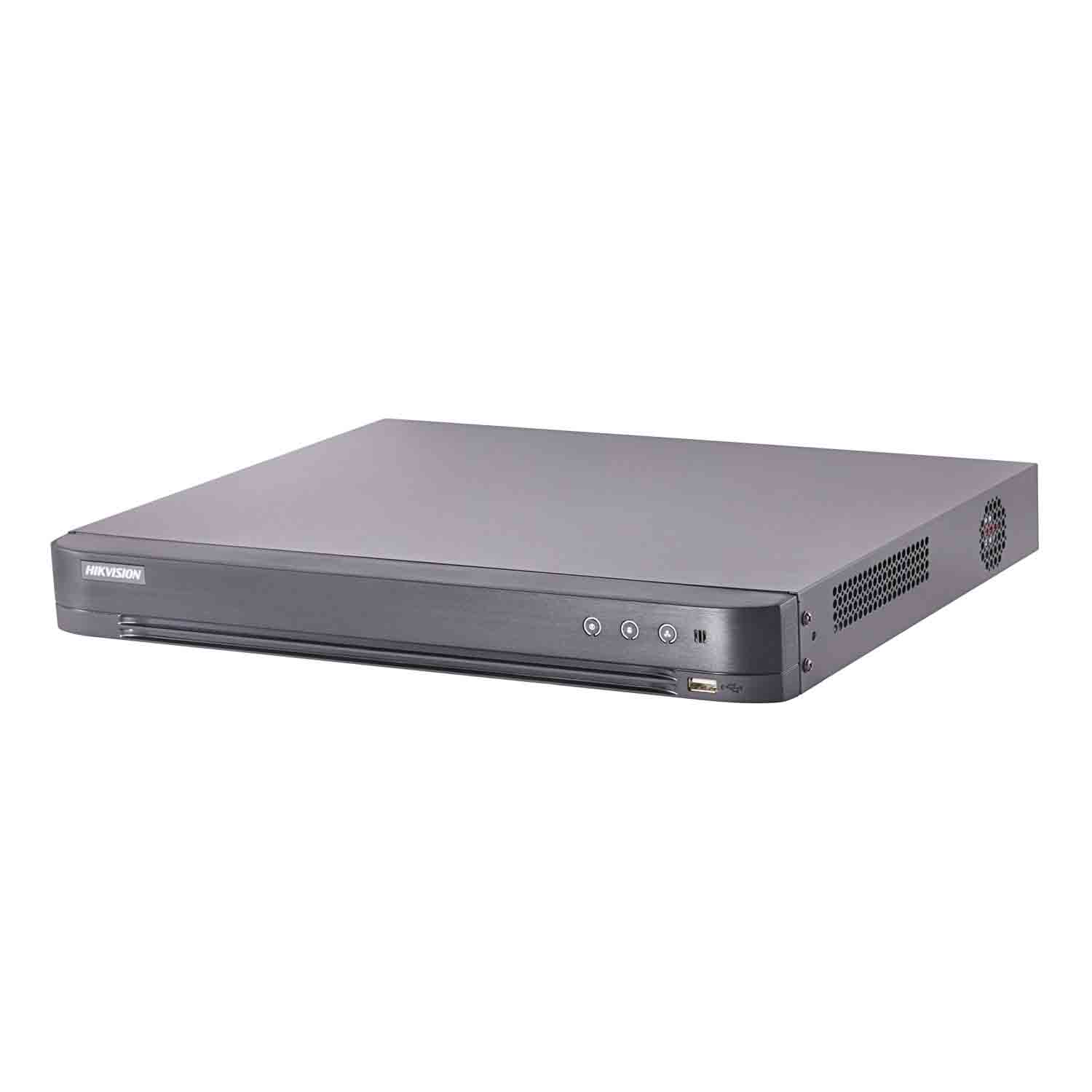

DS-7216HUHI-K2/P Hikvision 16 Channel 5MP / 1080P HD-TVI Hybrid DVR with CVBS (PoC) #1

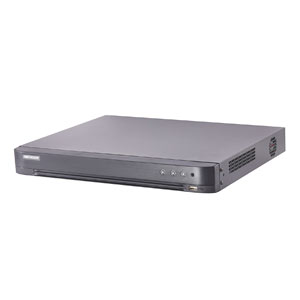

DS-7216HUHI-K2/P Hikvision 16 Channel 5MP / 1080P HD-TVI Hybrid DVR with CVBS (PoC) #2

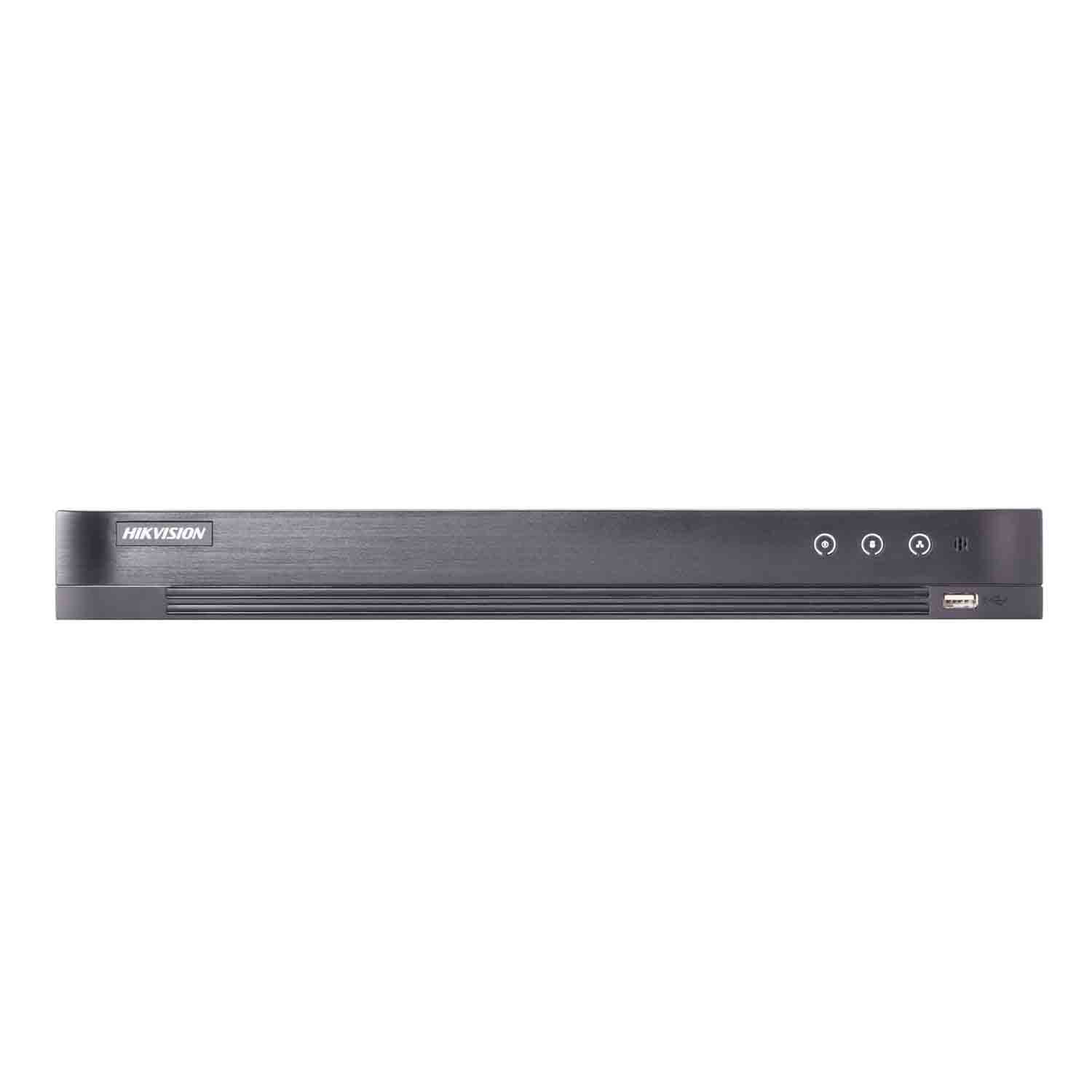

DS-7216HUHI-K2/P Hikvision 16 Channel 5MP / 1080P HD-TVI Hybrid DVR with CVBS (PoC) #3

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Diagram

Key Features

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
Connectable to 8ch x H.265+/H.265/H.264+/H.264 IP cameras
Up to 5 MP resolution for recording
Automatic power supply management for PoC camera to guarantee safety
HDMI output at up to 4K (3840 × 2160) resolution
Long transmission distance over coax cable
Support up to 16-ch synchronous playback at 1080P resolution
Internet & Smart Phone compatible

Download

Manufacturers Spec Sheet (PDF)

Video / Audio Input
Audio Input	4ch
Video compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI Video Input	16CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Camera Types	Support HDTVI input: 8Mp,5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio compression	G.711u
Audio input	4ch RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
CVBS output	1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576
HDMI / VGA output	VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution	8MP / 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate	Main stream: 8MP @ 8fps / 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps - 10 Mbps
Stream type	Video, Video & Audio
Audio output	1-ch, RCA (Linear, 1KΩ)
Audio bit rate	64 Kbps
Dual-stream	Support
Playback Resolution	5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous playback	16ch
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-connect,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk
SATA	2 SATA interface
Capacity	Up to 8 TB capacity for each disk
External Interface
Network interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB interface	1 x USB 2.0, 1 x USB 3.0
Serial interface	RS-485, half-duplex
Alarm in / out	4 / 1
General
Power supply	12v DC
Consumption	Max 140W
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Dimensions (W x H x D)	380 × 320 × 48 mm
Weight	Approx. 3.8Kg
