Hikvision 4K 4-Camera Smart Hybrid ColorVu PoC & AoC CCTV Kit in Black (2.8mm Lens)

About the Hikvision 4K 4-Camera ColorVu PoC CCTV Kit in Black

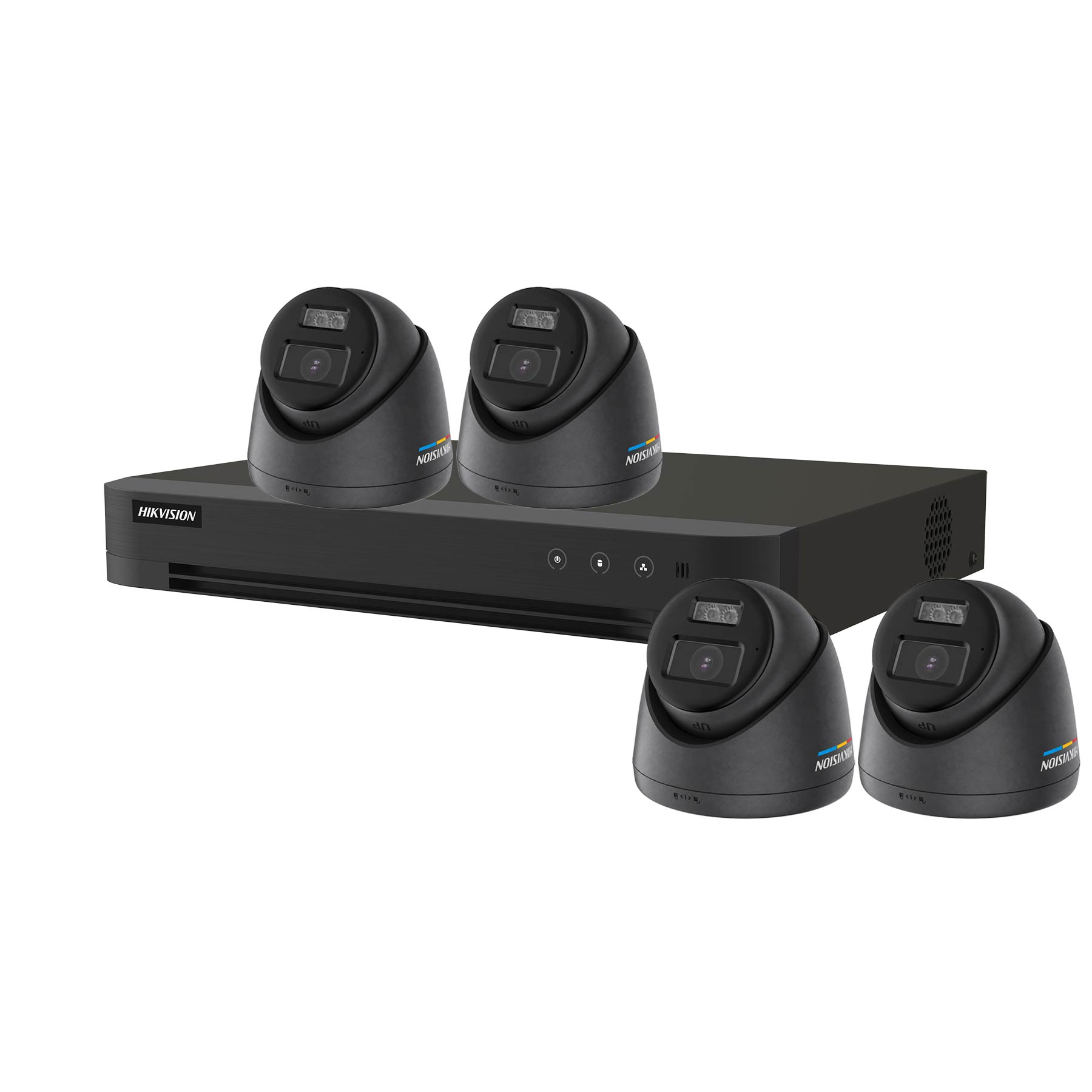

Four black DS-2CE72UF3T-LSYE-B ColorVu Smart Hybrid Light turrets and the iDS-7204HTHI-M1-PXT 4K AcuSense PoC DVR, covering the classic four-corner layout on properties where the cameras need to sit quietly against dark exteriors. Builds with black detailing, timber-clad extensions, and period properties all take the black housing far more gracefully than white, and on a commercial frontage it reads as considered rather than bolted on. All four BNC inputs deliver PoC to the PoC.at cameras, so the whole system runs on four single-cable RG59 legs with no camera-end power anywhere, and no shared PSU to fault-find when one leg goes down.

Each camera brings the full ColorVu specification in the darker shell: F1.0 optics holding colour at 0.0005 lux, true 130 dB WDR keeping faces readable against bright sky and glazing, and Smart Hybrid Light offering 40 m of white light, 40 m of IR, or the smart combination where IR patrols and white light fires on detection. From a black camera that last mode is especially effective, the unit stays anonymous right up to the moment it lights the scene. Built-in microphones put synchronised audio on all four channels over the coax, and the IP67, NEMA 4X housings shrug off weather and salt air alike.

The HTHI is the top-tier 4K recorder in the Turbo HD range and the reason this kit outperforms cheaper 4-channel bundles: it encodes full 8MP at 15 fps on all four channels simultaneously, so nothing is throttled back. AcuSense classifies people and vehicles on every channel, with up to 4-channel advanced perimeter protection and 2-channel facial recognition with searchable libraries. H.265 Pro+ compression, a single SATA bay up to 12 TB, 4K HDMI with simultaneous VGA, and Hik-Connect remote access complete it.

All four analogue channels are used, but up to 8 IP cameras at 8MP can join over the network for positions beyond sensible coax reach. Supplied without a hard drive, so add a surveillance-rated HDD sized to the retention you need. White and grey camera versions of this kit are also available.

Camera Features

• 8MP 4K imaging, 3840 × 2160, for identification-grade detail
• 2.8 mm fixed lens, 105° horizontal field of view
• Black housing for discreet installs on dark fascias and cladding
• F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
• Smart Hybrid Light, 40 m white light and 40 m IR
• True WDR at 130 dB for strong backlight scenes
• Built-in mic with audio over the coax
• PoC powered (AT mode), one cable for video, audio and power
• IP67 and NEMA 4X anti-corrosion rated housing

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 4-channel 4K AcuSense PoC DVR, powers all four channels over the coax
• Records 8MP at 15 fps on all four channels simultaneously
• AcuSense human/vehicle filtering on every channel to cut false alarms
• 4-ch perimeter protection and 2-ch facial recognition
• H.265 Pro+ compression for efficient storage
• 1 SATA bay supporting up to 12 TB
• 4K HDMI and VGA outputs for local monitoring
• Hik-Connect app for remote view, playback and alerts

DVR Spec

Manufacturers Spec Sheet (PDF)
