Hikvision DS-7716NI-M4/16P 16 Channel 4K NVR 16 PoE Ports 4 HDD Bays

Cameras Connected	2MP (1080P HD) resolution	5MP resolution	8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

Summary
Full Spec

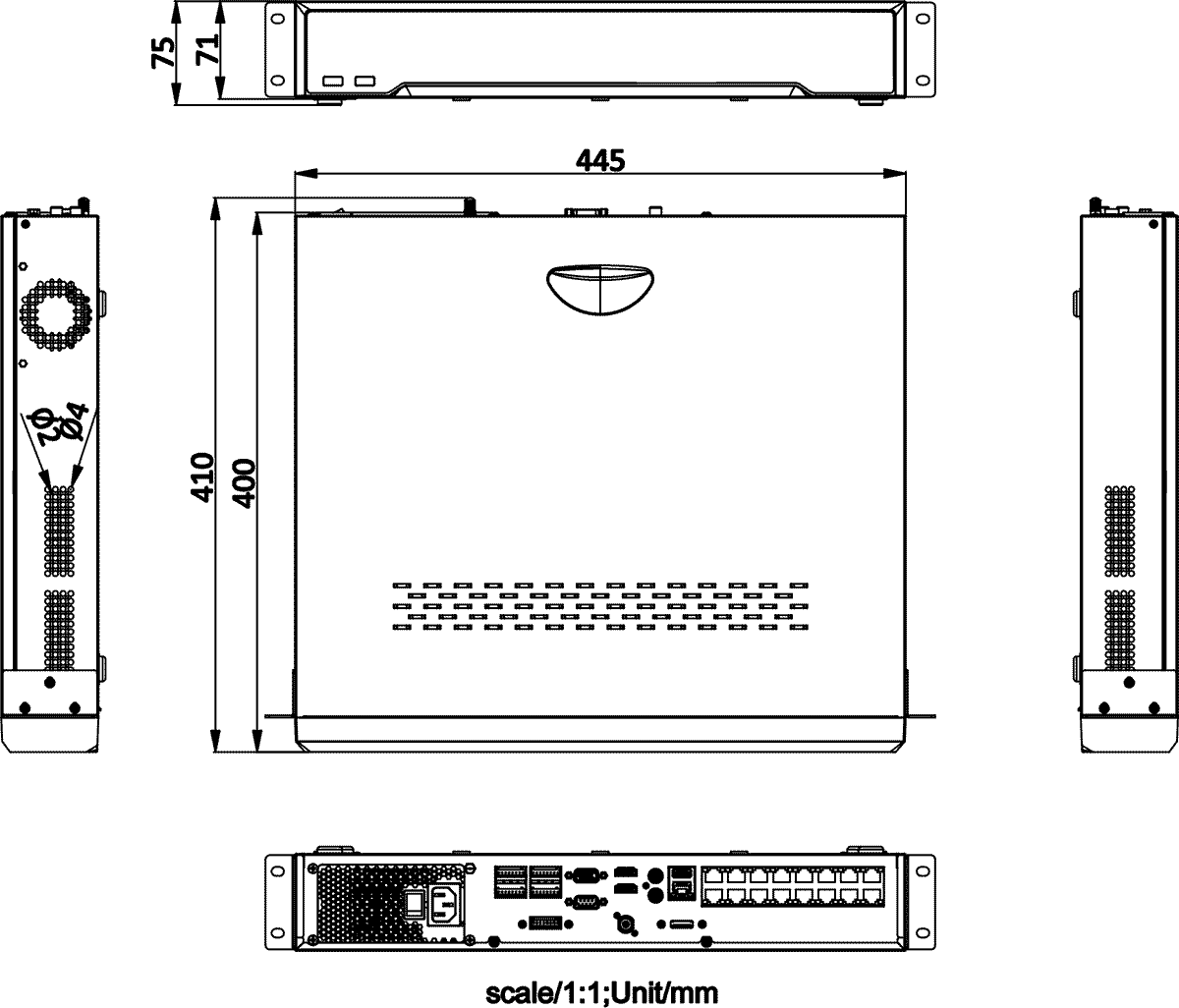

Dimensions

About the DS-7716NI-M4-16P

The DS-7716NI-M4/16P is a Hikvision M Series 16 channel NVR and 16 built in PoE ports, with 4 hard drive bays.

All 16 cameras plug straight in and are powered through their network cable.

It records cameras up to 32MP and has two HDMI outputs, one up to 8K and one up to 4K, plus VGA. It takes 4 hard drives of up to 16TB each (not included), up to 64TB in total, for long recording times on big systems. It works with the free Hik-Connect app.

DS-7716NI-M4-16P Key Features

16-channel IP video input, supports cameras up to 32MP resolution (8-ch at 32MP/24MP in ultra HD mode)
16 built-in plug-and-play PoE ports (10/100 Mbps), 200W total PoE budget (IEEE 802.3af/at)
Dual HDMI outputs: HDMI 1 up to 8K (7680x4320/30Hz), HDMI 2 up to 4K (3840x2160/60Hz), plus independent VGA and CVBS
256 Mbps incoming and outgoing bandwidth
Decoding capacity: 2-ch@32MP plus 2-ch@8MP, or 10-ch@8MP, 20-ch@4MP, 40-ch@1080p (all 30fps)
H.265+, H.265, H.264+, H.264 compression, H.265+ reduces storage by up to -75%
16-channel synchronous playback
4 SATA interfaces, each supports 1 HDD up to 16TB (64TB total), plus 1 eSATA port
16 alarm inputs, 9 alarm outputs, controllable 12VDC and 12VDC 1A power outputs
2x RS-485 and 1x RS-232 serial interfaces
VCA analytics including line crossing, intrusion, heat map, ANPR, people counting
POS overlay on live view and playback
Front 2x USB 2.0 and rear 1x USB 3.0 ports
TLS stream encryption, double verification for playback and download
Up to 8-ch IP speakers supported
1.5U 19-inch rack-mount chassis, 440 x 389 x 72mm, under 5kg, 100-240VAC

Download

Manufacturers Spec Sheet (PDF)

Video and Audio
IP Video Input	16-ch, up to 32MP resolution (8-ch at 32MP/24MP in ultra HD mode)
Incoming Bandwidth	256 Mbps
Outgoing Bandwidth	256 Mbps
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video Output
HDMI 1 Output	8K (7680x4320)/30Hz, 4K (3840x2160)/60Hz, 4K/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz
HDMI 2 Output	4K (3840x2160)/60Hz, 4K/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz (limited to 1080p when HDMI 1 is at 8K)
VGA Output	1920x1080/60Hz
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704x576, NTSC: 704x480
Video Output Mode	HDMI1 and VGA simultaneous output, HDMI2 and VGA independent output
Decoding
Decoding Format	H.265+, H.265, H.264+, H.264
Recording Resolution	32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p and below
Decoding Capability	2-ch@32MP (30fps) + 2-ch@8MP (30fps), or 10-ch@8MP/20-ch@4MP/40-ch@1080p (all 30fps)
Synchronous Playback	16-ch
Audio Compression	G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2
Smart Functions
VCA Events	Motion detection, line crossing, intrusion detection, heat map, ANPR, people counting
POS Integration	POS overlay on live view and playback, POS triggered recording and alarm
IP Speakers	Up to 8-ch IP speakers supported
Storage
SATA Interfaces	4, each supports 1 HDD up to 16TB (64TB total)
eSATA	1 eSATA interface
External Interface
PoE Interfaces	16 independent 10/100 Mbps PoE ports, 200W total (IEEE 802.3af/at)
Alarm In/Out	16 in, 9 out
Serial Interfaces	2x RS-485 (half-duplex), 1x RS-232
USB	Front: 2x USB 2.0, Rear: 1x USB 3.0
Network Interface	1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet
General
Power Supply	100-240VAC, 50/60Hz
Power Consumption	Max 15W (without HDD and PoE)
Dimensions	440 x 389 x 72mm
Weight	Under 5kg (without HDD)
Operating Temperature	-10°C to 55°C
Form Factor	1.5U 19-inch rack-mount
