| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Effective Pixels |
1920(H) x 1080(V) |
| Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance |
Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp |
| AGC |
Auto / Manual |
| BLC |
On / Off |
| HLC |
Support |
| WDR |
120dB |
| Shutter Time |
1/1s to 1/30,000s |
| Day & Night |
IR Cut Filter |
| Digital Zoom |
16X |
| Privacy Masking |
24 programmable privacy masks |
| Lens |
| Focal Length |
5 mm to 75 mm, 15× optical |
| Zoom Speed |
Approx. 2.4s (optical lens, wide-tele) |
| Angle of View |
Horizontal field of view: 53.8° to 4.0° (wide-tele)Vertical field of view: 31.9° to 2.3° (wide-tele)Diagonal field of view: 60.4° to 4.6°(wide-tele) |
| Minimum Working Distance |
10 - 1500mm(Wide-Tele) |
| Aperture Range |
F1.6 - F3.0 |
| Pan & Tilt |
| Pan Range |
Pan:360° endless; Tilt: -15°~90°(Auto Flip) |
| Pan Tilt Speed |
Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
| Number of Preset |
300 |
| Patrol |
8 patrols, up to 32 presets per patrol |
| Park Action |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Infrared |
| Maximum IR distance |
100m |
| Compression Standard |
| Video compression |
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.264+ Type |
supports |
| H.265 Type |
Main Profile |
| H.265+ Type |
supports |
| Bit rate |
32 Kbps ~ 8 Mbps |
| Smart Feature-set |
| Basic Event Detection |
Motion Detection, Video Tampering Detection, Exception Detection |
| Smart Event Detection |
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting
Detection, Unattended Baggage Detection, Object Removal Detection |
| Region of Interest |
Main stream, sub-stream and third stream respectively support four fixed areas |
| Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
| Image |
| Max. Image Resolution |
1920 × 1080 |
| Main Stream |
50Hz: 25fps(1920x1080 / 1280x960 / 1280x720) |
| Sub Stream |
50Hz: 25fps(640x480 / 352x288) |
| Image Enhancement |
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Network |
| Network Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB (Not included); NAS (NPS,
SMB/ CIPS), ANR) |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users |
Up to 32 users |
| Interface |
| Communication interface |
1 RJ45 10M / 100M Self adaptive Ethernet port |
| General |
| Power |
12 VDC and PoE+ (802.3at, class4) Max.: 18 W (IR light 6 W Max.) |
| Working Temperature/Humidity |
-30°C to 65°C (-22°F to 149°F) |
| Protection Level |
IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |

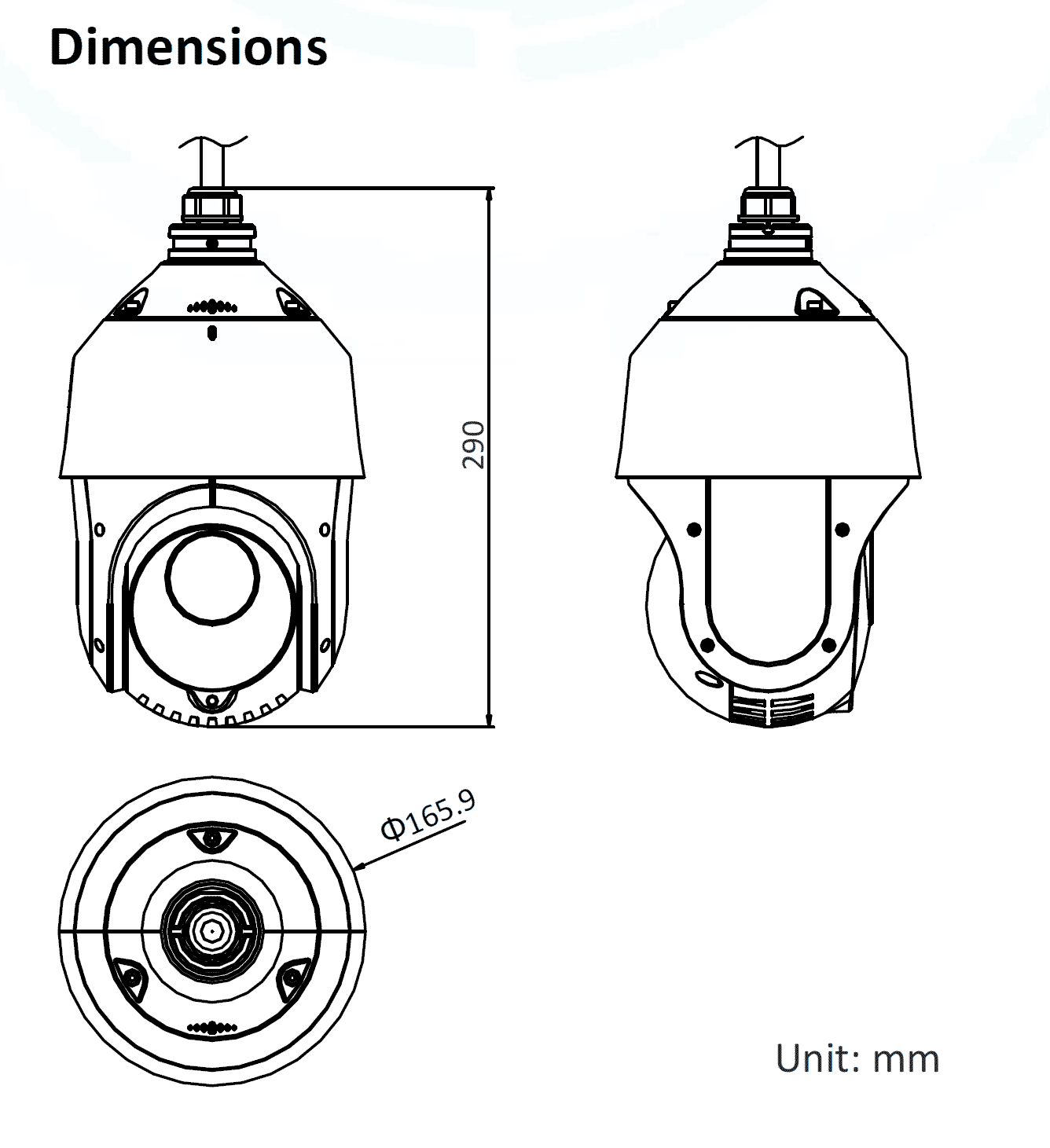

| Dimensions |
Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42") |
| Weight (approx.) |
2.5kg |
