HiLook by Hikvision PTZ-N2D400M-DE/14 4MP TandemVu Auto Tracking Pan / Tilt Camera with 30m Smart Hybrid Night Vision, PoE and 2 Way Audio

Product ID PTZ-N2D400M-DE-14
0 reviews | Write a review
£125.00
HiLook by Hikvision PTZ-N2D400M-DE/14 4MP TandemVu Auto Tracking Pan / Tilt Camera with 30m Smart Hybrid Night Vision, PoE and 2 Way Audio #1HiLook by Hikvision PTZ-N2D400M-DE/14 4MP TandemVu Auto Tracking Pan / Tilt Camera with 30m Smart Hybrid Night Vision, PoE and 2 Way Audio #2HiLook by Hikvision PTZ-N2D400M-DE/14 4MP TandemVu Auto Tracking Pan / Tilt Camera with 30m Smart Hybrid Night Vision, PoE and 2 Way Audio #3
£125.00
Quantity
-
+
2 Year Warranty
IP CCTV

Free Shipping

  • Summary
  • Full Spec
  • Dimensions

About the PTZ-N2D400M-DE/14

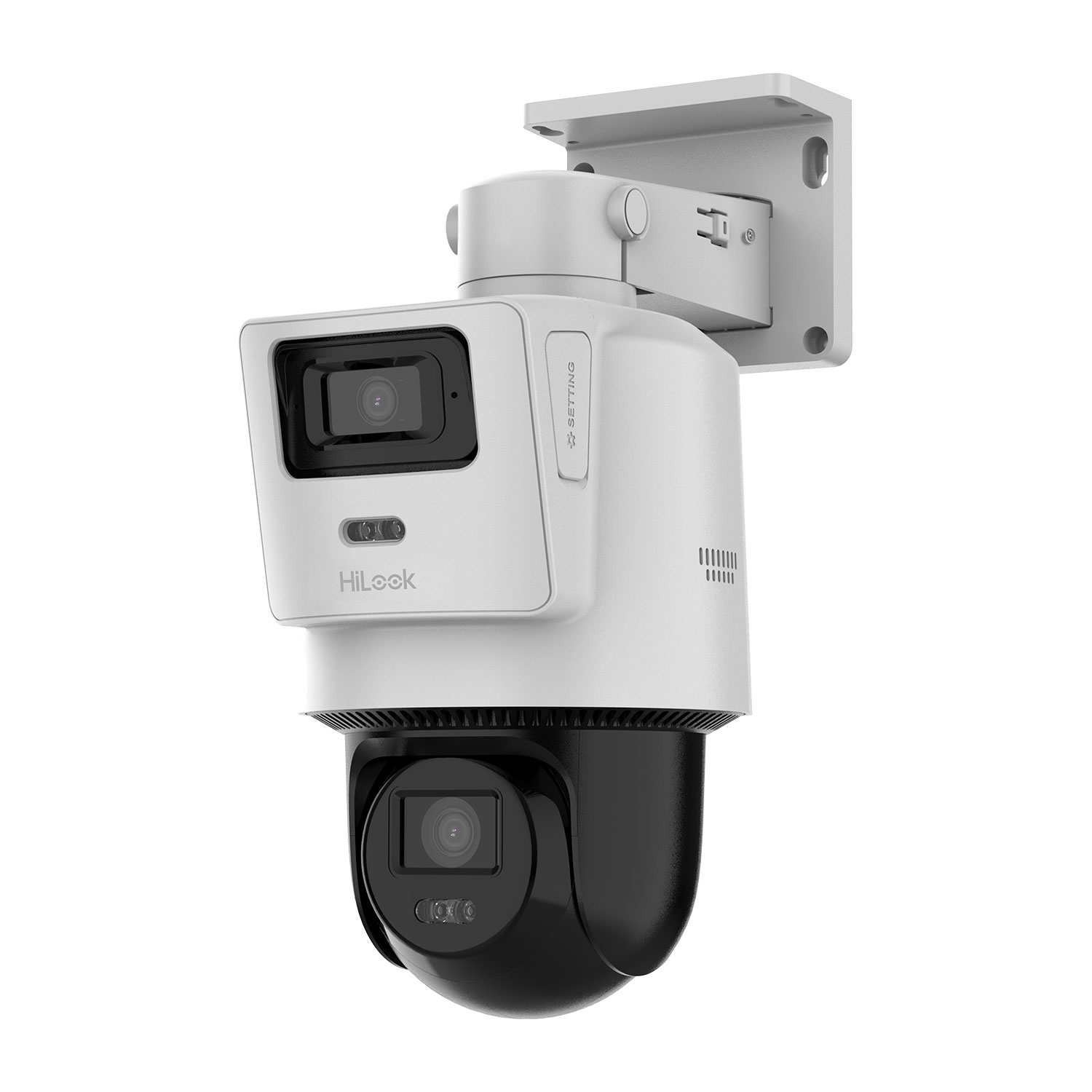

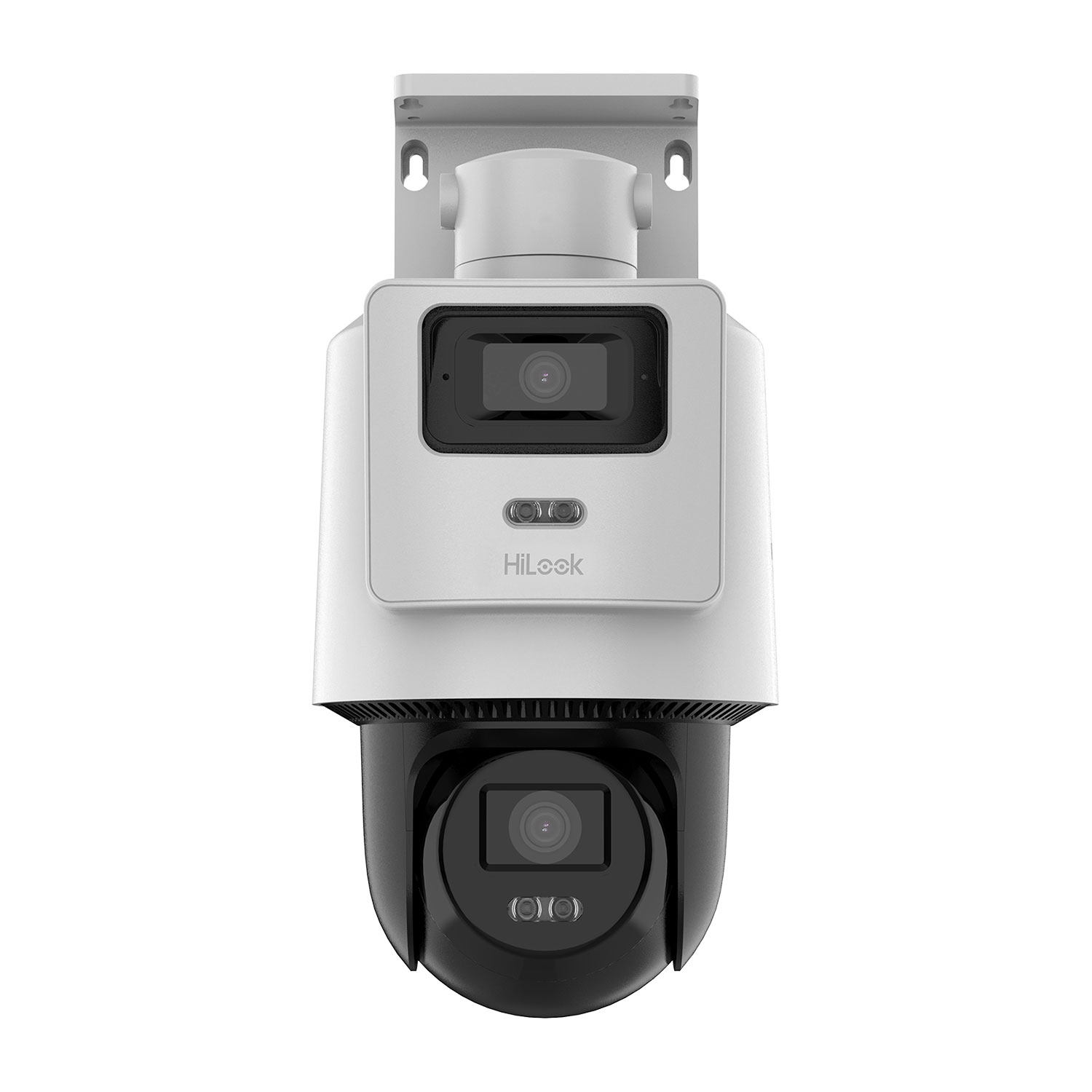

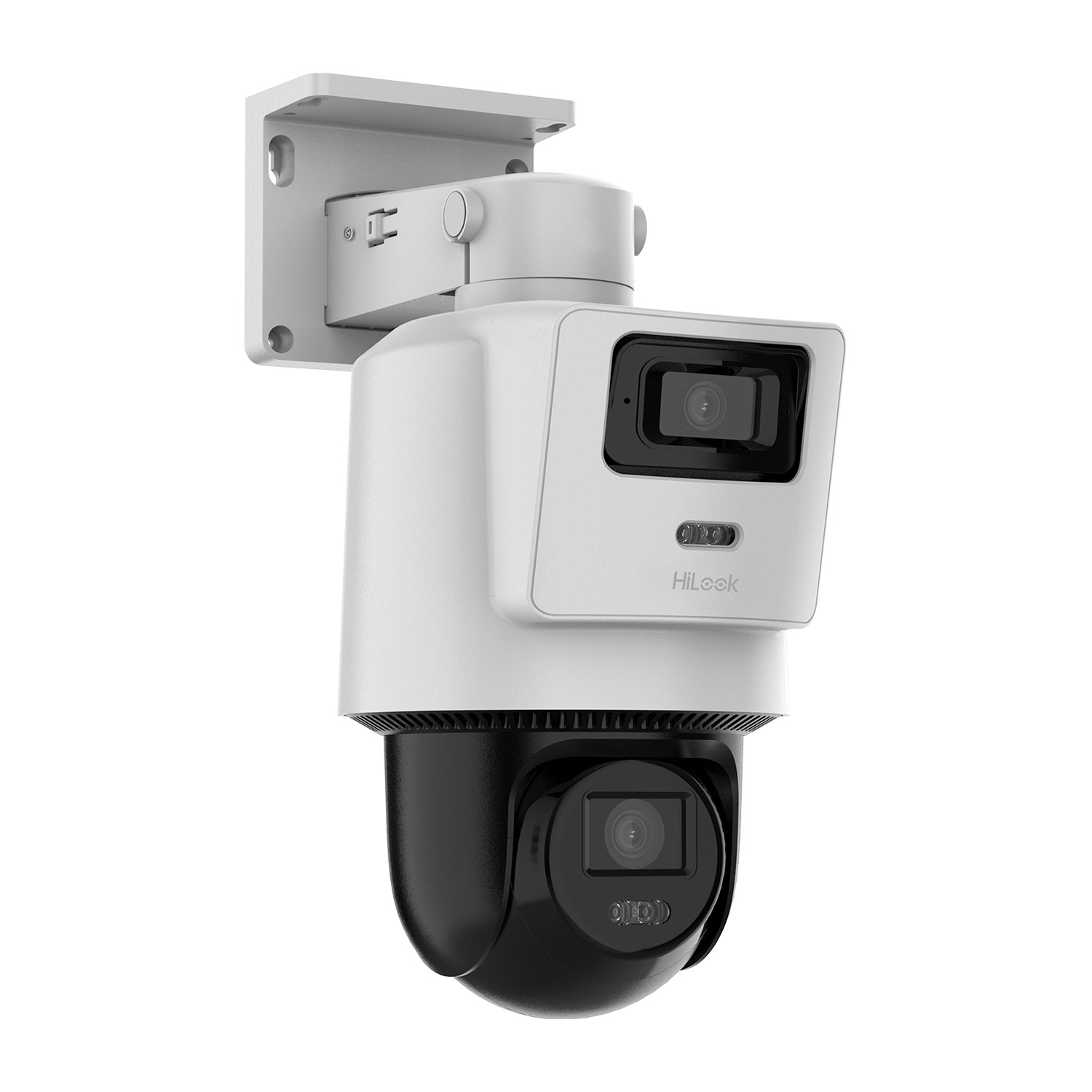

The PTZ-N2D400M-DE/14 is a HiLook by Hikvision 4MP TandemVu pan and tilt IP camera with two lenses and two way audio.

A fixed 2.8mm lens shows the whole scene (94 degree view), while a second 8mm lens on a pan and tilt head moves in for a closer look (44 degree view). It can follow people and vehicles automatically.

At night it gives colour footage up to 30m, it has a microphone and speaker, and it's weatherproof (IP66). It sends two video feeds, so it uses two channels on your NVR.

PTZ-N2D400M-DE-14 Key Features

  • Dual 4 MP TandemVu lenses – fixed view and PT lens for complete coverage
  • Fixed Channel 2.8mm lens horizontal field of view: 94°
  • PT Channel 8mm lens horizontal field of view: 44°
  • Smart Hybrid Light – colour imaging up to 30 m in darkness
  • Human and vehicle detection with Auto-Tracking Lite
  • Two-way audio with built-in microphone and speaker
  • H.265 video compression for reduced bandwidth and storage use
  • Up to 512 GB microSD storage plus NVR/remote recording support
  • IP66-rated weather resistance and surge protection
  • Pan range 0°–355°, tilt range 0°–80°, with 300 presets

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor1/2.8" progressive scan CMOS (both bullet and PT channels)
Min. Illumination0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR or white light
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR cut filter
WDRDigital WDR
Lens
bullet Lens2.8 mm, horizontal FOV 94°, vertical FOV 49°, aperture F1.6
PT Lens8 mm, horizontal FOV 44°, vertical FOV 24°, aperture F1.6
Illuminator
IR/White Light RangeUp to 30 m
Illuminator TypeSmart Hybrid Light (infrared and white light)
PTZ
Pan Range0° to 355°
Tilt Range0° to 80° (bullet channel tilt adjustable 7°–17°)
Pan/Tilt SpeedPan: 4–25°/s, Tilt: 4–20°/s
Presets300 presets, power-off memory
Video
Max. Resolution2560 × 1440
Main Stream2560 × 1440 @ 25/30 fps
CompressionH.265/H.264/MJPEG (sub-stream)
Bitrate32 Kbps to 4 Mbps
Audio
Audio Input/OutputBuilt-in microphone and speaker
Audio CompressionG.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Smart Features
DetectionHuman and vehicle detection, Auto-Tracking Lite
Privacy Mask4 programmable masks per channel
Network
ProtocolsTCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
Simultaneous Live ViewUp to 20 channels
User AccountsUp to 32 users
Storage
Local StorageMicroSD card slot, up to 512 GB
General
Power Supply12 V DC ± 25% (max 18 W) or PoE (802.3at, Class 4, max 21.5 W)
Operating Conditions-30 °C to 50 °C, humidity ≤ 95% (non-condensing)
Protection LevelIP66
MaterialPC

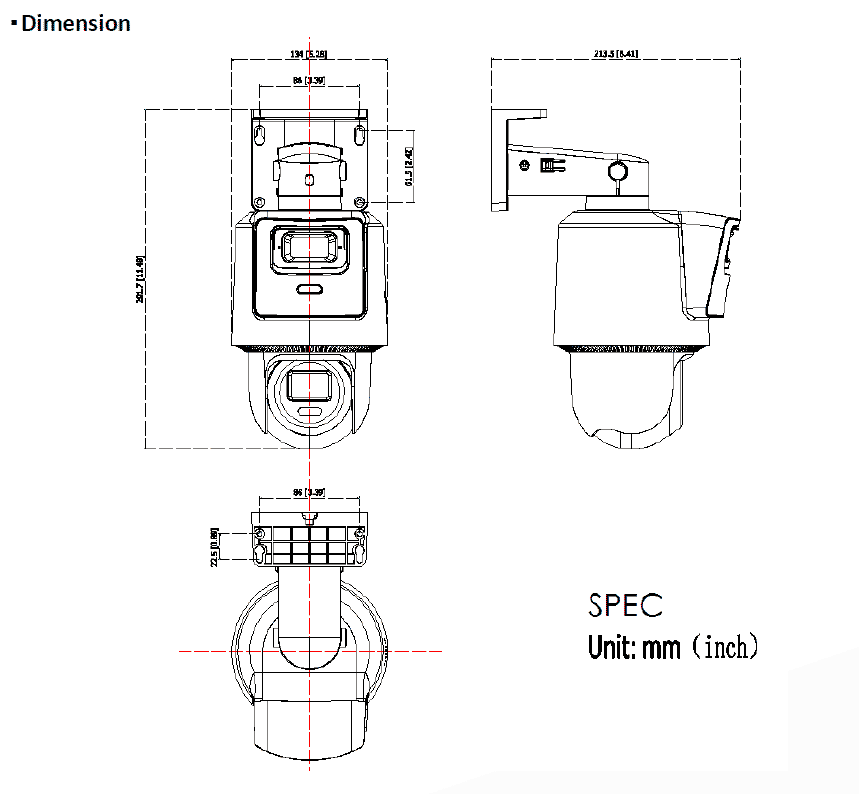

Dimensions134 × 213.5 × 291.7 mm
WeightApprox. 1 kg (net), 1.5 kg (gross)
