About the CORE+ 12MP 4-Camera IP CCTV Kit (Black)

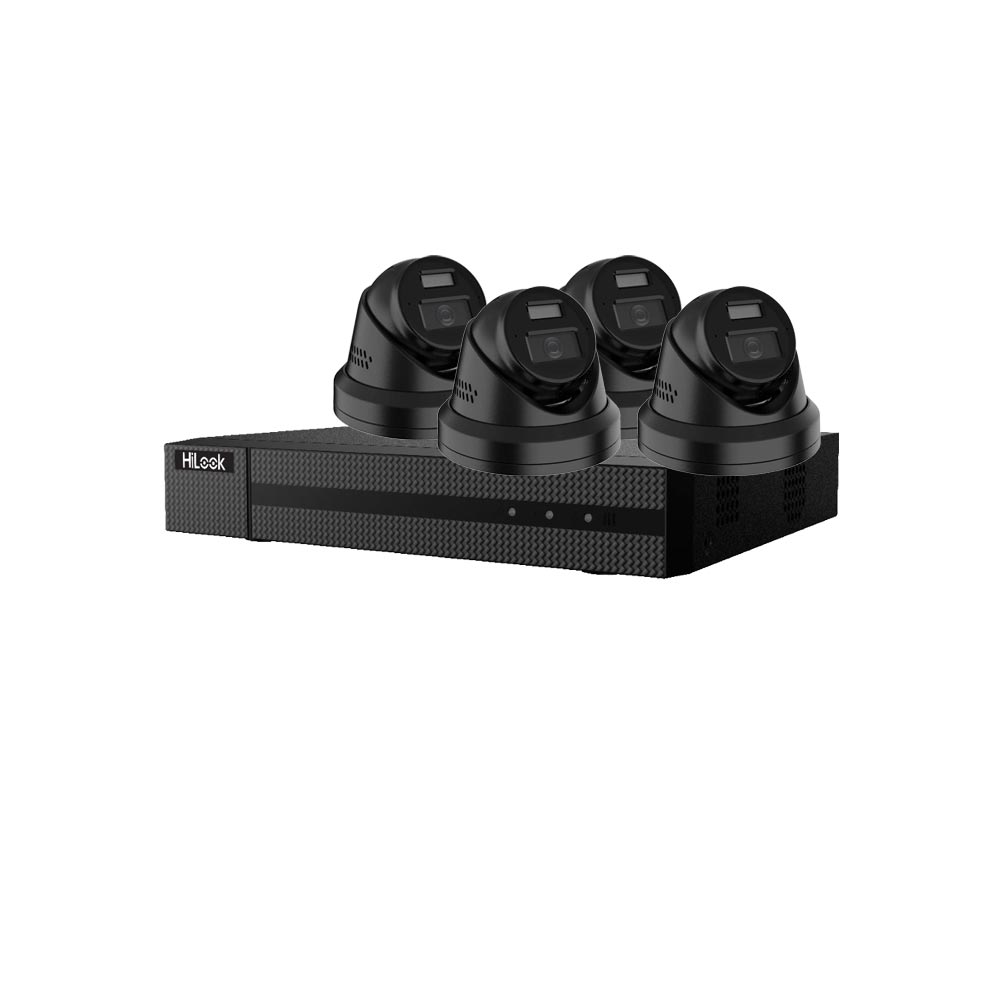

The CHLIP412-12MP-IRCVB is a CORE+ 4 camera IP CCTV kit. It comes with a HiLook Pro Series 4 channel NVR (HL-NVR-104MH-K-4P) and four black CORE+ 12MP turret cameras. As with all our kits, you can add cables, hard drives and a monitor as you need them.
CORE+ is our own camera range. These cameras capture 12MP (4096 x 3072) video, so one camera can cover a wide area and still pick out faces and number plates when you zoom in on the footage. The 2.8mm lens gives a 113 degree view.
At night each camera uses infrared for discreet black and white footage, or switches on a white light for colour, up to 30m. They can tell people and vehicles apart from other movement, so you get fewer false alerts.
Each camera has a microphone and a speaker, so you can talk to someone at the camera from the app. They're weatherproof (IP67), have a microSD slot for backup recording, and are powered over a single network cable.
The NVR has 4 PoE ports, so each camera plugs straight in. It records up to 12MP per channel and has a 4K HDMI output. It takes one hard drive of up to 16TB (not included). You can watch live, play back footage and get alerts on your phone with the free Hik-Connect app. Please note these cameras work with HiLook Pro Series NVRs, not the standard HiLook range.
Camera Features
- 12MP resolution (4096 x 3072) in a discreet matte black housing, ideal for low-profile installations
- 2.8 mm fixed lens, horizontal FOV 113° for wide-area coverage from a single camera
- Smart Dual Light with automatic IR and white light switching for 24/7 colour or infrared night vision up to 30 m
- Built-in two-way audio with microphone and 95 dB speaker for live interaction and deterrence via app
- Motion Detection 2.0 with human and vehicle classification to reduce false alarms
- 120 dB WDR with BLC, HLC and 3D DNR for mixed lighting and backlit scenes
- H.265+ compression to reduce storage and bandwidth demands
- MicroSD slot supporting up to 512 GB for on-board backup recording
- IP67 weatherproof metal housing for indoor and outdoor installation
- PoE (802.3af) and DC 12V powered, single-cable installation
Camera Spec
Manufacturers Spec Sheet (PDF)
NVR Features
- 4-channel NVR with 4 built-in PoE ports for true plug-and-play camera connection
- Supports up to 12MP recording resolution per channel
- Motion Detection 2.0 with human and vehicle classification
- Facial detection and recognition supporting up to 20,000 face images
- H.265+/H.265/H.264+/H.264 video compression for efficient storage
- HDMI output up to 4K and VGA up to 1080p for local monitoring
- 1 SATA interface supporting up to 16 TB HDD
- 4-channel simultaneous playback
- Remote app access via Hik-Connect for live view, playback, and alerts
- Compact 1U desktop design for discreet placement
NVR Spec
Manufacturers Spec Sheet (PDF)
What's included
- 1 x HiLook Pro Series 4-channel NVR with 4 PoE ports (HL-NVR-104MH-K-4P)
- 4 x CORE+ 12MP Smart Dual Light turret cameras with two-way audio, black (IPC-2120B-HT)
Please note: CORE+ IPC-2120B-HT cameras are compatible with HiLook Pro Series NVRs. They are not supported on standard HiLook NVRs. CORE+ products are available exclusively from JMC Secure.
For detailed specifications of each item in this kit, click the product thumbnails below to visit their pages.
