About the CORE+ 12MP 4-Camera IP CCTV Kit (White)

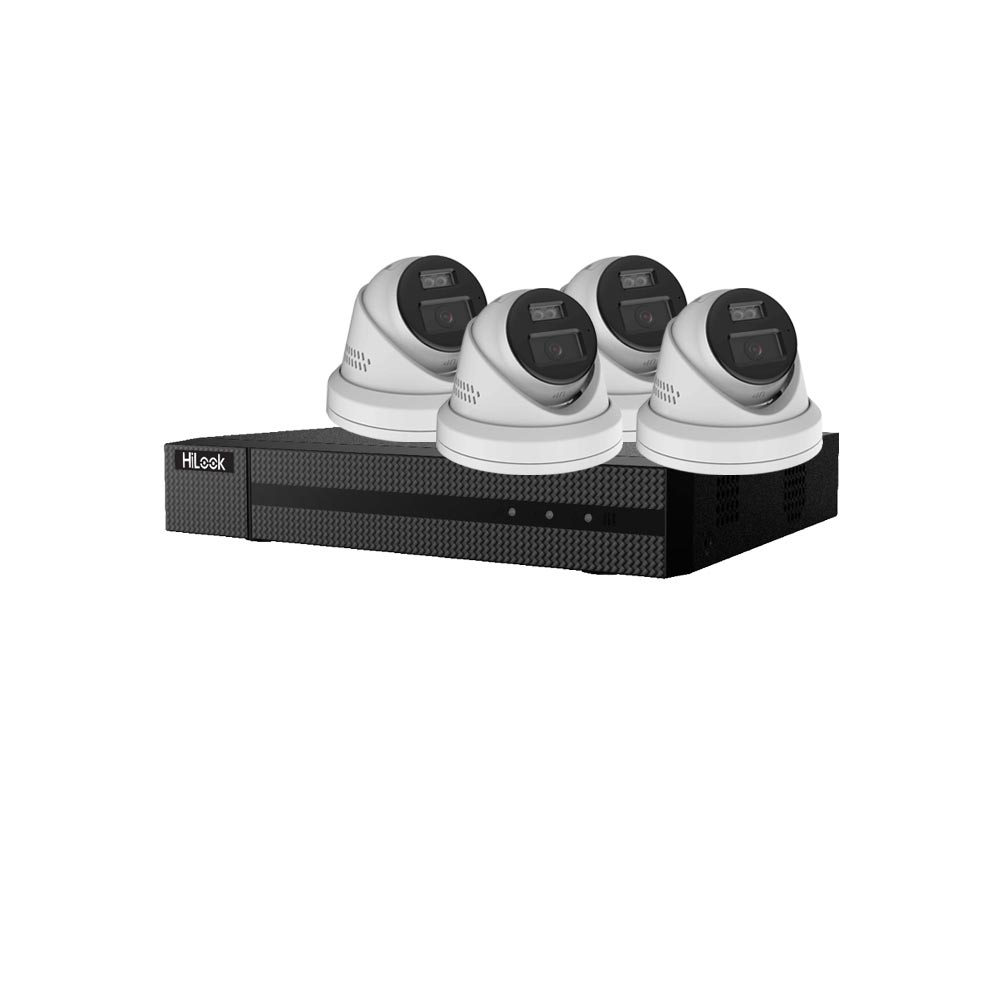

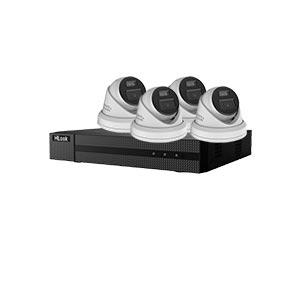

This 4-camera kit brings together four CORE+ IPC-2120W-HT 12 megapixel turret cameras and the HiLook Pro Series HL-NVR-104MH-K-4P 4-channel PoE NVR to give you comprehensive coverage of a property in a single, well-matched package. All four PoE ports on the recorder are used, and because each camera connects via a single Cat5e or Cat6 cable that carries both power and video, installation is clean and efficient with no separate power supplies required at the camera end. The system auto-discovers cameras as they are connected, so getting from a box of components to a fully operational system is straightforward.
Four 12 megapixel cameras positioned around a domestic or small commercial property give you thorough coverage without compromise. At 4096 x 3072 pixels per camera, each IPC-2120W-HT captures enough detail to identify faces and read registration plates within its field of view, meaning you are not simply recording that an event occurred, but capturing the detail that makes footage genuinely useful. Front, rear, and both sides of a house, or the entrances, car park, and external areas of a small business are all achievable within this four-camera configuration.
Each camera's 2.8 mm lens covers a horizontal field of view of 113 degrees, making it well suited to covering wide areas from a mounted position under a soffit or on a wall bracket. The wide dynamic range of 120 dB handles challenging lighting conditions including backlit doorways and mixed artificial and natural light without the blown-out or underexposed areas that lower-spec cameras produce in those situations. BLC, HLC, and 3D DNR processing are all available for fine-tuning image quality to the specific demands of each camera position.
Night-time performance comes from the Smart Dual Light system in each camera. Infrared illumination covers up to 30 metres for quiet, invisible surveillance, while the white light activates when motion is detected or when a visible deterrent is appropriate, producing full-colour night images rather than the flat monochrome view of infrared-only cameras. Motion Detection 2.0 classifies detections as human or vehicle, keeping alert notifications focused on relevant events and reducing the kind of false alarm fatigue that makes people switch notifications off.
The built-in two-way audio in each IPC-2120W-HT adds an interactive dimension to the system. All four cameras have microphones recording audio alongside video, and each has a speaker rated at 95 dB that enables live voice communication from the Hik-Connect app. Being able to address a visitor, issue a warning, or simply listen in at any camera position remotely is a capability that goes beyond passive recording and makes the system actively useful in the moment. For families, tradespeople, or small business owners managing a site remotely, it changes how a CCTV system feels to use.
The HL-NVR-104MH-K-4P records all four channels at up to 12 megapixels with H.265+ compression, keeping storage requirements well within range of a standard NVR hard drive. Up to 16 TB of storage on a single SATA drive gives you extended retention periods, and the intelligent playback tools let you filter by detection type to locate specific events quickly rather than scrubbing through raw footage. HDMI output supports 4K resolution for local monitoring, and the Hik-Connect app delivers remote access with live view, playback, and push notifications from any location.
Each camera has IP67 weatherproofing in a metal housing, a microSD slot for up to 512 GB of on-board backup recording, and a temperature rating from -30 to 60 degrees Celsius for reliable year-round UK operation. CORE+ cameras are confirmed compatible with HiLook Pro Series NVRs and are exclusively available from JMC Secure.
