About the Hikvision 4K 16-Camera ColorVu PoC CCTV Kit in Grey
Sixteen grey DS-2CE72UF3T-LSYE-G ColorVu Smart Hybrid Light turrets on the iDS-7216HUHI-M2-PXT 16-channel AcuSense PoC recorder, every analogue channel in use. This is the full-site grey system for modern commercial estates, schools, distribution and trade counter sites, and multi-building developments where grey cladding and aluminium glazing dominate, delivering 4K detail, night-time colour, and recorded audio across all sixteen positions on standard coax.
Important, PoC power planning: Hikvision's 16-channel PoC recorders power a maximum of 12 AT-mode cameras. The DS-2CE72UF3T-LSYE-G is an AT camera, so on a 16-camera install the recorder powers 12 cameras over the coax and at least 4 cameras must be powered locally with 12 VDC supplies, which are not included in this kit. Single and multi-way 12 VDC power supplies are available separately. The 12 PoC-powered cameras are allocated across channels automatically rather than to fixed inputs, so design the local power provision for the 4 (or more) positions nearest to available supplies. Full AT/AF combinations are listed in the appendix of the DVR datasheet. Factor this into the quote before pricing the job.
With power planned properly, this is a formidable system for the money. Twelve of the sixteen runs stay true single-cable installs, and even the four locally powered positions carry video and audio down one coax each. The recorder encodes 8MP at 8 fps, or 3K at 12 fps, with twin SATA bays at up to 12 TB each and H.265 Pro+ compression doing serious work across sixteen 4K streams, so size storage carefully against the retention the site needs. AcuSense motion detection 2.0 covers all sixteen analogue channels, up to 8-channel advanced perimeter protection guards the critical boundaries, 4-channel facial recognition and AcuSearch speed up investigations, and up to 32 IP channels at 8MP remain available for hybrid growth. Hik-Connect gives the client remote access, with 4K HDMI locally.
The cameras are consistent across all sixteen positions: F1.0 ColorVu optics holding colour at 0.0005 lux, Smart Hybrid Light with 40 m white light and 40 m IR configurable per camera, true 130 dB WDR for loading bays and glazed frontages, and built-in microphones with audio over the coax. The grey housings are metal-bodied, IP67 sealed, and NEMA 4X anti-corrosion certified, matching grey steelwork and composite cladding while standing up to exposed, coastal, and industrial conditions. Supplied without hard drives, add surveillance-rated HDDs sized to the retention period. White and black camera versions of this kit are also available.
Camera Features
- 8MP 4K imaging, 3840 × 2160, for identification-grade detail
- 2.8 mm fixed lens, 105° horizontal field of view
- Grey housing to match anthracite frames and modern exteriors
- F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
- Smart Hybrid Light, 40 m white light and 40 m IR
- True WDR at 130 dB for strong backlight scenes
- Built-in mic with audio over the coax
- PoC powered (AT mode), 12 via the DVR, 4 locally powered
- IP67 and NEMA 4X anti-corrosion rated housing
Camera Spec
Manufacturers Spec Sheet (PDF)
DVR Features
- 16-channel AcuSense PoC DVR, powers up to 12 AT cameras over the coax
- Records 4K/8MP at 8 fps, or 3K at 12 fps
- AcuSense human/vehicle filtering on all 16 analogue channels
- 8-ch perimeter protection and 4-ch facial recognition
- H.265 Pro+ compression for efficient storage
- 2 SATA bays supporting up to 12 TB each
- Up to 32 IP channels at 8MP for hybrid expansion
- Hik-Connect app for remote view, playback and alerts
DVR Spec
Manufacturers Spec Sheet (PDF)
What's included

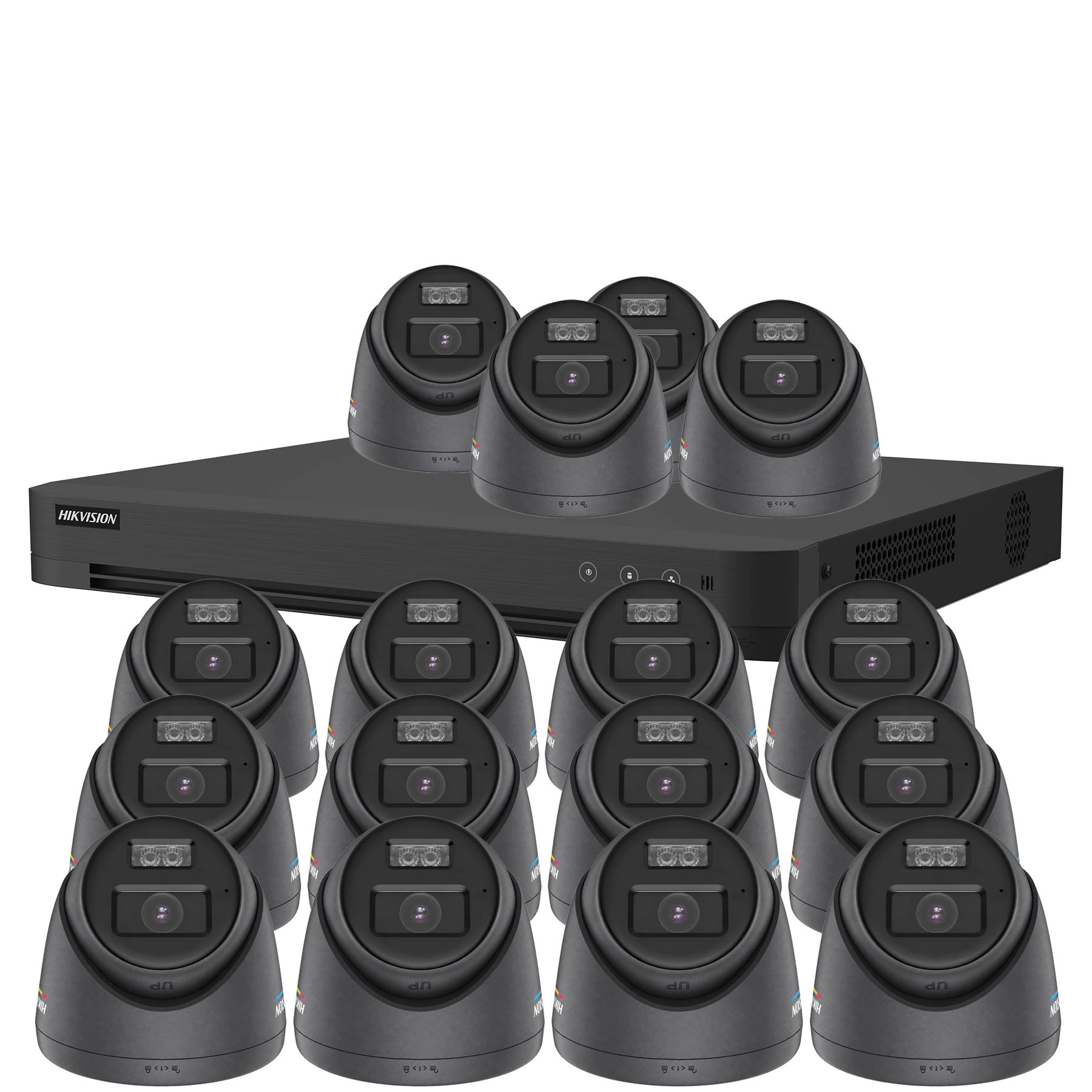

- 1 × Hikvision iDS-7216HUHI-M2-PXT 16-channel AcuSense PoC DVR
- 16 × Hikvision DS-2CE72UF3T-LSYE-G 4K ColorVu Smart Hybrid Light turret cameras (2.8 mm)
For detailed specifications of each item in this kit, click the product thumbnails below to visit their pages.
