Hikvision 5MP 4-Camera Smart Hybrid ColorVu PoC & AoC CCTV Kit (2.8mm Lens)

About the Hikvision 5MP 4-Camera ColorVu PoC CCTV Kit in Black

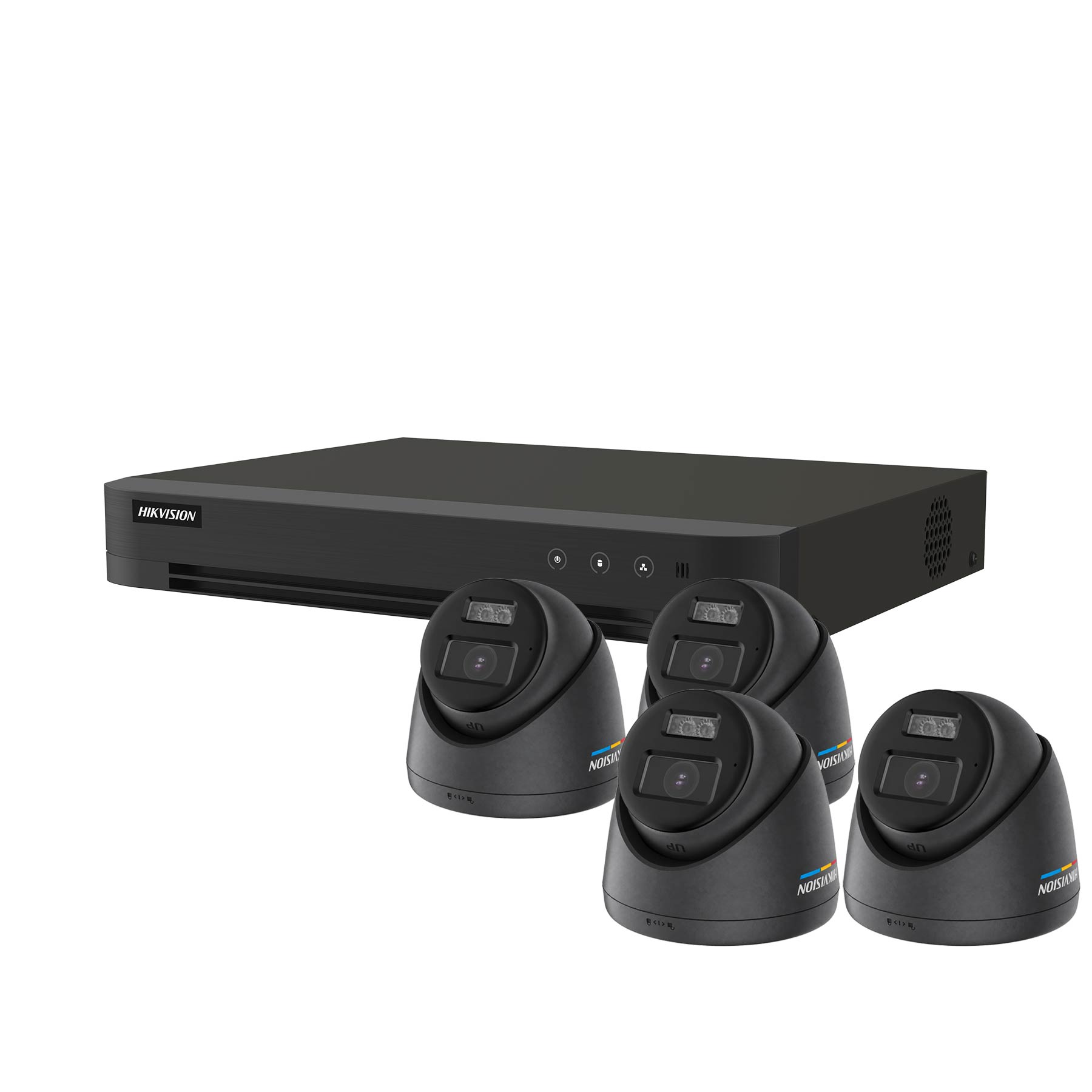

Four black DS-2CE72KF3T-LSYE-B 3K ColorVu turrets with the iDS-7204HUHI-M1-PXT AcuSense PoC DVR, the four-corner kit for dark exteriors on a working budget. Timber-clad extensions, barn conversions, black-detailed new builds, and commercial frontages all take the black housing more gracefully than white, and at this price point the aesthetic upgrade costs nothing extra. The install stays as simple as PoC allows: four single-cable RG59 runs from the DVR's four PoC-enabled inputs, each carrying video, audio, and power, with no shared PSU to fail and nothing to wire at the camera end.

Each camera brings the same feature set as the premium tiers with only the resolution stepped to 3K: F1.0 ColorVu optics holding colour at 0.0005 lux, true 130 dB WDR keeping faces readable against bright sky, and Smart Hybrid Light offering 40 m of white light, 40 m of IR, or automatic switching per camera. From a black camera the transition from unnoticed IR patrol to full white light is a genuinely effective deterrent. The 2960 × 1665 sensor outresolves the 4MP kit this range competes with, built-in microphones put synchronised audio on all four channels over the coax, and the IP67, NEMA 4X equivalent housings handle exposed elevations without the finish suffering.

Recording is properly matched: the M1 encodes 3K at 12 fps on all four channels simultaneously. AcuSense classifies people and vehicles on every channel, with up to 4-channel advanced perimeter protection and 2-channel facial recognition. H.265 Pro+, a single SATA bay up to 12 TB, 2K HDMI plus VGA, and Hik-Connect complete the package.

Up to 8 IP cameras at 8MP can join over the network for positions beyond coax reach. Supplied without a hard drive, so add a surveillance-rated HDD sized to your retention. White camera and 4K black CVA versions of this kit are also available.

Camera Features

• 3K 5MP imaging, 2960 × 1665, a clear step up from 4MP and 1080p
• 2.8 mm fixed lens, 105° horizontal field of view
• Black housing for discreet installs on dark fascias and cladding
• F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
• Smart Hybrid Light, 40 m white light and 40 m IR
• True WDR at 130 dB for strong backlight scenes
• Built-in mic with audio over the coax (AoC)
• PoC powered (AT mode), one cable for video, audio and power
• IP67 and anti-corrosion housing, NEMA 4X equivalent

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 4-channel AcuSense PoC DVR, powers all four channels over the coax
• Records 3K/5MP at 12 fps on every channel, matched to these cameras
• AcuSense human/vehicle filtering on every channel to cut false alarms
• 4-ch perimeter protection and 2-ch facial recognition
• H.265 Pro+ compression for efficient storage
• 1 SATA bay supporting up to 12 TB
• 2K HDMI and VGA outputs for local monitoring
• Hik-Connect app for remote view, playback and alerts

DVR Spec

Manufacturers Spec Sheet (PDF)
