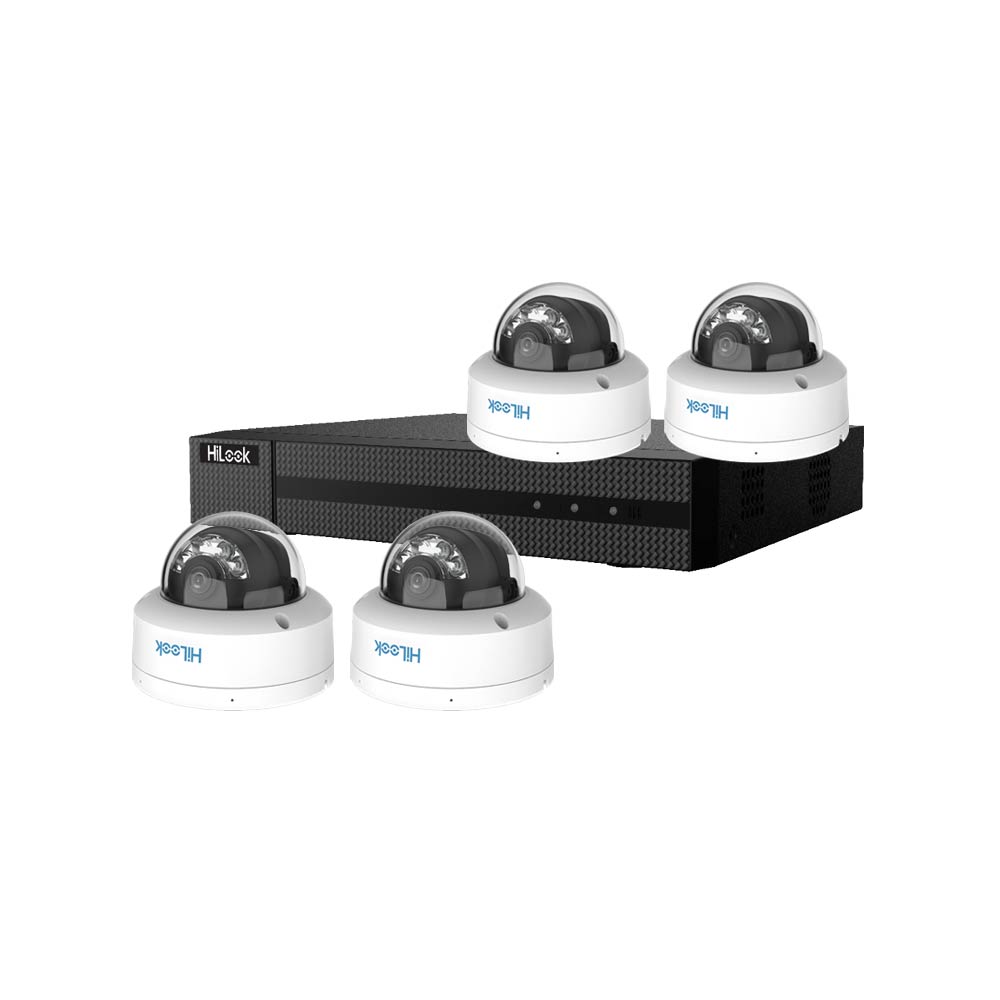

About the HiLook by Hikvision 4 Camera 4MP ColorVu 3.0 Dome IP PoE Kit with 4ch NVR
This 4-camera kit fully populates a 4-channel PoE NVR with HiLook IPC-D149HAA-LU 4MP ColorVu 3.0 vandal domes, giving complete coverage of a typical home or small commercial unit from a single tidy recorder. The headline draw is the cameras' 0.0005 Lux colour performance, delivered by the F1.0 super-aperture lens and ColorVu 3.0 sensor, which turns dark driveways and yards into clear, true-colour footage where older systems would only manage black-and-white blur.
Four vandal domes let you cover the front, rear, and both side aspects of a property, or the entrance, shop floor, stockroom, and rear access of a small business. The IK08 housing resists impact and tampering and the IP67 rating handles weather year-round, while three-axis adjustment makes each camera quick to aim precisely during install.
Smart Hybrid Light intelligently mixes IR and warm white light to 30 m so footage stays in colour when it matters, and Motion Detection 3.0 filters alerts down to people and vehicles to cut nuisance notifications. A built-in microphone on each camera records audio with the video, useful context when reviewing an incident.
With all four PoE ports in use, installation stays clean: one cable per camera carries power and data, the NVR auto-adds the cameras, and H.265+ compression keeps storage demands low. HDMI and VGA outputs handle local monitoring, and the HiLookVision app delivers remote live view, playback, and instant alerts.
A note on dome cameras: vandal-proof domes like these are a great choice for high-risk areas where a camera might be tampered with or struck. Do keep in mind, though, that they need more maintenance than a turret or bullet camera because of the glass dome. The dome can suffer from IR reflecting off dust or tiny scratches that are invisible to the human eye, and this can seriously affect night vision. With those "scratches" in mind, be extra cautious during installation: keep the dome clean and do not let the glass lid drop down and touch the wall while you adjust the lens. As a general rule we advise using turret cameras, unless the area is high-risk, in which case a vandal dome like this is the right tool for the job.
Camera Features
- 4MP ColorVu 3.0 imaging for sharp, detailed colour video day and night
- 2.8 mm fixed lens for wide coverage - horizontal FOV 101.5 degrees
- 0.0005 Lux minimum illumination in colour mode (F1.0, AGC on), 0 Lux with supplement light
- Smart Hybrid Light blending IR and warm white light with up to 30 m range
- Motion Detection 3.0 with human and vehicle classification to cut false alarms
- Built-in microphone for audio capture alongside video (listen-in only)
- IK08 vandal-resistant, IP67 weatherproof dome housing for indoor and outdoor use
- PoE power over a single cable for quick, tidy installs
Camera Spec
Manufacturers Spec Sheet (PDF)
NVR Features
- 4-channel NVR with 4 PoE ports for true plug-and-play installation
- Supports up to 8MP recording and playback per channel
- H.265+ compression for efficient storage usage
- HDMI and VGA outputs for easy local monitoring
- 80Mbps incoming bandwidth with 50W total PoE budget
- Remote app access for live view, playback, and event alerts via HiLookVision
NVR Spec
Manufacturers Spec Sheet (PDF)
What's included
- 1 × HiLook 4-channel NVR with 4 × PoE ports (NVR-104MH-C-4P)
- 4 × HiLook IPC-D149HAA-LU 4MP ColorVu 3.0 vandal dome cameras with built-in microphone (2.8 mm lens)
For detailed specifications of each item in this kit, click the product thumbnails below to visit their pages.
