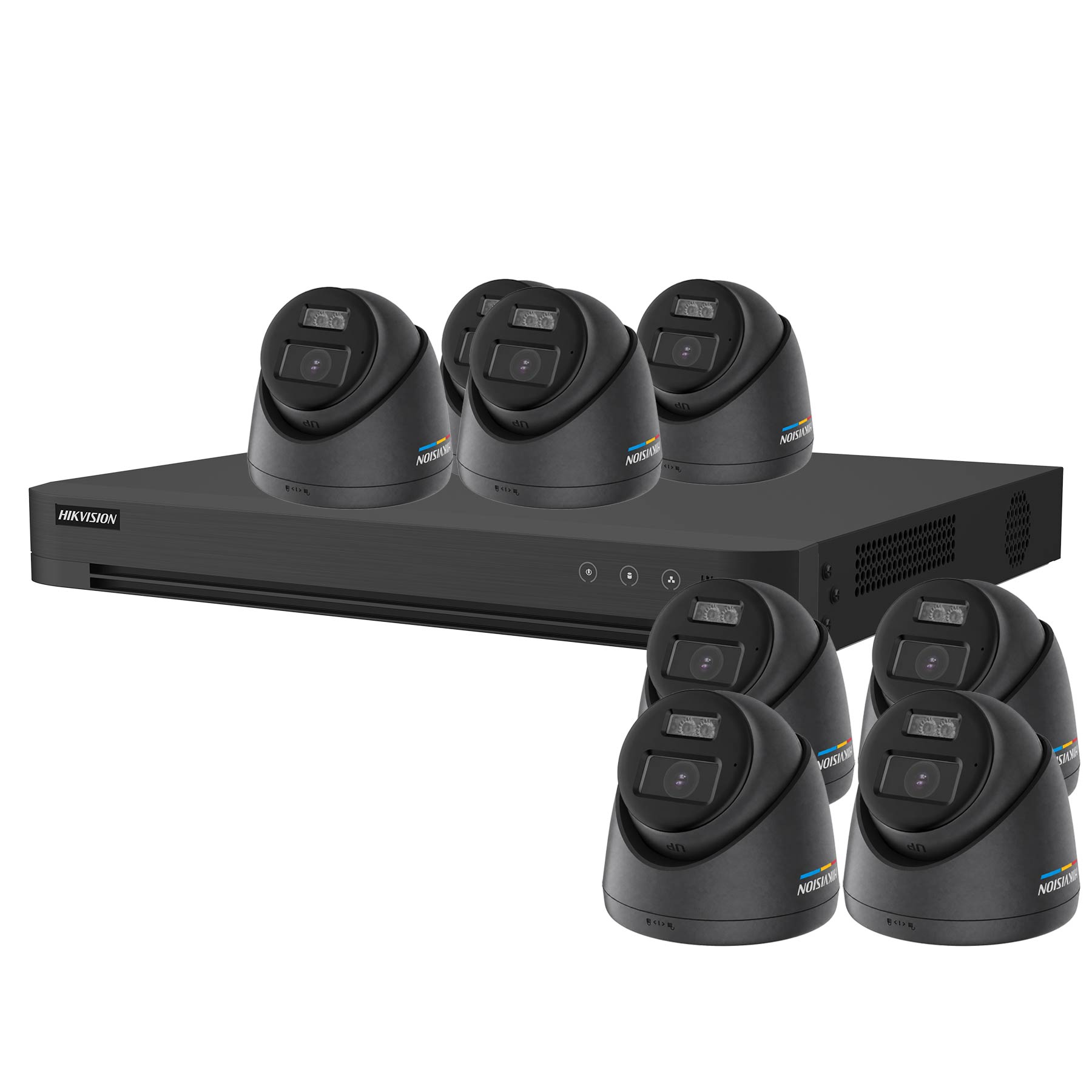

Hikvision 4K 8-Camera Smart Hybrid ColorVu PoC & AoC CCTV Kit in Black (2.8mm Lens)

About the Hikvision 4K 8-Camera ColorVu PoC CCTV Kit in Black

Eight black DS-2CE72UF3T-LSYE-B ColorVu turrets filling every channel of the iDS-7208HUHI-M2-PXT AcuSense PoC recorder. This is the full-house black configuration for larger residential properties, bars and restaurants, retail units, and light industrial sites where complete coverage needs to sit discreetly against dark architecture. The 8-channel PoC device is rated for eight AT cameras and the LSYE-B draws a maximum of 6.0 W as a PoC.at device, so all eight run direct from the recorder: eight single-cable runs, one socket at the recorder, and not a power supply anywhere else on the job.

Night performance is where this kit sells itself. The F1.0 aperture holds full colour at 0.0005 lux, and the black housings pair naturally with smart mode lighting, where all eight cameras patrol invisibly on IR and any triggered position floods its scene with 40 m of white light. True 130 dB WDR manages entrances and forecourts that mix deep shade with bright glazing, and every camera records synchronised audio over its coax via the built-in microphone, increasingly requested on licensed and retail premises. IP67 sealing and NEMA 4X anti-corrosion certification keep the finish intact on coastal and industrial installs.

The M2 records what the cameras produce: 8MP at 8 fps available on all eight channels simultaneously, or 3K at 12 fps where motion matters more. Twin SATA bays at up to 12 TB each give an eight-stream 4K system the storage it needs, with H.265 Pro+ keeping file sizes in check. AcuSense classifies people and vehicles on every channel, with up to 8-channel advanced perimeter protection, 4-channel facial recognition, and 8-channel AcuSearch making review of a site this size genuinely quick. Hik-Connect handles remote access, with 4K HDMI locally.

The analogue side is at capacity, but up to 16 IP cameras at 8MP can still be added over the network for outbuildings or gates. Supplied without hard drives, add surveillance-rated HDDs to suit retention. White and grey camera versions of this kit are also available.

Camera Features

• 8MP 4K imaging, 3840 × 2160, for identification-grade detail
• 2.8 mm fixed lens, 105° horizontal field of view
• Black housing for discreet installs on dark fascias and cladding
• F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
• Smart Hybrid Light, 40 m white light and 40 m IR
• True WDR at 130 dB for strong backlight scenes
• Built-in mic with audio over the coax
• PoC powered (AT mode), one cable for video, audio and power
• IP67 and NEMA 4X anti-corrosion rated housing

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 8-channel AcuSense PoC DVR, powers all 8 AT cameras over the coax
• Records 4K/8MP at 8 fps on all channels, or 3K at 12 fps
• AcuSense human/vehicle filtering plus 8-ch perimeter protection
• 4-ch facial recognition and 8-ch AcuSearch smart playback
• H.265 Pro+ compression for efficient storage
• 2 SATA bays supporting up to 12 TB each
• Up to 16 IP channels at 8MP for hybrid expansion
• Hik-Connect app for remote view, playback and alerts

DVR Spec

Manufacturers Spec Sheet (PDF)
