About the Hikvision 5MP 10-Camera ColorVu PoC CCTV Kit in Black
Ten black DS-2CE72KF3T-LSYE-B 3K ColorVu Smart Hybrid Light turrets on the 16-channel iDS-7216HUHI-M2-PXT AcuSense PoC recorder, the value route to a large discreet system. Venues, schools, farms, and commercial sites with dark cladding get ten positions of colour night vision and recorded audio without the budget of a ten-camera 4K install. All ten cameras run entirely over PoC: the KF3T-LSYE-B is a PoC.at (AT mode) device and the 16-channel recorder powers up to 12 AT cameras, so every position here is fed down its own coax with capacity in hand and no local supplies on the job.
PoC power planning: Hikvision's 16-channel PoC recorders power a maximum of 12 AT-mode cameras, even though they record 16 channels. The ten cameras in this kit are all PoC powered, but only two further AT cameras can be added on PoC. Any expansion beyond 12 AT cameras requires local 12 VDC power supplies for the additional cameras, which are not included in this kit and are available separately, so plan power provision before quoting extra channels. See the AT/AF table in the DVR datasheet.
The recorder encodes 3K at 12 fps, and ten 3K streams make economical use of the twin 12 TB SATA bays, so long retention is achievable without exotic drives. AcuSense motion detection 2.0 runs on all analogue channels to keep a busy site's alerts meaningful, with up to 8-channel advanced perimeter protection, 4-channel facial recognition, and AcuSearch turning hours of multi-camera footage into a seconds-long search. Hik-Connect provides remote access, with HDMI and VGA at the monitor position.
Every camera carries the full feature set in the black shell: F1.0 ColorVu optics for colour at 0.0005 lux, Smart Hybrid Light with 40 m white light and 40 m IR in constant, covert, or auto modes, true 130 dB WDR, a 3K sensor at 2960 × 1665, and a built-in microphone streaming audio over the coax. The IP67, NEMA 4X equivalent housings keep the dark finish looking right on exposed, coastal, and agricultural elevations. Up to 32 IP cameras at 8MP can be added over the network. Supplied without hard drives, so add surveillance-rated HDDs sized to the retention period. White camera and 4K black CVA versions are also available.
Camera Features
- 3K 5MP imaging, 2960 × 1665, a clear step up from 4MP and 1080p
- 2.8 mm fixed lens, 105° horizontal field of view
- Black housing for discreet installs on dark fascias and cladding
- F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
- Smart Hybrid Light, 40 m white light and 40 m IR
- True WDR at 130 dB for strong backlight scenes
- Built-in mic with audio over the coax (AoC)
- PoC powered (AT mode), one cable for video, audio and power
- IP67 and anti-corrosion housing, NEMA 4X equivalent
Camera Spec
Manufacturers Spec Sheet (PDF)
DVR Features
- 16-channel AcuSense PoC DVR, powers up to 12 AT cameras over the coax
- Records 3K/5MP at 12 fps on all channels, up to 8MP capable
- AcuSense human/vehicle filtering on all analogue channels
- 8-ch perimeter protection and 4-ch facial recognition
- H.265 Pro+ compression for efficient storage
- 2 SATA bays supporting up to 12 TB each
- Up to 32 IP channels at 8MP for hybrid expansion
- Hik-Connect app for remote view, playback and alerts
DVR Spec
Manufacturers Spec Sheet (PDF)

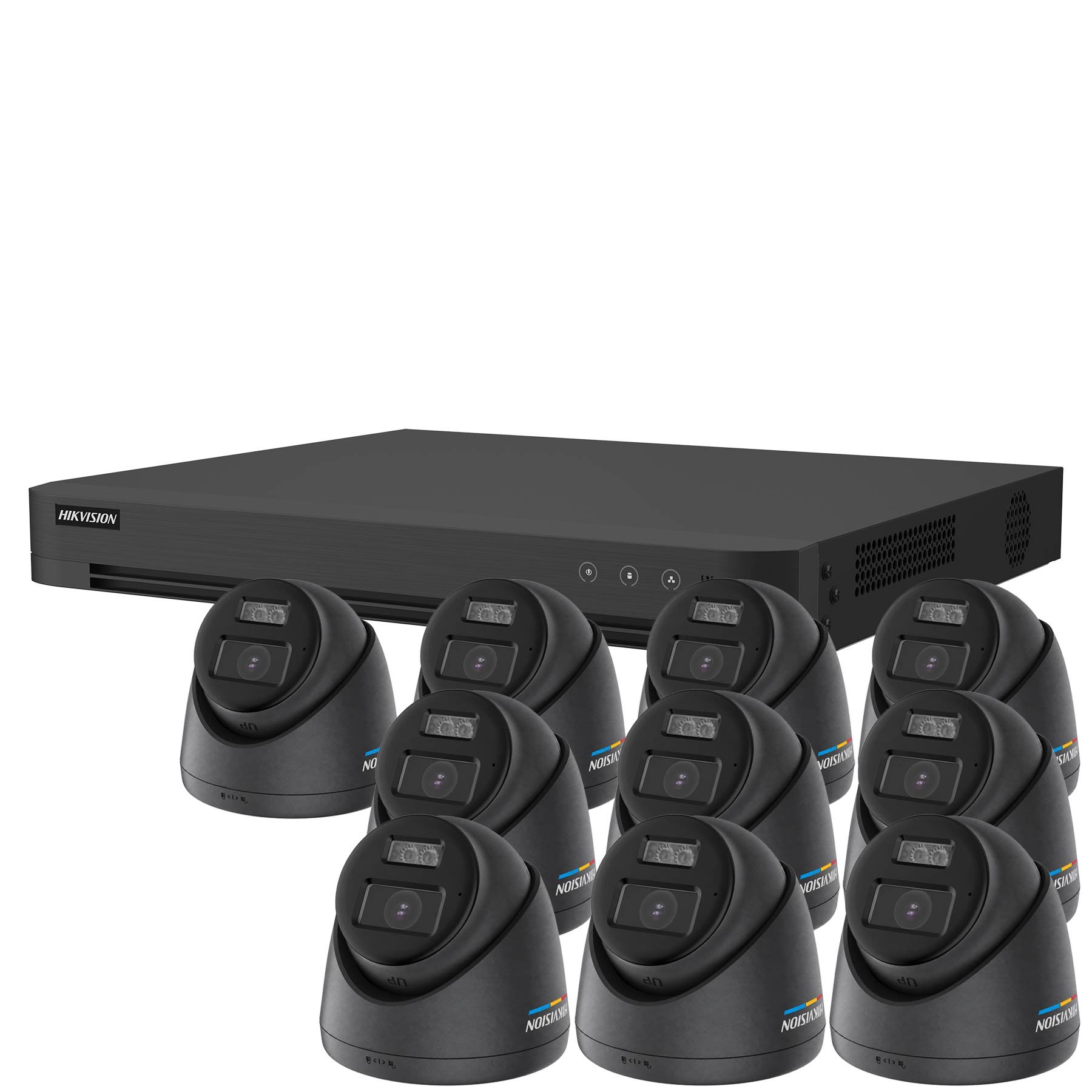

What's included
- 1 × Hikvision iDS-7216HUHI-M2-PXT 16-channel AcuSense PoC DVR
- 10 × Hikvision DS-2CE72KF3T-LSYE-B 3K ColorVu Smart Hybrid Light turret cameras (2.8 mm)
For detailed specifications of each item in this kit, click the product thumbnails below to visit their pages.
