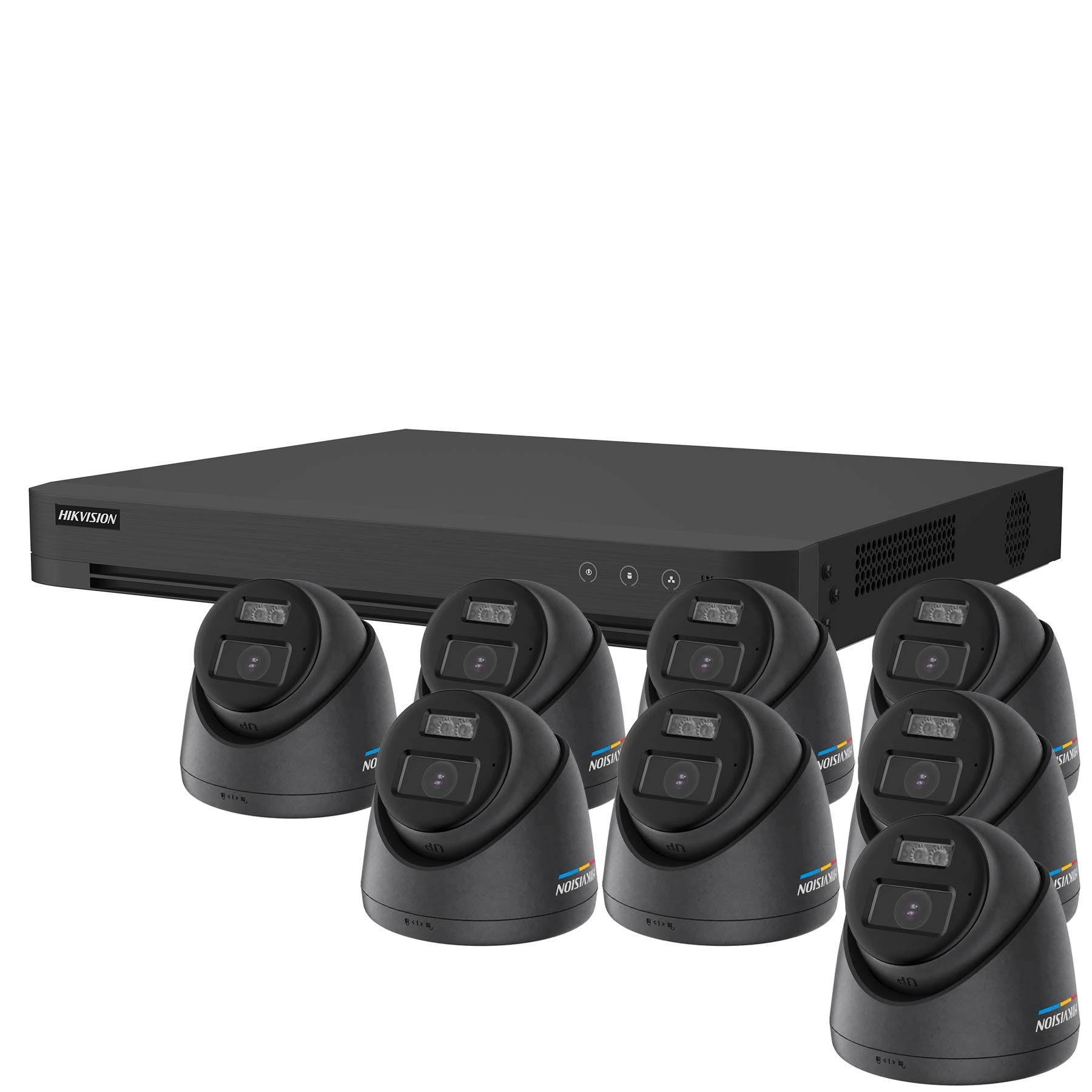

Hikvision 5MP 8-Camera Smart Hybrid ColorVu PoC & AoC CCTV Kit in Black (2.8mm Lens)

About the Hikvision 5MP 8-Camera ColorVu PoC CCTV Kit in Black

Eight black DS-2CE72KF3T-LSYE-B 3K ColorVu turrets filling every channel of the iDS-7208HUHI-M2-PXT AcuSense PoC recorder. Full-site coverage in a black finish for bars, restaurants, retail units, and larger homes with dark exteriors, at a price that makes the specification hard to argue with: colour night vision, recorded audio, and smart detection on all eight positions, powered entirely over the coax. The 8-channel PoC platform is rated for eight AT cameras and the KF3T-LSYE-B runs in AT mode, so the whole system needs eight cable runs and one socket at the recorder.

Night work is where the black kit earns its keep. All eight cameras hold full colour at 0.0005 lux through the F1.0 ColorVu optics, and in auto or smart configurations they patrol discreetly before flooding a triggered scene with 40 m of white light, a deterrent that lands harder from a camera nobody had noticed. True 130 dB WDR handles the glazing and doorway contrast typical of licensed and retail premises, the 3K sensor keeps detail usable across wide scenes, and built-in microphones put synchronised audio on every channel over the coax. IP67 sealing with NEMA 4X equivalent anti-corrosion protection keeps the finish intact on coastal and industrial installs.

The M2 encodes 3K at 12 fps across all eight channels, with twin SATA bays at up to 12 TB each and H.265 Pro+ stretching every terabyte. AcuSense classifies people and vehicles on every channel, with up to 8-channel advanced perimeter protection, 4-channel facial recognition, and 8-channel AcuSearch making review quick. Hik-Connect handles remote access.

Up to 16 IP cameras at 8MP remain available over the network. Supplied without hard drives, add surveillance-rated HDDs to suit retention. White camera and 4K black CVA versions of this kit are also available.

Camera Features

• 3K 5MP imaging, 2960 × 1665, a clear step up from 4MP and 1080p
• 2.8 mm fixed lens, 105° horizontal field of view
• Black housing for discreet installs on dark fascias and cladding
• F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
• Smart Hybrid Light, 40 m white light and 40 m IR
• True WDR at 130 dB for strong backlight scenes
• Built-in mic with audio over the coax (AoC)
• PoC powered (AT mode), one cable for video, audio and power
• IP67 and anti-corrosion housing, NEMA 4X equivalent

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 8-channel AcuSense PoC DVR, powers up to 8 AT cameras over the coax
• Records 3K/5MP at 12 fps on all channels, up to 8MP capable
• AcuSense human/vehicle filtering plus 8-ch perimeter protection
• 4-ch facial recognition and 8-ch AcuSearch smart playback
• H.265 Pro+ compression for efficient storage
• 2 SATA bays supporting up to 12 TB each
• Up to 16 IP channels at 8MP for hybrid expansion
• Hik-Connect app for remote view, playback and alerts

DVR Spec

Manufacturers Spec Sheet (PDF)
