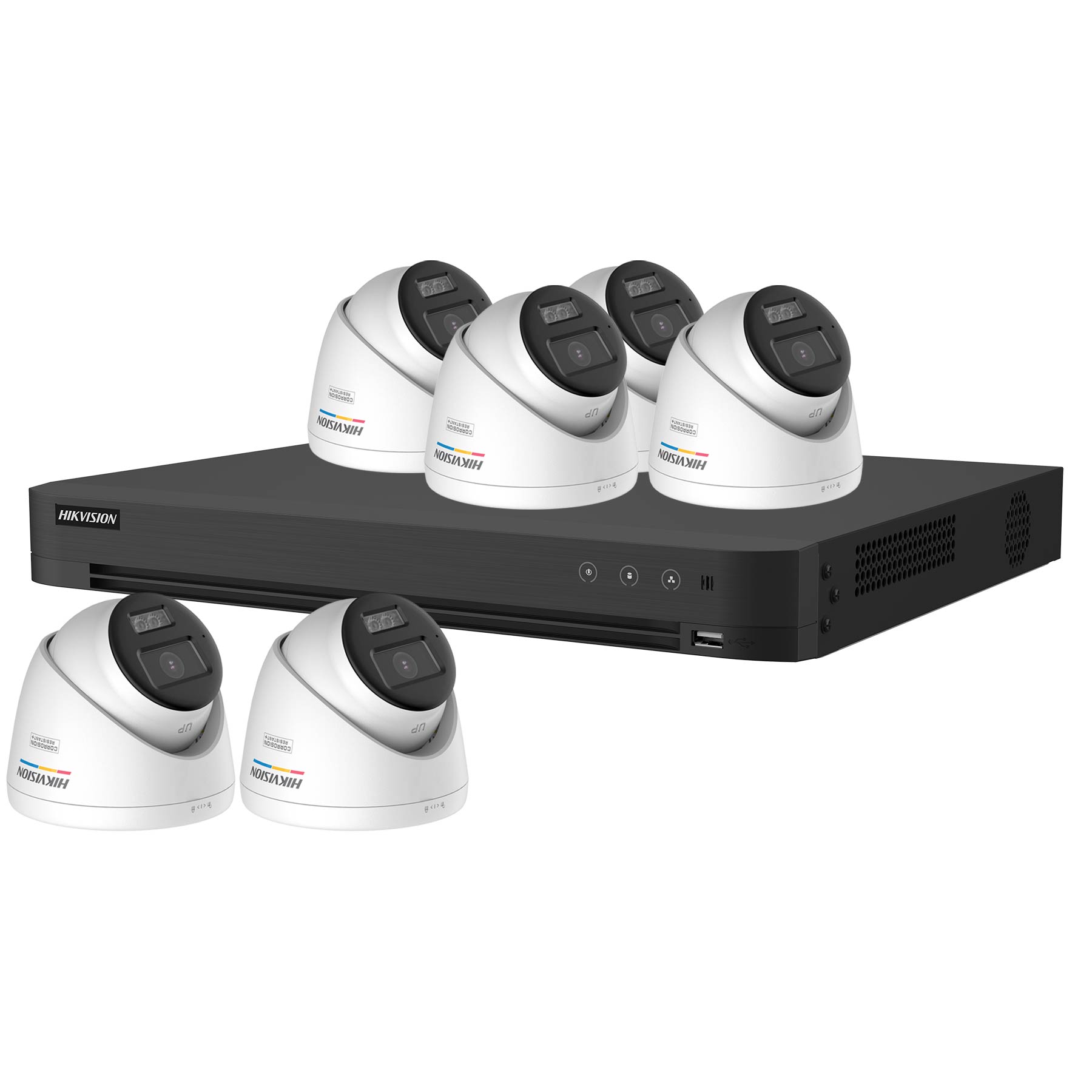

Hikvision 5MP 6-Camera Smart Hybrid ColorVu PoC & AoC CCTV Kit (2.8mm Lens)

About the Hikvision 5MP 6-Camera ColorVu PoC CCTV Kit

Six DS-2CE72KF3T-LSYE 3K ColorVu Smart Hybrid Light turrets on the 8-channel iDS-7208HUHI-M2-PXT AcuSense PoC recorder, the mid-size kit for larger homes and small commercial premises where budget matters but colour night vision, audio, and single-cable installs are all still on the spec sheet. Every camera powers over its own coax direct from the DVR, and with the 8-channel PoC platform rated for eight AT cameras, two spare PoC channels are left for the follow-up positions that larger sites always seem to generate, with no extra power provision needed.

These cameras carry a specification that until recently belonged to the premium tier: F1.0 ColorVu optics rated at 0.0005 lux for colour after dark, true 130 dB WDR for glazed entrances and forecourts, and Smart Hybrid Light with 40 m of white light and 40 m of IR per camera, so covert perimeter coverage and visible deterrent lighting can run side by side on the same system. The 3K sensor at 2960 × 1665 delivers a genuine detail advantage over the 4MP systems this kit competes with, and built-in microphones record synchronised audio over the coax on all six channels. IP67 and NEMA 4X equivalent housings handle exposed and coastal sites.

The M2 recorder brings the storage and analytics of the bigger kits: 3K encoding at 12 fps on all channels, twin SATA bays at up to 12 TB each, H.265 Pro+ compression, AcuSense human and vehicle classification on every analogue channel, up to 8-channel advanced perimeter protection, 4-channel facial recognition, and 8-channel AcuSearch for fast targeted playback. Hik-Connect covers remote viewing and alerts.

Up to 16 IP cameras at 8MP can join over the network for hybrid jobs. Supplied without hard drives, so add one or two surveillance-rated HDDs to suit retention. Also available with black cameras, with the 4K CVA range above it for maximum-resolution briefs.

Camera Features

• 3K 5MP imaging, 2960 × 1665, a clear step up from 4MP and 1080p
• 2.8 mm fixed lens, 105° horizontal field of view
• F1.0 ColorVu aperture for 24/7 colour down to 0.0005 lux
• Smart Hybrid Light, 40 m white light and 40 m IR
• True WDR at 130 dB for strong backlight scenes
• Built-in mic with audio over the coax (AoC)
• PoC powered (AT mode), one cable for video, audio and power
• IP67 and anti-corrosion housing, NEMA 4X equivalent

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 8-channel AcuSense PoC DVR, powers up to 8 AT cameras over the coax
• Records 3K/5MP at 12 fps on all channels, up to 8MP capable
• AcuSense human/vehicle filtering plus 8-ch perimeter protection
• 4-ch facial recognition and 8-ch AcuSearch smart playback
• H.265 Pro+ compression for efficient storage
• 2 SATA bays supporting up to 12 TB each
• Up to 16 IP channels at 8MP for hybrid expansion
• Hik-Connect app for remote view, playback and alerts

DVR Spec

Manufacturers Spec Sheet (PDF)
