About the HiLook 8MP 4-Camera IP CCTV Kit

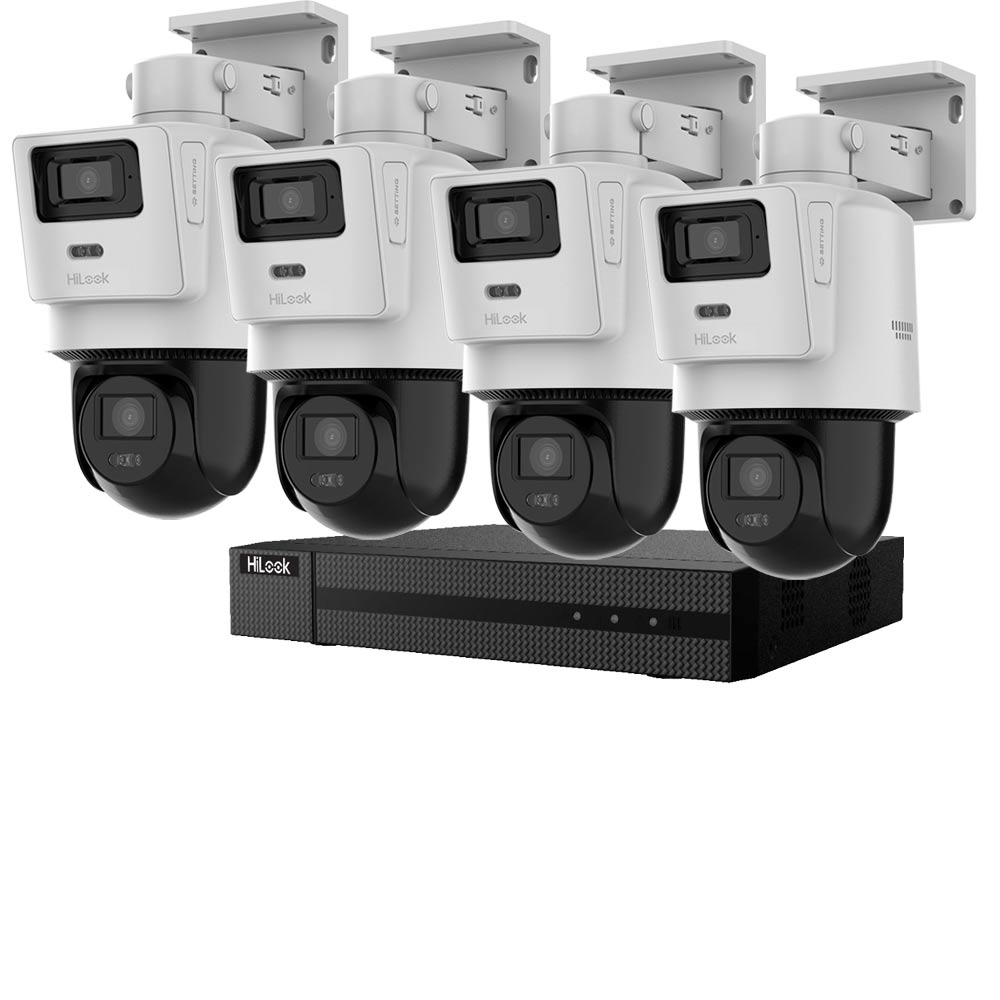

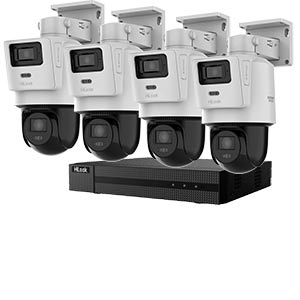

This HiLook by Hikvision kit brings together four PTZ-N2D400M-DE-14 4MP TandemVu IP pan/tilt cameras and one NVR-108MH-C-8P 8-channel PoE NVR to deliver wide-area coverage, high detail and efficient installation. TandemVu means each camera houses two lenses - a fixed wide-angle overview plus a pan/tilt lens - so each camera provides dual video feeds for enhanced monitoring.
Important: because each TandemVu camera outputs two separate video feeds (overview + pan/tilt), each camera uses two channels on the NVR. With four cameras in this kit you’ll use all eight channels on the NVR-108MH-C-8P - fully utilising the NVR’s channel capacity while only installing four physical camera bodies and a single PoE cable per camera.
The PTZ-N2D400M-DE-14 cameras record at 4MP resolution for crisp imaging and use Smart Hybrid Light to maintain colour footage when motion is detected, switching intelligently between IR and warm light. Human/vehicle classification helps reduce false alerts, while the pan/tilt mechanism supports Auto Tracking Lite - allowing the camera to automatically follow movement for improved coverage and easier evidence review. With an IP66 weather rating they are built to perform year-round outdoors.
The NVR-108MH-C-8P features eight built-in PoE ports for true plug-and-play operation, supports up to 8MP camera inputs, and uses H.265+ compression to maximise storage efficiency. Connect via HDMI or VGA for local viewing and use the HiLookVision or Hik-Connect mobile app for remote access, playback and export. The result is a professional-grade CCTV system designed to provide continuous recording and easy control across multiple zones.
Camera Features
- 4MP resolution for sharp, detailed video
- TandemVu dual-lens design - overview + pan/tilt view
- Fixed Channel 2.8mm lens horizontal field of view: 94°
- PT Channel 8mm lens horizontal field of view: 44°
- Auto Tracking Lite intelligently follows moving subjects
- Smart Hybrid Light - colour-at-night imaging
- Human and vehicle classification reduces false alarms
- IP66-rated for reliable outdoor operation
- Single PoE cable per camera for simple installation
Camera Spec
Manufacturers Spec Sheet (PDF)
NVR Features
- 8-channel NVR with built-in 8 PoE ports
- Supports up to 8MP resolution inputs
- H.265+ compression for efficient recording
- HDMI and VGA video output options
- Compatible with HiLookVision and Hik-Connect apps
- Plug-and-play setup with automatic camera detection
- Compact, quiet design ideal for small installations
NVR Spec
Manufacturers Spec Sheet (PDF)
What's included
- 1 × NVR-108MH-C-8P 8 Channel NVR with 8 PoE Ports
- 4 × PTZ-N2D400M-DE-14 4MP TandemVu IP Cameras
For complete technical details please refer to the individual product pages below:
